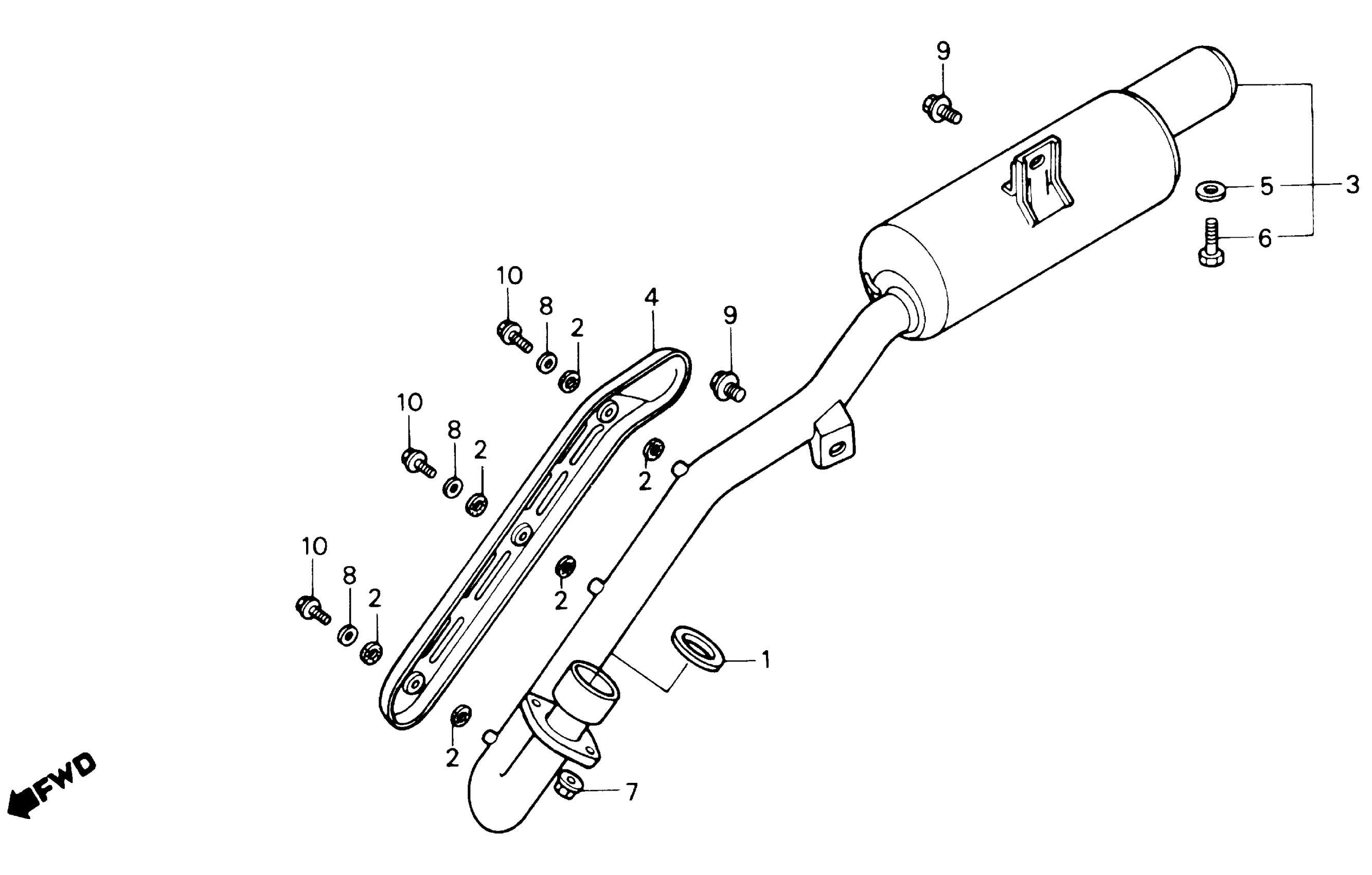

Honda TRX125A (87) FOURTRAX 125, JPN, VIN# JH3TE050-HK200019 TO JH3TE050-HK230880 MUFFLER Diagram

GASKET, EX. PIPE

18291-MN5-650

$3.77

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

GASKET, PROTECTOR

18292-167-890

$1.88

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

MUFFLER, EX.

18300-HC3-000

Unavailable

PROTECTOR, EX. PIPE

18321-HC3-000

Unavailable

WASHER, PLAIN (10MM)

90508-VM6-003

Unavailable

BOLT, HEX. (10X12) This part replaces 92000-10012-0G.

92101-10012-0G

Unavailable

BOLT, HEX. (10X12)

92101-10012-0G

Unavailable

NUT, FLANGE (6MM)

94050-06020

$1.84

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

BOLT, FLANGE (10X16)

95701-10016-08

$2.25

BOLT, FLANGE (6X10) This part replaces 96000-06010-02.

96001-06010-02

$1.54

BOLT, FLANGE (6X10)

96001-06010-02

$1.54
