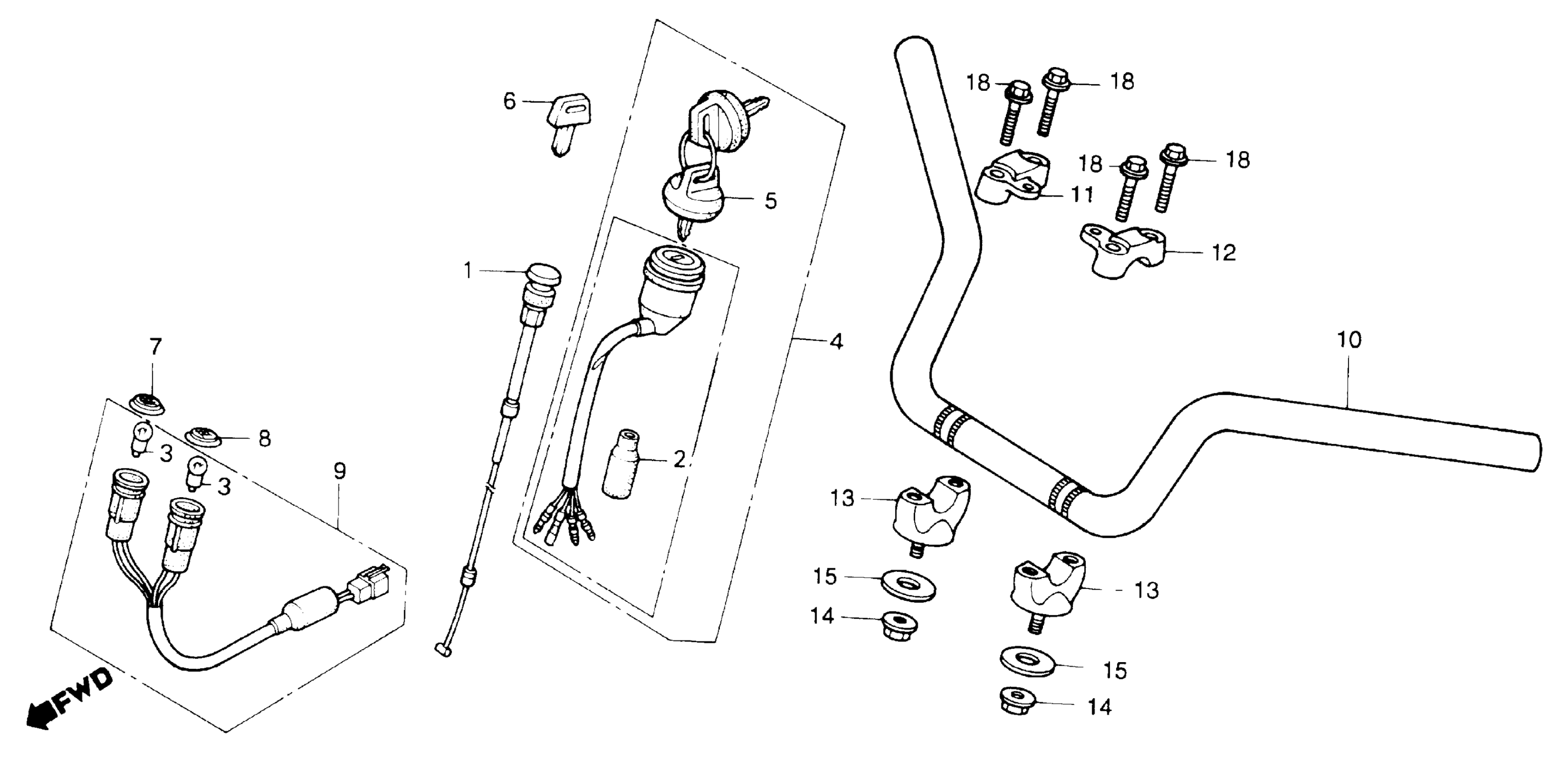

Honda TRX125A (87) FOURTRAX 125, JPN, VIN# JH3TE050-HK200019 TO JH3TE050-HK230880 HANDLEBAR Diagram

CABLE, CHOKE

17950-HC3-000

Unavailable

COVER, CONNECTOR (NOT AVAILABLE)

32108-355-000

Unavailable

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

LOCK SET This part replaces 35010-HC3-010.

35010-HC3-030

Unavailable

LOCK SET This part replaces 35010-HC3-020.

35010-HC3-030

Unavailable

LOCK SET

35010-HC3-030

Unavailable

CAP, COMBINATION SWITCH KEY

35113-VM6-007

Unavailable

KEY,BLANK (NO.1) | (Optional). This part replaces 35121-086-811.

35121-GW0-731

$9.44

KEY,BLANK (NO.2) | (Optional). This part replaces 35122-086-811.

35122-GW0-731

Unavailable

LENS, NEUTRAL INDICATOR

37571-HC3-005

Unavailable

LENS, REVERSE INDICATOR

37602-HC0-000

Unavailable

SOCKET, NEUTRAL REVERSE INDICATOR

38402-HC3-000

Unavailable

HANDLEBAR

53100-HC3-000

Unavailable

HOLDER, R. HANDLE (UPPER)

53111-HC3-000

$18.84

HOLDER, L. HANDLE (UPPER)

53121-HC3-000

$18.84

HOLDER, HANDLE (LOWER)

53130-HB3-770

$21.17

NUT, U (10MM)

90304-GE8-003

$3.67

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

WASHER, PLAIN (10.3MM) This part replaces 90551-178-000.

90527-230-000

$1.95

BOLT, FLANGE (8X35) This part replaces 95700-08035-08.

95701-08035-08

$1.49

BOLT, FLANGE (8X35)

95701-08035-08

$1.49
