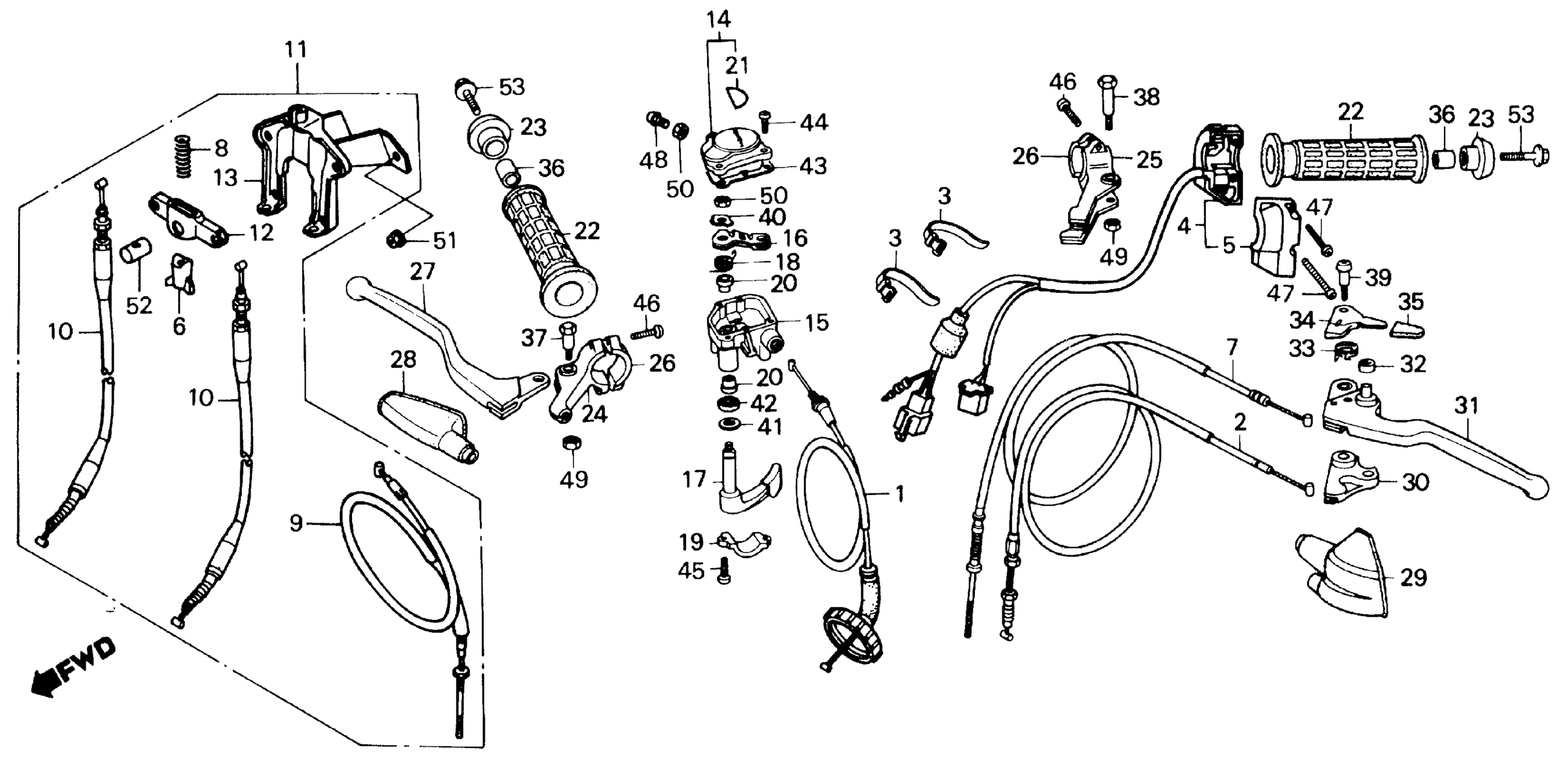

Honda TRX125A (87) FOURTRAX 125, JPN, VIN# JH3TE050-HK200019 TO JH3TE050-HK230880 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE SET, THROTTLE (NOT AVAILABLE)

17920-HC3-305

Unavailable

2

CABLE, REVERSE ASSIST (NOT AVAILABLE)

22880-HC3-000

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.16

4

SWITCH ASSY., LIGHTING ENGINE STARTER This part replaces 35200-HC3-003.

35200-HC3-013

Unavailable

4

SWITCH ASSY., LIGHTING ENGINE STARTER

35200-HC3-013

Unavailable

5

COVER, SWITCH

35201-HB7-671

$12.37

6

NUT, BRAKE ADJUSTING

43459-HB2-000

$10.18

7

CABLE, HANDLE BRAKE

43460-HC3-000

Unavailable

8

SPRING B, BRAKE ROD

43468-VM6-680

$2.71

9

CABLE, FR. FIRST BRAKE

45450-HC3-000

Unavailable

10

CABLE, FR. SECOND BRAKE

45460-HC3-000

Unavailable

11

EQUALIZER ASSY., RR. BRAKE

47600-HC3-000

Unavailable

12

PLATE, EQUALIZER

47610-HB2-000

$15.59

13

BODY, EQUALIZER

47620-HC3-000

Unavailable

14

COVER ASSY., THROTTLE CASE (NOT AVAILABLE)

53140-HC3-000

Unavailable

15

CASE, THROTTLE LEVER

53142-HC3-000

Unavailable

16

ARM, THROTTLE

53144-HA0-010

$7.36

17

LEVER, THROTTLE This part replaces 53145-HA0-000.

53145-HA0-770

$21.43

17

LEVER, THROTTLE

53145-HA0-770

$21.43

18

SPRING, THROTTLE RETURN

53146-HA0-000

$4.31

19

HOLDER, THROTTLE CASE

53147-HC3-000

$8.50

20

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.64

21

MARK, THROTTLE CAUTION

53155-VM6-680

Unavailable

22

GRIP, HANDLE

53165-958-010

$12.28

23

GUARD, HANDLEBAR END

53167-958-680

$6.11

24

BRACKET, R. CONTROL LEVER

53171-VM6-680

Unavailable

25

BRACKET, BRAKE LEVER This part replaces 53172-HC3-000.

53172-HC3-010

Unavailable

25

BRACKET, BRAKE LEVER

53172-HC3-010

Unavailable

26

HOLDER, LEVER BRACKET

53173-958-000

$9.73

27

LEVER, R. HANDLEBAR

53175-HC3-000

$23.58

28

COVER, R. HANDLE LEVER (NOT AVAILABLE)

53176-VM6-000

Unavailable

29

COVER, L. HANDLEBAR

53177-HA0-680

$10.75

30

ARM, REVERSE ASSIST

53179-VM6-000

$17.54

31

LEVER, RR. BRAKE

53180-HC3-000

Unavailable

32

CAP, REVERSE PIN

53187-VM6-000

$3.71

33

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.31

34

LEVER, PARKING LOCK

53192-HA0-770

Unavailable

35

CAP, PARKING LEVER

53193-HA0-770

$5.87

36

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.80

37

BOLT, HANDLE LEVER PIVOT

90113-HA0-770

$3.50

38

BOLT, HANDLE LEVER PIVOT

90114-HA0-770

$2.37

39

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.80

40

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

41

WASHER (9X20)

90504-HA0-000

$2.10

42

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.74

42

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.74

43

GASKET, THROTTLE CASE

91532-HA0-020

$5.87

44

SCREW, PAN (4X16)

93500-04016-0G

$0.76

45

SCREW, PAN (5X14)

93500-05014-0G

$3.40

46

SCREW, PAN (5X18)

93500-05018-0A

$0.76

47

SCREW, PAN (5X25)

93500-05025-0G

$0.69

48

SCREW, PAN (6X32)

93500-06032-0A

$1.15

49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

49

NUT, HEX. (6MM)

94001-06200-0S

$1.21

50

NUT, HEX. (6MM)

94002-06000-0S

$1.21

51

NUT, FLANGE (6MM)

94050-06080

$0.60

52

JOINT, BRAKE ARM

95015-32001

$0.87

53

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.66

53

BOLT, FLANGE (6X25)

95701-06025-07

$1.66
