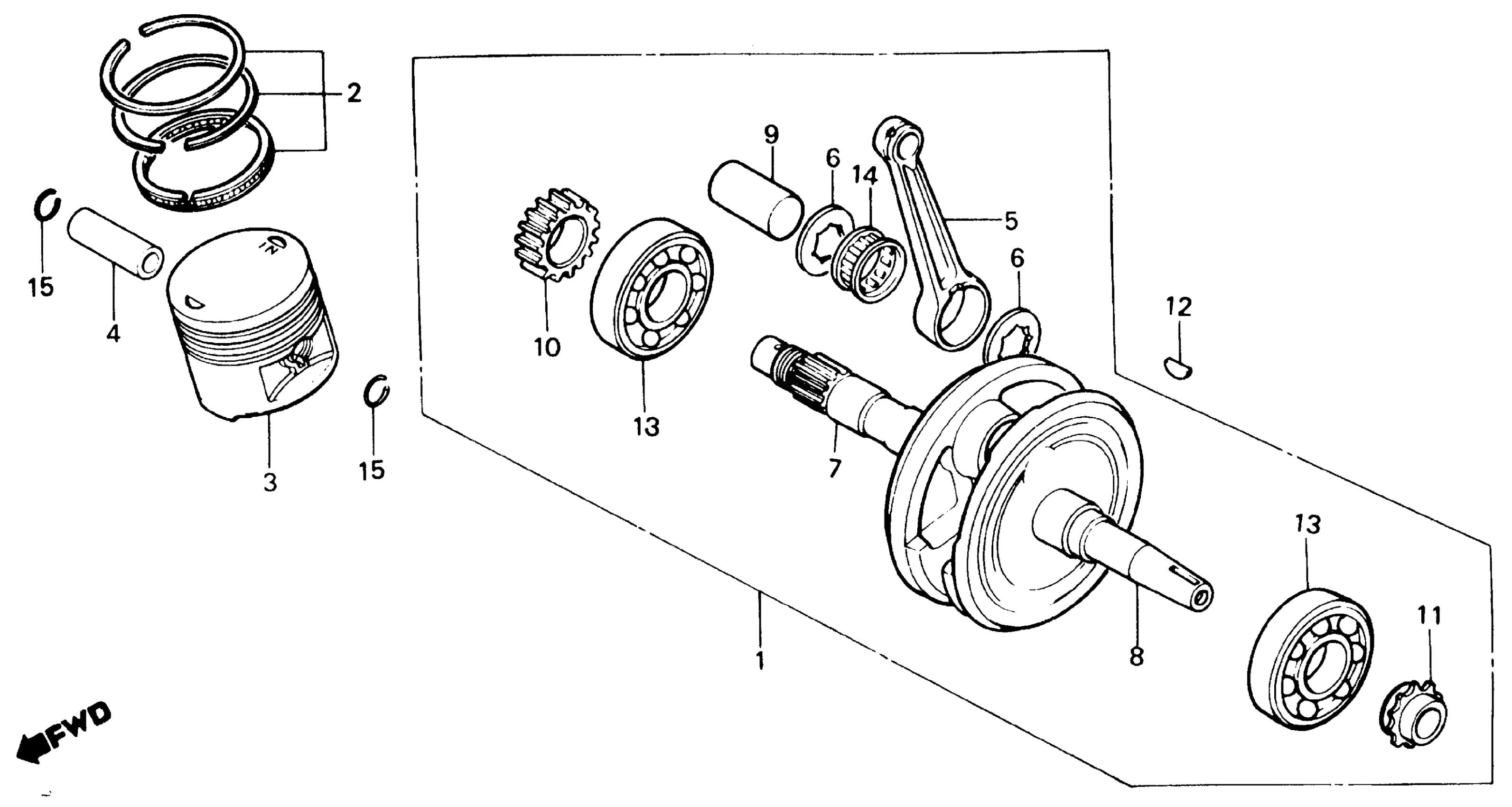

Honda TRX125A (87) FOURTRAX 125, JPN, VIN# JH3TE050-HK200019 TO JH3TE050-HK230880 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-HC3-000

Unavailable

2

RING SET, PISTON (STD) | (Optional).

13011-HB6-305

Unavailable

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13012-HB6-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13013-HB6-305

Unavailable

2

RING SET, PISTON (0.75) | (Optional).

13014-HB6-305

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE) | (Optional).

13015-HB6-305

Unavailable

3

PISTON (STD)

13101-HB6-003

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-HB6-305

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-HB6-305

Unavailable

3

PISTON (0.75) | (Optional).

13104-HB6-305

Unavailable

3

PISTON (1.00) | (Optional).

13105-HB6-305

Unavailable

4

PIN, PISTON This part replaces 13111-MA6-000.

13111-MJ6-000

Unavailable

4

PIN, PISTON

13111-MJ6-000

Unavailable

5

ROD, CONNECTING

13201-HB6-300

Unavailable

6

PLATE, CONNECTING ROD SIDE

13202-HB6-003

Unavailable

7

CRANKSHAFT, R.

13311-HC3-300

Unavailable

8

CRANKSHAFT, L.

13321-HB6-310

Unavailable

9

PIN, CRANK (NOT AVAILABLE)

13381-HB6-300

Unavailable

10

GEAR, OIL PUMP DRIVE (22T)

13411-HB6-300

Unavailable

11

SPROCKET, TIMING

14311-HB6-300

Unavailable

12

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

12

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

13

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-003.

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-013.

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-014.

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-018.

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

14

BEARING, NEEDLE (28X36X13.8)

91101-KB4-671

Unavailable

14

BEARING, NEEDLE (28X36X13.8)

91102-KB4-671

Unavailable

14

BEARING, NEEDLE (28X36X13.8)

91103-KB4-671

Unavailable

15

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
