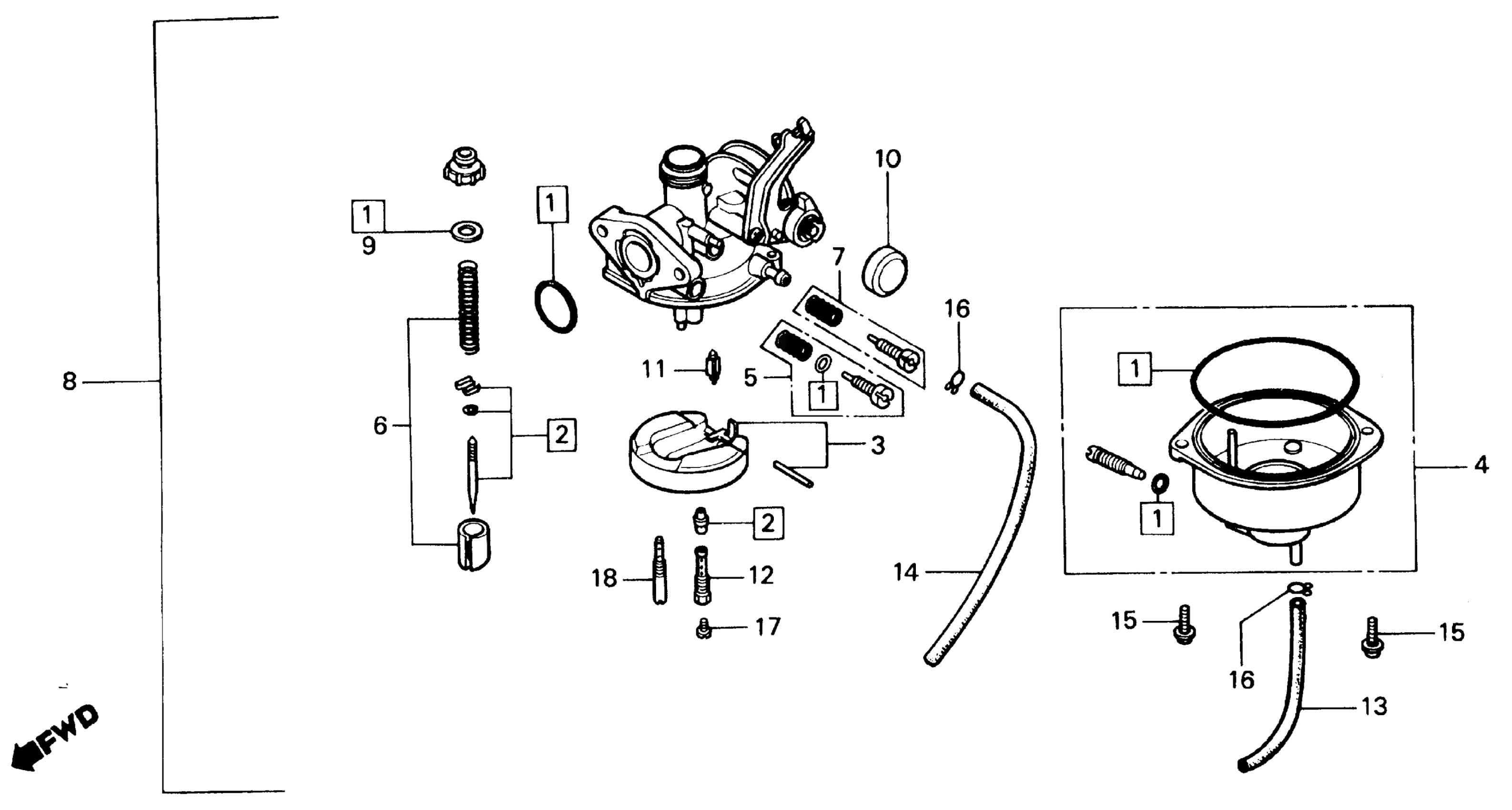

Honda TRX125A (87) FOURTRAX 125, JPN, VIN# JH3TE050-HK200019 TO JH3TE050-HK230880 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HC3-004

Unavailable

2

NEEDLE SET, JET

16012-HC3-004

Unavailable

3

FLOAT SET

16013-883-005

$29.08

4

CHAMBER SET, FLOAT This part replaces 16015-HC3-004.

16045-HB6-003

Unavailable

5

SCREW SET This part replaces 16016-957-771.

16016-957-003

Unavailable

6

VALVE SET, THROTTLE | Use up to Engine SN PB85B A This part replaces 16022-HB6-003.

16022-HB6-013

Unavailable

6

VALVE SET, THROTTLE | Use up to Engine SN PB85B A

16022-HB6-013

Unavailable

6

VALVE SET, THROTTLE | Use from Engine SN PB85B B

16022-HC3-014

Unavailable

7

SCREW SET B | Use up to Engine SN PB85B A

16028-GC8-004

$16.35

7

SCREW SET B | Use from Engine SN PB85B B

16028-HC3-004

Unavailable

8

CARBURETOR ASSY. | Use up to Engine SN 5010841 This part replaces 16100-HC3-004.

16100-HC3-034

Unavailable

8

CARBURETOR ASSY. This part replaces 16100-HC3-014.

16100-HC3-034

Unavailable

8

CARBURETOR ASSY. This part replaces 16100-HC3-024.

16100-HC3-034

Unavailable

8

CARBURETOR ASSY.

16100-HC3-034

Unavailable

9

GASKET, TOP

16110-KN4-651

$7.69

10

CAP, CHOKE LEVER DUST

16148-141-881

$4.75

11

VALVE, FLOAT

16155-168-681

Unavailable

12

HOLDER, NEEDLE JET

16165-HB6-003

Unavailable

13

TUBE, FUEL This part replaces 16199-KG4-003.

16199-KG4-405

$9.49

13

PIPE, OVERFLOW

16199-KG4-405

$9.49

14

TUBE, AIR VENT

16199-943-003

Unavailable

15

SCREW-WASHER (4X14)

93892-04014-08

$1.49

16

CLIP, TUBE (B6.5)

95002-02650

$1.49

17

JET, MAIN (#88) | (Optional). This part replaces 99101-116-0880.

99102-GHB-0880

$6.57

17

JET, MAIN (#92) This part replaces 99101-116-0920.

99102-GHB-0920

$10.41

17

JET, MAIN (#92)

99102-GHB-0920

$10.41

18

JET COMP,SLOW #35 This part replaces 99103-943-0350.

99103-165-0350

$20.41
