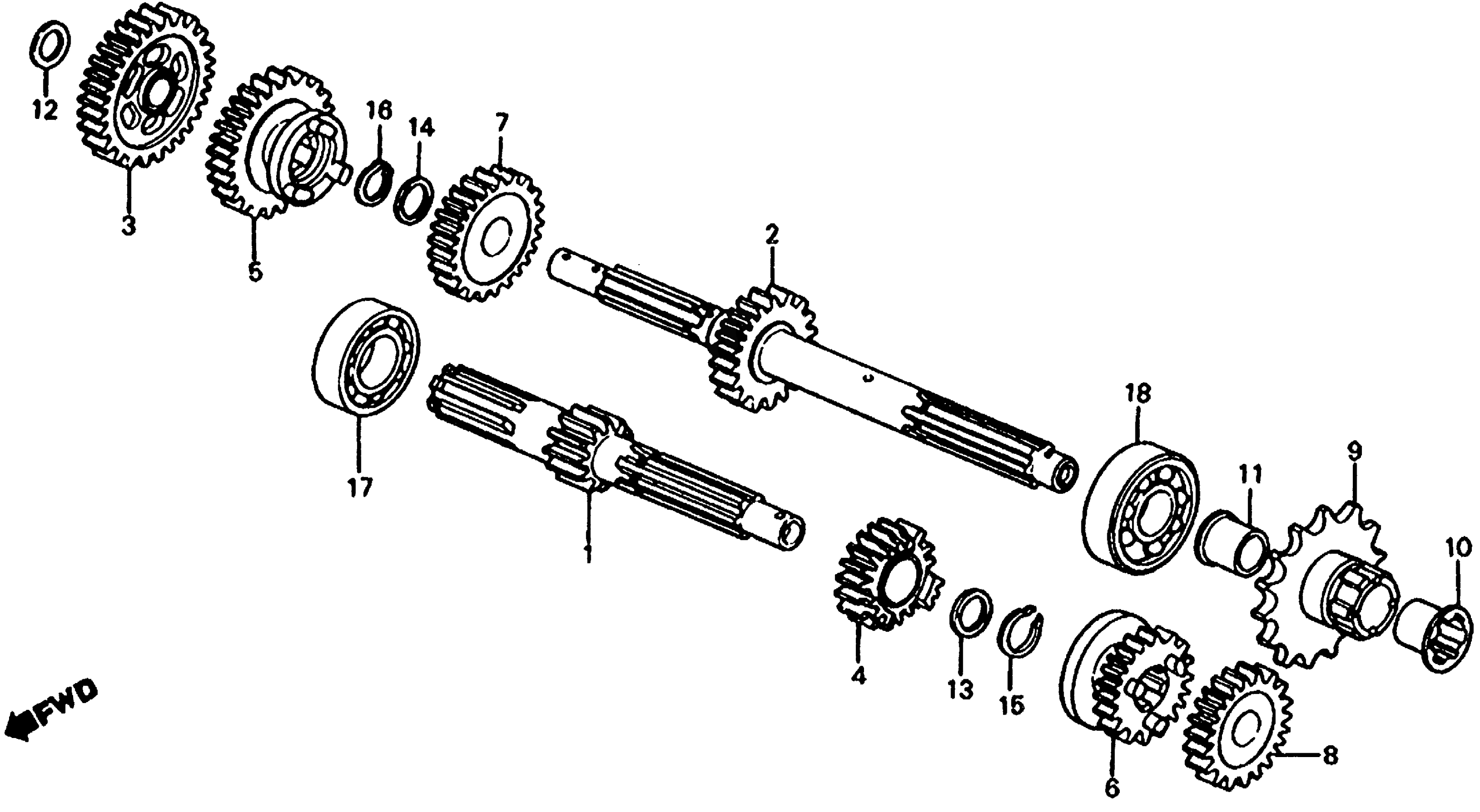

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23211-968-000

Unavailable

COUNTERSHAFT

23220-VM6-000

Unavailable

GEAR, COUNTERSHAFT LOW

23421-968-000

Unavailable

GEAR, MAINSHAFT SECOND

23431-968-000

Unavailable

GEAR, COUNTERSHAFT SECOND (NOT AVAILABLE)

23441-968-000

Unavailable

GEAR, MAINSHAFT THIRD (21T)

23451-968-000

Unavailable

GEAR, COUNTERSHAFT THIRD (25T)

23461-968-000

Unavailable

GEAR, MAINSHAFT TOP (24T)

23471-968-000

Unavailable

SPROCKET, DRIVE (13T)

23801-VM6-000

Unavailable

BUSH B, DRIVE SPROCKET This part replaces 23802-VM6-000.

23807-459-770

Unavailable

BUSH B, DRIVE SPROCKET

23807-459-770

Unavailable

BUSH B, DRIVE SPROCKET

23807-459-770

Unavailable

WASHER, THRUST (14MM)

90451-121-000

$1.87

WASHER, SPLINE (18MM)

90461-028-000

Unavailable

WASHER, SPLINE (20MM)

90461-459-010

$5.54

CIRCLIP (18MM)

90601-030-000

$1.77

CIRCLIP (OUTER) (20MM)

90601-459-000

$2.92

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
