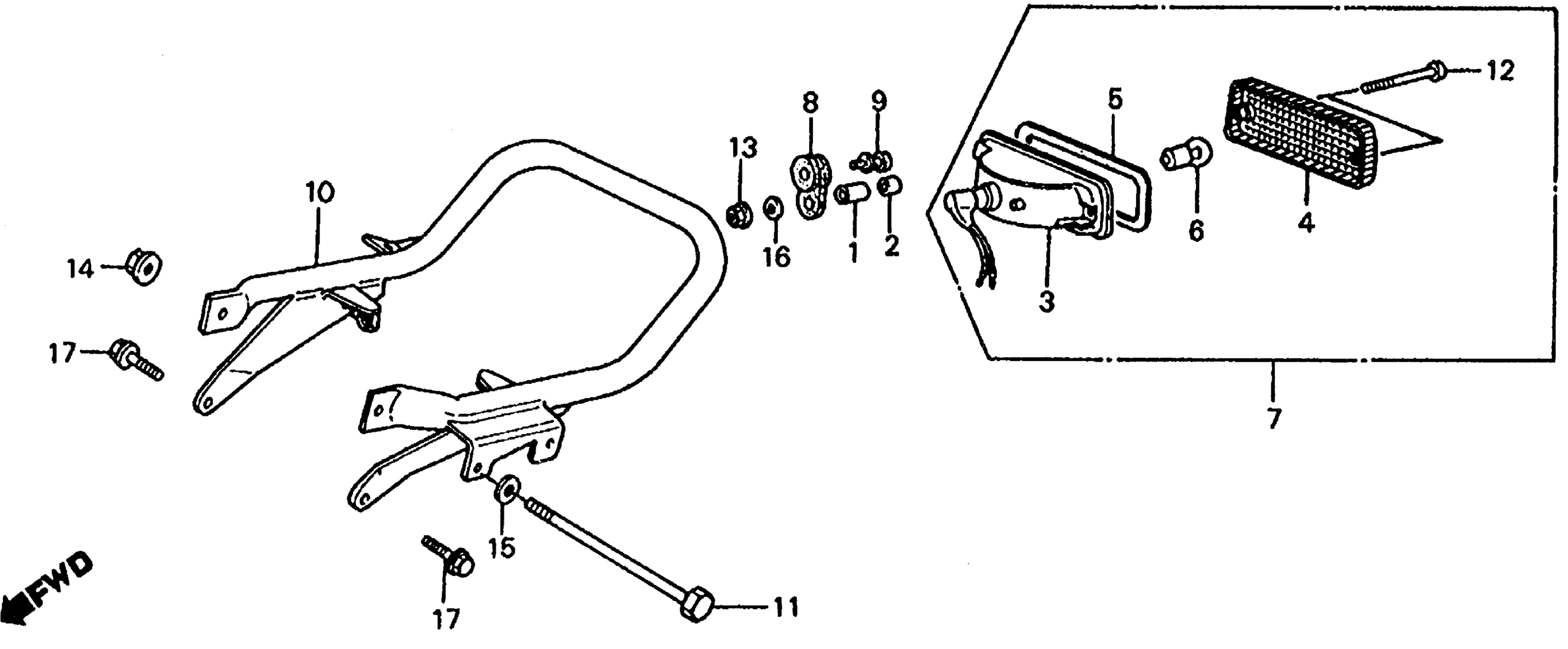

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 TAILLIGHT + CARRIER Diagram

COLLAR

17207-MC7-000

Unavailable

COLLAR, TAILLIGHT (NOT AVAILABLE)

17207-VM6-000

Unavailable

HOUSING, TAILLIGHT

33300-958-013

Unavailable

LENS, TAILLIGHT

33302-958-013

$19.40

GASKET, TAILLIGHT LENS

33303-958-003

Unavailable

BULB (12V5W) (STANLEY) (NOT AVAILABLE) This part replaces 33310-594-601.

34910-504-003

Unavailable

BULB (12V5W) (STANLEY) (NOT AVAILABLE) This part replaces 34905-965-003.

34910-504-003

Unavailable

BULB (12V5W) (STANLEY) (NOT AVAILABLE)

34910-504-003

Unavailable

TAILLIGHT ASSY. (NOT AVAILABLE) This part replaces 33700-VM6-680.

33700-HB3-000

Unavailable

RUBBER, TAILLIGHT SETTING

33715-VM6-000

$6.21

PIN, TAILLIGHT SETTING

33716-964-000

$3.81

CARRIER (NOT AVAILABLE)

81200-VM6-680

Unavailable

BOLT, HEX. (10X180)

90196-918-000

Unavailable

SCREW, PAN (4X50)

93500-04050-0A

$1.49

NUT, FLANGE (4MM)

94050-04080

$1.49

NUT, FLANGE (10MM)

94050-10080

$3.24

WASHER, PLAIN (10MM)

94101-10800

$1.89

WASHER, PLAIN (4MM)

94103-04800

$1.49

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

BOLT, FLANGE (8X12)

95701-08012-00

$1.49
