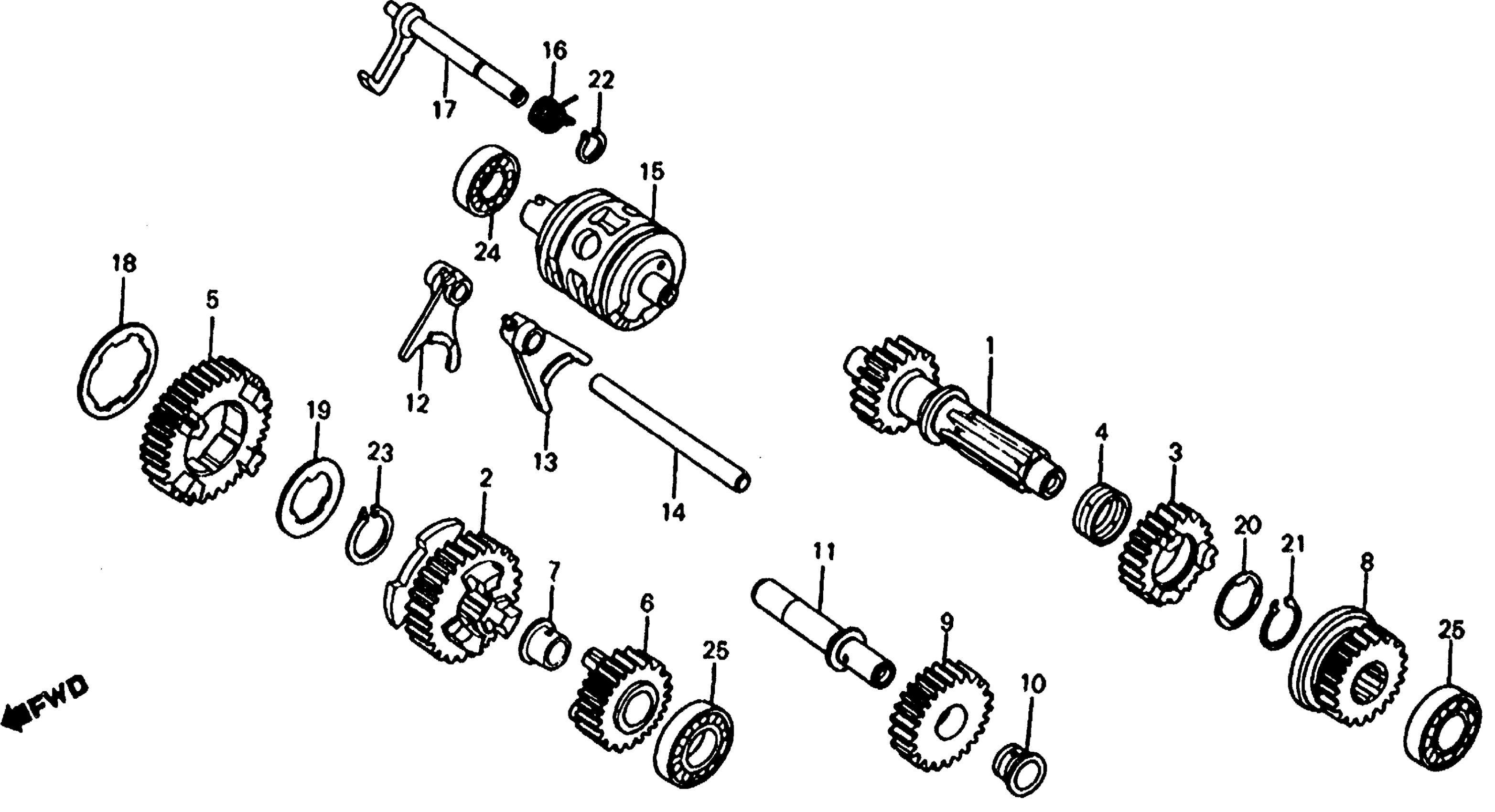

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 SUB-TRANSMISSION Diagram

#

Description
Price

1

SHAFT, REDUCTION

23911-VM6-000

Unavailable

2

GEAR, ULTRA LOW DRIVE (27T)

23921-VM6-010

Unavailable

3

GEAR, ULTRA LOW DRIVEN (21T)

23930-VM6-010

Unavailable

4

BUSH (20MM) (NOT AVAILABLE)

23932-VM6-300

Unavailable

5

GEAR, HIGH DRIVE (32T) This part replaces 23941-VM6-000.

23941-VM6-010

Unavailable

5

GEAR, HIGH DRIVE (32T)

23941-VM6-010

Unavailable

6

GEAR, REVERSE DRIVE LOW (21T) (NOT AVAILABLE)

23950-VM6-010

Unavailable

7

BUSH (15MM) (NOT AVAILABLE)

23952-VM6-000

Unavailable

8

GEAR, REVERSE DRIVEN (21T) (NOT AVAILABLE)

23961-VM6-010

$48.39

9

GEAR, REVERSE IDLE (23T) (NOT AVAILABLE)

23970-VM6-000

Unavailable

10

BUSH (15MM) (NOT AVAILABLE)

23972-VM6-000

Unavailable

11

SHAFT, REVERSE IDLE (NOT AVAILABLE)

23981-VM6-000

Unavailable

12

FORK, R. SUB-GEARSHIFT

24231-VM6-000

Unavailable

13

FORK, L. SUB-GEARSHIFT

24241-VM6-000

Unavailable

14

SHAFT, SUB-SHIFT FORK (NOT AVAILABLE)

24251-VM6-000

Unavailable

15

DRUM, SUB-GEARSHIFT (NOT AVAILABLE)

24302-VM6-000

Unavailable

16

SPRING, REVERSE STOPPER (NOT AVAILABLE)

24762-VM6-004

Unavailable

17

SHAFT, REVERSE STOPPER (NOT AVAILABLE)

24860-VM6-000

Unavailable

18

WASHER, SPLINE (30MM)

90401-968-000

$5.33

19

WASHER, SPLINE (20MM) (NOT AVAILABLE)

90455-958-680

Unavailable

20

WASHER, SPLINE (20MM)

90461-459-010

$5.54

21

CIRCLIP (OUTER) (20MM)

90601-459-000

$2.92

22

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

23

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

23

CIRCLIP, OUTER (20MM) This part replaces 94510-20120.

94510-20000

$1.49

24

BEARING, RADIAL BALL (6002)

96100-60020-00

$11.80

25

BEARING, RADIAL BALL (6202Z)

96120-62020-00

$11.02
