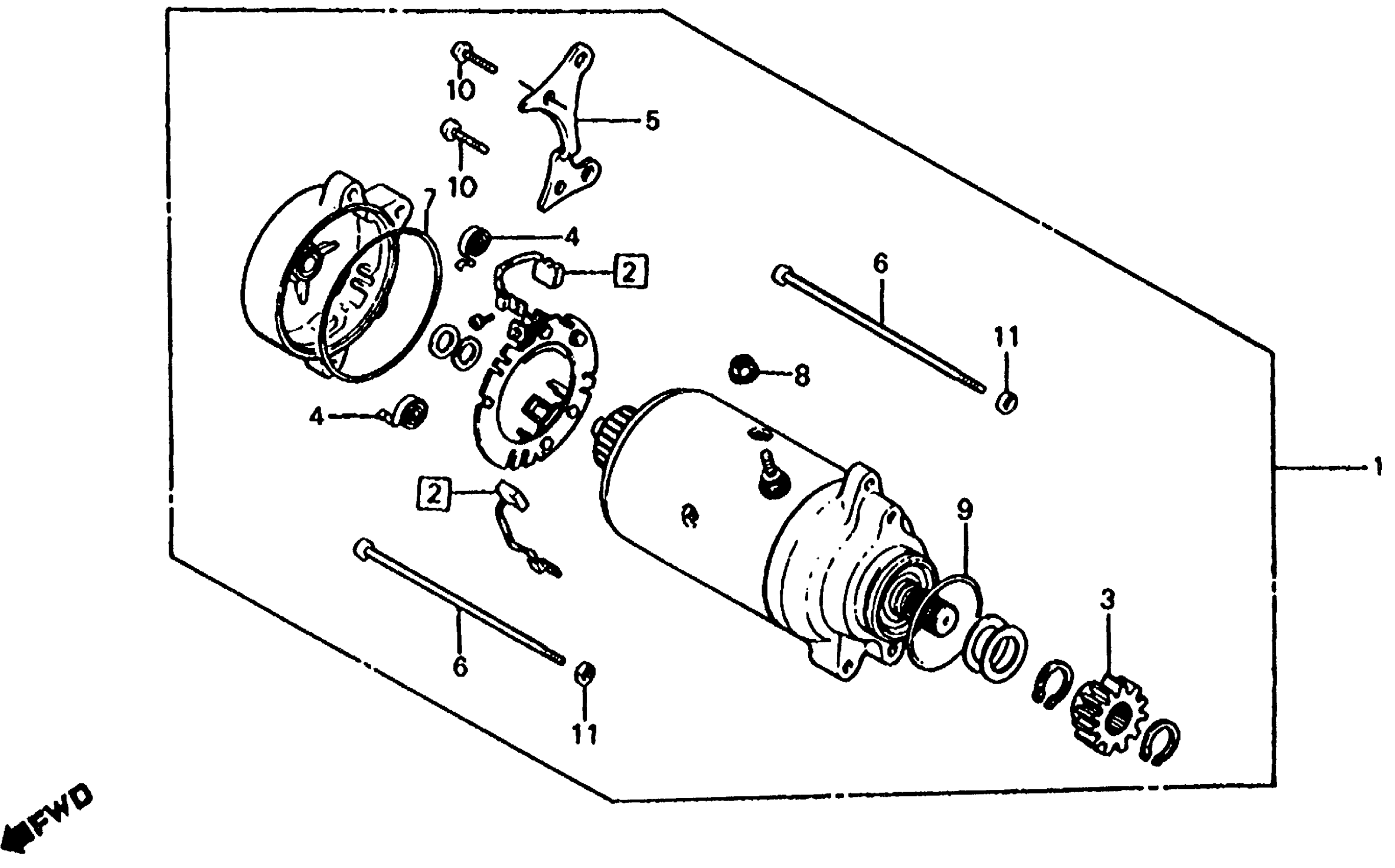

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 STARTER MOTOR Diagram

#

Description

Price

1

STARTER MOTOR ASSY. This part replaces 31200-968-003.

31200-968-405

Unavailable

2

BRUSH SET (MITSUBA)

31201-230-174

$21.88

3

GEAR, STARTER MOTOR (NOT AVAILABLE)

31201-968-003

Unavailable

4

SPRING, BRUSH This part replaces 31204-225-154.

31204-230-174

Unavailable

4

SPRING, BRUSH

31204-230-174

Unavailable

5

STAY, STARTER MOTOR (NOT AVAILABLE)

31204-968-003

Unavailable

6

BOLT, STARTER COVER (NOT AVAILABLE) This part replaces 31205-968-000.

31205-402-008

Unavailable

7

O-RING (60X1.4)

31206-402-008

Unavailable

8

NUT-WASHER (6MM)

90071-MB0-000

$1.88

9

O-RING (29.5X1.9) (NOT AVAILABLE)

91301-968-005

Unavailable

10

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.04

10

SCREW, PAN (6X16)

93500-06016-0A

$1.04

11

WASHER, SPRING (6MM)

94111-06000

$0.86
