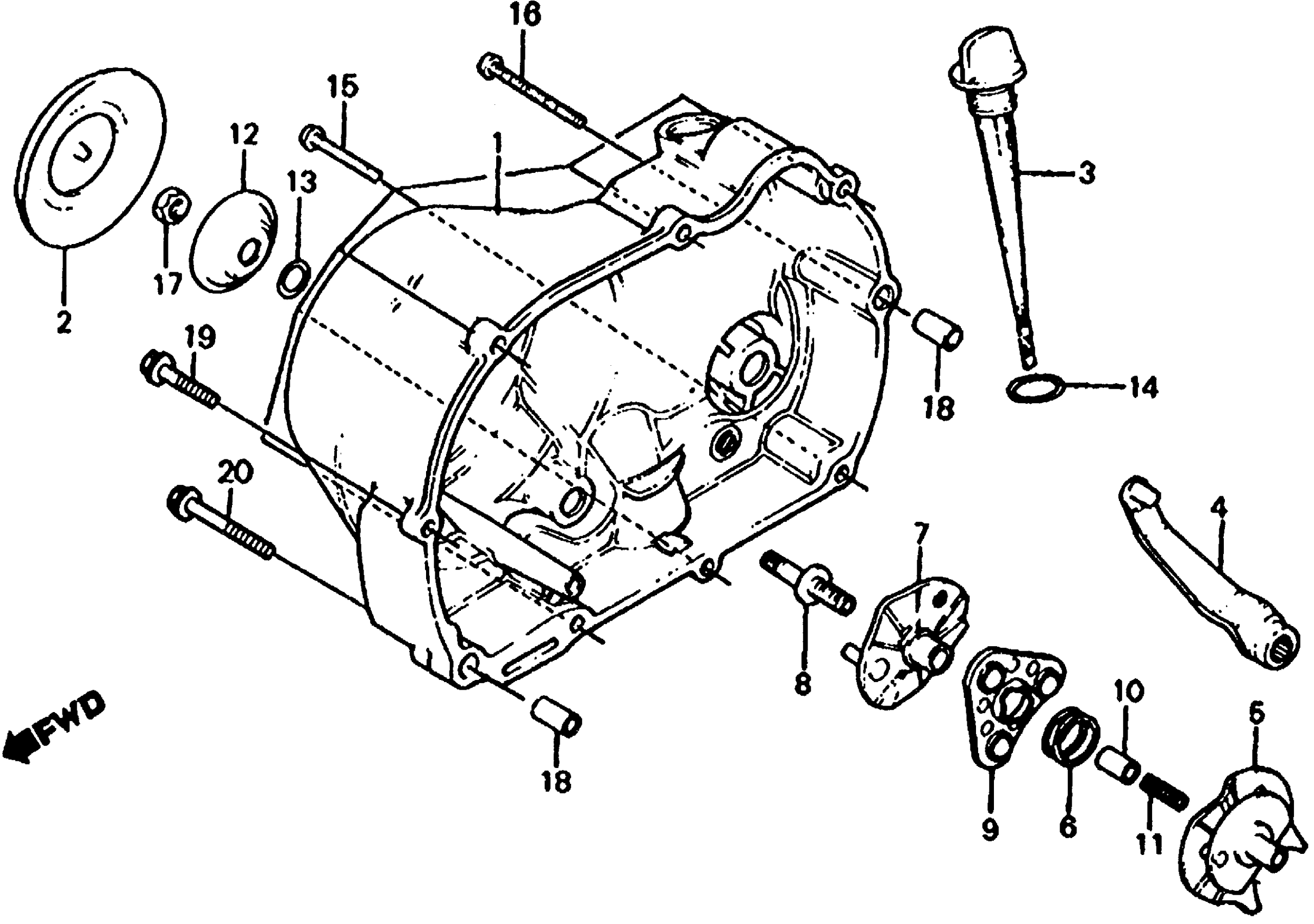

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-943-000

Unavailable

2

PROTECTOR, R. CRANKCASE COVER

11335-968-000

Unavailable

3

DIPSTICK, OIL

15650-459-020

Unavailable

4

LEVER, CLUTCH

22811-046-010

Unavailable

5

PLATE, CLUTCH CAM This part replaces 22820-918-010.

22820-918-020

$20.42

5

PLATE, CLUTCH CAM

22820-918-020

$20.42

6

SPRING, CAM PLATE SIDE

22825-046-000

$2.08

7

PLATE, CLUTCH LIFTER

22830-046-000

$10.64

8

BOLT, CLUTCH ADJUSTING This part replaces 22846-053-020.

22846-053-030

Unavailable

8

BOLT, CLUTCH ADJUSTING

22846-053-030

Unavailable

9

RETAINER, CLUTCH BALL

22860-046-000

$7.04

10

THROUGH, OIL This part replaces 25551-918-000.

25551-GEL-A80

$6.02

10

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$6.02

11

SPRING, OIL GUIDE

25555-046-000

Unavailable

12

WASHER, CLUTCH ADJUSTER

90485-102-701

Unavailable

13

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

13

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

14

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

14

O-RING (18X3)

91307-035-000

$2.92

15

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

15

SCREW, PAN (6X25)

93500-06025-0A

$1.49

16

SCREW, PAN (6X40)

93500-06040-0A

$1.49

17

NUT, HEX. (8MM)

94030-08000

$1.49

18

PIN A, DOWEL (10X16)

94301-10160

$2.28

19

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

19

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

20

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

20

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
