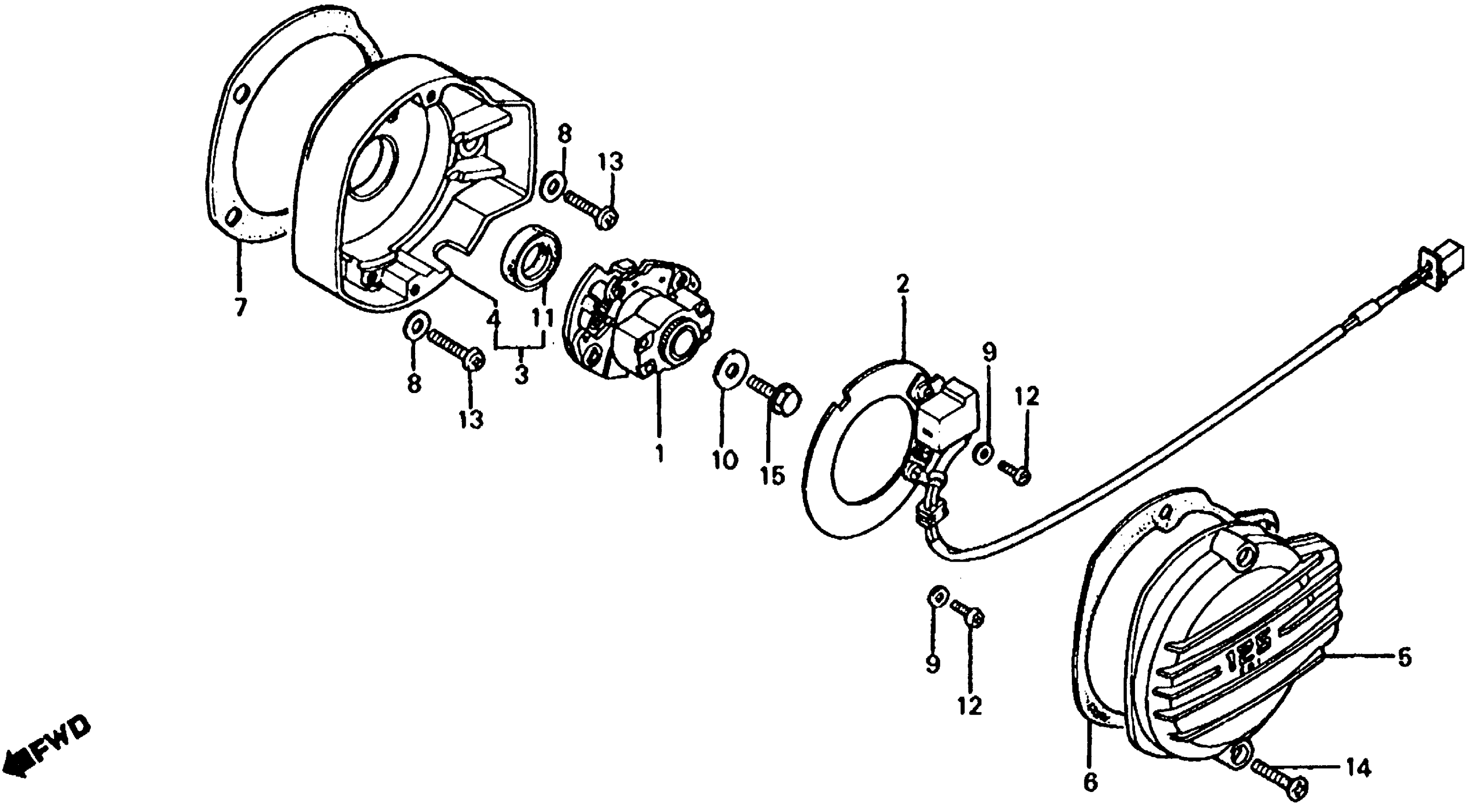

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 PULSE GENERATOR Diagram

#

Description
Price

1

ADVANCER ASSY., SPARK

30220-459-751

Unavailable

2

GENERATOR ASSY., PULSE (NOT AVAILABLE)

30300-VM6-000

Unavailable

3

BASE ASSY., PULSE GENERATOR (NOT AVAILABLE)

30360-968-000

Unavailable

4

BASE, PULSE GENERATOR (NOT AVAILABLE)

30361-121-740

Unavailable

5

COVER, PULSE GENERATOR (NOT AVAILABLE)

30371-968-000

Unavailable

6

GASKET This part replaces 30391-121-306.

30391-121-631

Unavailable

6

GASKET This part replaces 30391-121-630.

30391-121-631

Unavailable

6

GASKET This part replaces 30391-121-740.

30391-121-631

Unavailable

7

GASKET, POINT BASE This part replaces 30392-121-306.

30392-121-631

Unavailable

7

GASKET, POINT BASE This part replaces 30392-121-630.

30392-121-631

Unavailable

7

GASKET, POINT BASE This part replaces 30392-121-690.

30392-121-631

Unavailable

8

WASHER, SEALING (6MM)

90441-028-010

$2.92

9

WASHER (5MM)

90482-028-000

$2.09

10

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

11

OIL SEAL (13X22X5) This part replaces 91201-968-003.

91204-KE8-003

$3.12

11

OIL SEAL (13X22X5) This part replaces 91201-968-004.

91204-KE8-003

$3.12

11

OIL SEAL (13X22X5)

91204-KE8-003

$3.12

12

SCREW, PAN (5X10)

93500-05010-0A

$1.49

13

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

13

SCREW, PAN (6X16)

93500-06016-0A

$1.49

14

SCREW, OVAL (5X22)

93700-05022-0B

$1.49

15

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

15

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
