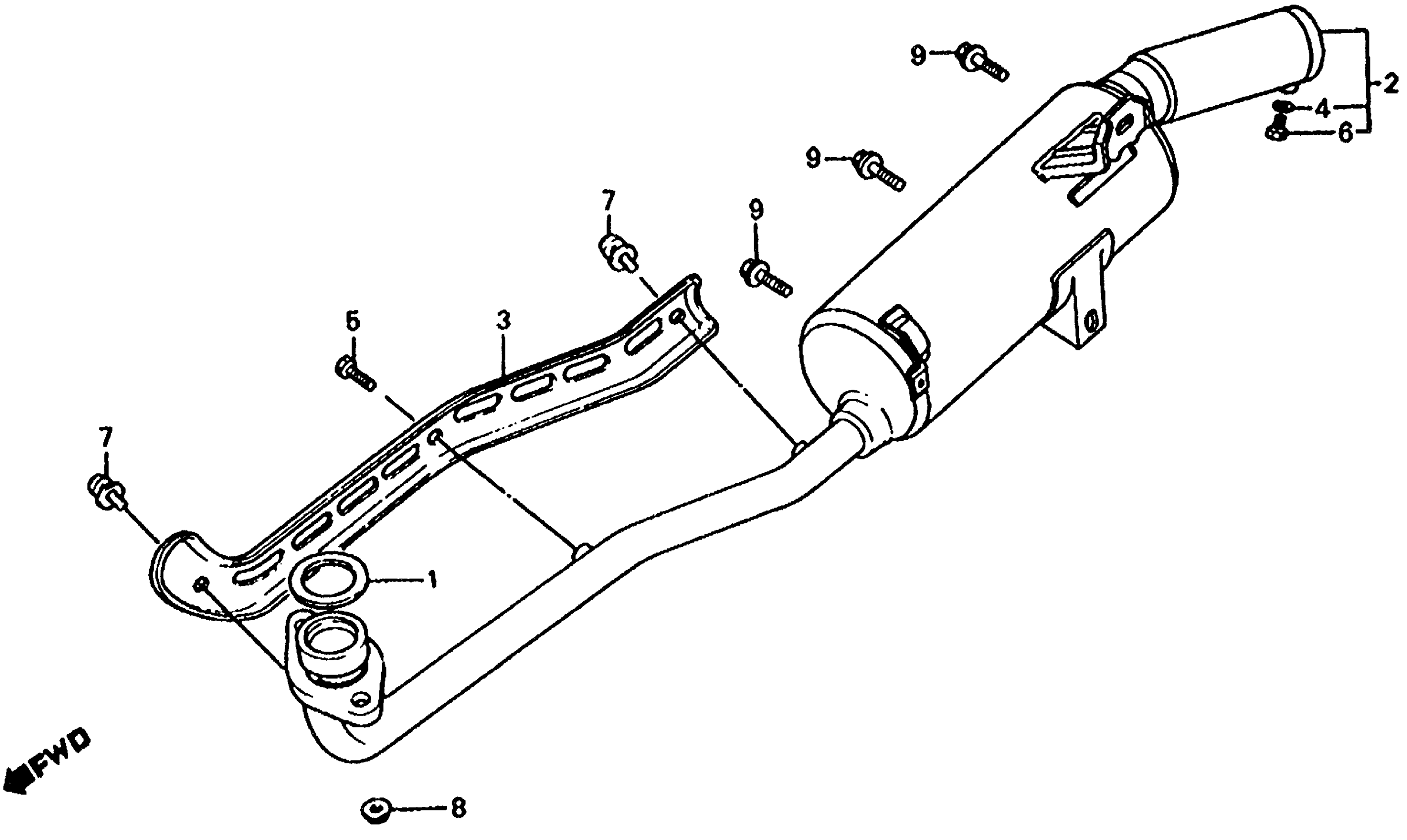

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 MUFFLER Diagram

#

Description

Price

1

GASKET, EX. PIPE

18291-HB2-900

$3.72

1

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

1

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

2

MUFFLER, EX. (NOT AVAILABLE)

18300-VM6-003

Unavailable

3

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18321-VM6-003

Unavailable

4

WASHER, PLAIN (10MM)

90508-VM6-003

Unavailable

5

BOLT, HEX. (6X8) This part replaces 92000-06008-0H.

92000-06008-08

Unavailable

5

BOLT, HEX. (6X8)

92000-06008-08

Unavailable

6

BOLT, HEX. (10X12) This part replaces 92000-10012-0G.

92101-10012-0G

Unavailable

6

BOLT, HEX. (10X12)

92101-10012-0G

Unavailable

7

SCREW-WASHER (6X10)

93891-06010-08

$1.49

8

NUT, FLANGE (6MM)

94050-06080

$1.49

9

BOLT, FLANGE (8X12) This part replaces 95700-08012-08.

95701-08012-08

$1.80

9

BOLT, FLANGE (8X12)

95701-08012-08

$1.80
