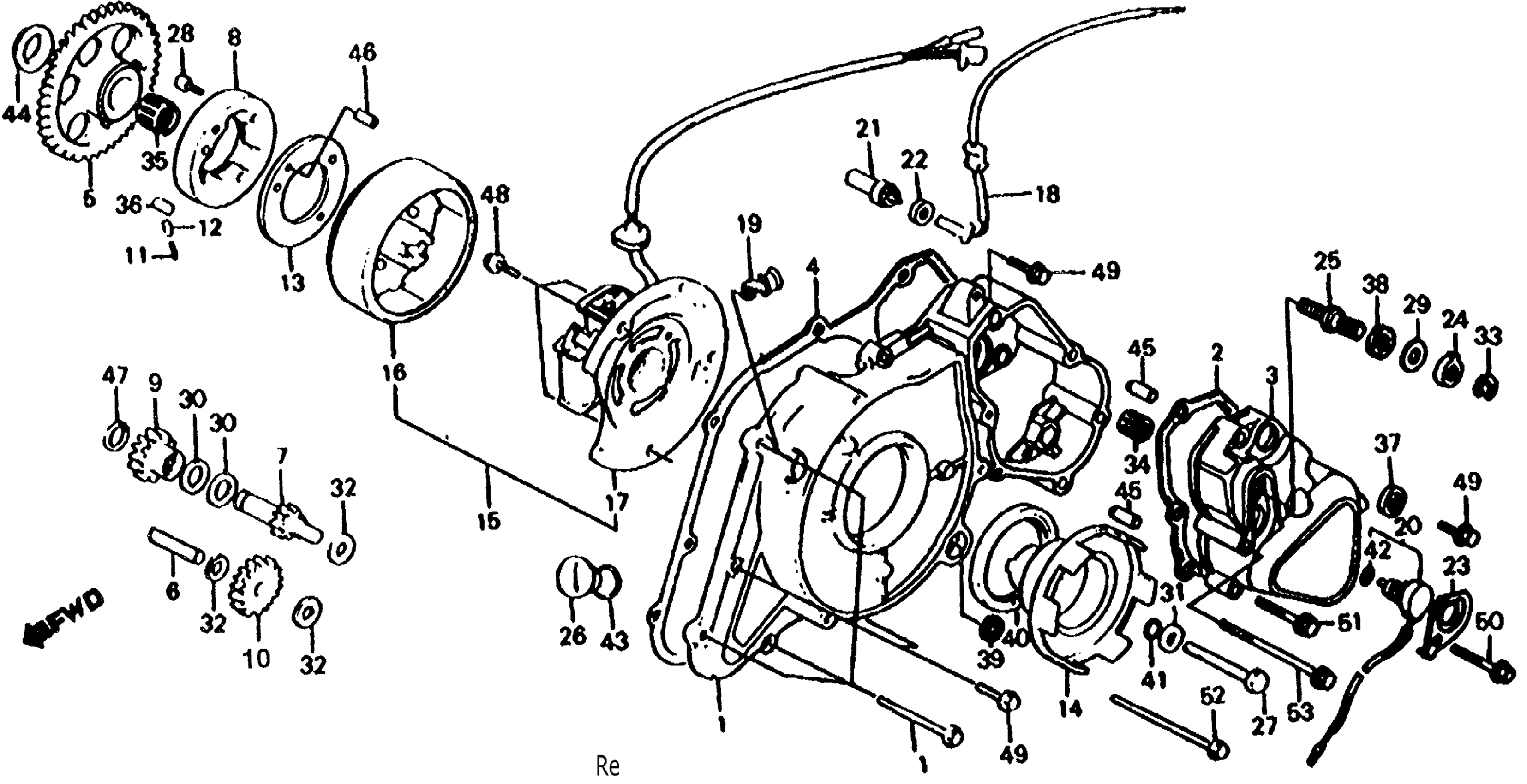

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 LEFT CRANKCASE COVER + ALTERNATOR + SUB-TRANSMISSION COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11341-VM6-000

Unavailable

2

GASKET, REDUCTION COVER This part replaces 11363-VM6-000.

11363-VM6-306

Unavailable

2

GASKET, REDUCTION COVER

11363-VM6-306

Unavailable

3

COVER, REDUCTION GEAR (NOT AVAILABLE)

11370-VM6-000

Unavailable

4

GASKET, L. CRANKCASE COVER This part replaces 11395-VM6-000.

11395-VM6-306

Unavailable

4

GASKET, L. CRANKCASE COVER

11395-VM6-306

Unavailable

5

GEAR, STARTER DRIVEN

28110-958-680

Unavailable

6

SHAFT A, IDLE (NOT AVAILABLE)

28115-968-000

Unavailable

7

SHAFT B, STARTER IDLE

28116-968-010

Unavailable

8

CLUTCH, STARTER (OUTER)

28120-426-000

Unavailable

9

GEAR A, STARTER IDLE

28121-968-010

Unavailable

10

GEAR B, STARTER IDLE (NOT AVAILABLE)

28122-968-000

Unavailable

11

SPRING, STARTER CLUTCH ROLLER

28125-426-000

$2.61

12

CAP, STARTER CLUTCH ROLLER SPRING

28126-323-000

$5.05

13

PLATE, STARTER CLUTCH SIDE

28128-958-680

Unavailable

14

PULLEY, RECOIL STARTER

28431-968-010

Unavailable

15

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-VM6-004.

31100-VM5-014

Unavailable

16

ROTOR

31110-VM5-004

Unavailable

17

STATOR (DENSO)

31120-VM5-014

Unavailable

17

STATOR (DENSO) This part replaces 31120-VM6-004.

31120-VM5-014

Unavailable

18

WIRE, NEUTRAL (NOT AVAILABLE)

32170-VM6-010

$5.67

19

CLAMP, CABLE

32906-968-000

Unavailable

20

SWITCH ASSY., REVERSE

35600-VM6-003

Unavailable

21

CONTACT ASSY., NEUTRAL SWITCH

35750-071-030

Unavailable

22

SPACER, NEUTRAL SWITCH

35752-071-330

Unavailable

23

CAP, REVERSE CONTACT (NOT AVAILABLE)

35754-VM6-000

Unavailable

24

INDICATOR, NEUTRAL (NOT AVAILABLE)

35762-VM6-000

Unavailable

25

SHAFT, NEUTRAL INDICATOR (NOT AVAILABLE)

35764-VM6-000

Unavailable

26

CAP, IGNITION TIMING

90081-958-680

Unavailable

27

BOLT (8MM)

90083-958-680

Unavailable

28

BOLT, SOCKET (6MM)

90085-413-781

$4.06

29

WASHER, THRUST (8.1MM)

90406-VM6-000

$2.66

30

WASHER, THRUST (15MM)

90412-187-000

$2.05

31

WASHER, ROTOR SETTING

90426-437-000

$6.57

32

WASHER (10X21)

90452-187-000

$2.36

33

CIRCLIP (5MM)

90605-230-000

$2.92

34

BEARING, NEEDLE (12X16X10) This part replaces 91001-VM6-003.

91024-GJ5-003

$18.66

34

BEARING, NEEDLE (12X16X10)

91024-GJ5-003

$18.66

34

BEARING, NEEDLE (12X16X10) This part replaces 91024-GJ5-004.

91024-GJ5-003

$18.66

35

BEARING, NEEDLE (20x26x17) (TOYO)

91021-689-902

Unavailable

36

ROLLER (10.2X11.5)

91101-377-000

$3.01

37

OIL SEAL (10X20X5) (ARAI) This part replaces 91201-KM1-003.

91202-HC0-003

$3.54

37

OIL SEAL (10X20X5) (ARAI) This part replaces 91201-KM1-005.

91202-HC0-003

$3.54

37

OIL SEAL (10X20X5) (ARAI) This part replaces 91201-VM6-004.

91202-HC0-003

$3.54

37

OIL SEAL (10X20X5)

91202-HC0-003

$3.54

38

DUST SEAL (8X14X4) (NOT AVAILABLE)

91202-VM6-003

Unavailable

39

OIL SEAL (11.6X19X6)

91204-HB2-003

$7.40

39

OIL SEAL (11.6X19X6) This part replaces 91204-121-711.

91204-HB2-003

$7.40

39

OIL SEAL (11.6X19X6) This part replaces 91204-121-712.

91204-HB2-003

$7.40

40

OIL SEAL (45X60X9)

91204-968-013

$20.47

41

O-RING (7.7X1.9) (NOK)

91311-PA9-004

$3.11

42

O-RING (7X1.7)

91312-107-000

$3.18

43

O-RING (18X2.4)

91310-PH3-003

$2.44

43

O-RING (18X2.4) This part replaces 91333-422-003.

91310-PH3-003

$2.44

44

COLLAR, SPECIAL

91501-968-000

Unavailable

45

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

46

PIN C, DOWEL (8X14)

94303-08140

$2.14

47

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

48

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

48

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

49

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

49

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

50

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

50

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

51

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.62

51

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

52

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

52

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

53

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

$2.23

53

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

53

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

53

BOLT, FLANGE (6X80)

96001-06080-07

$2.23
