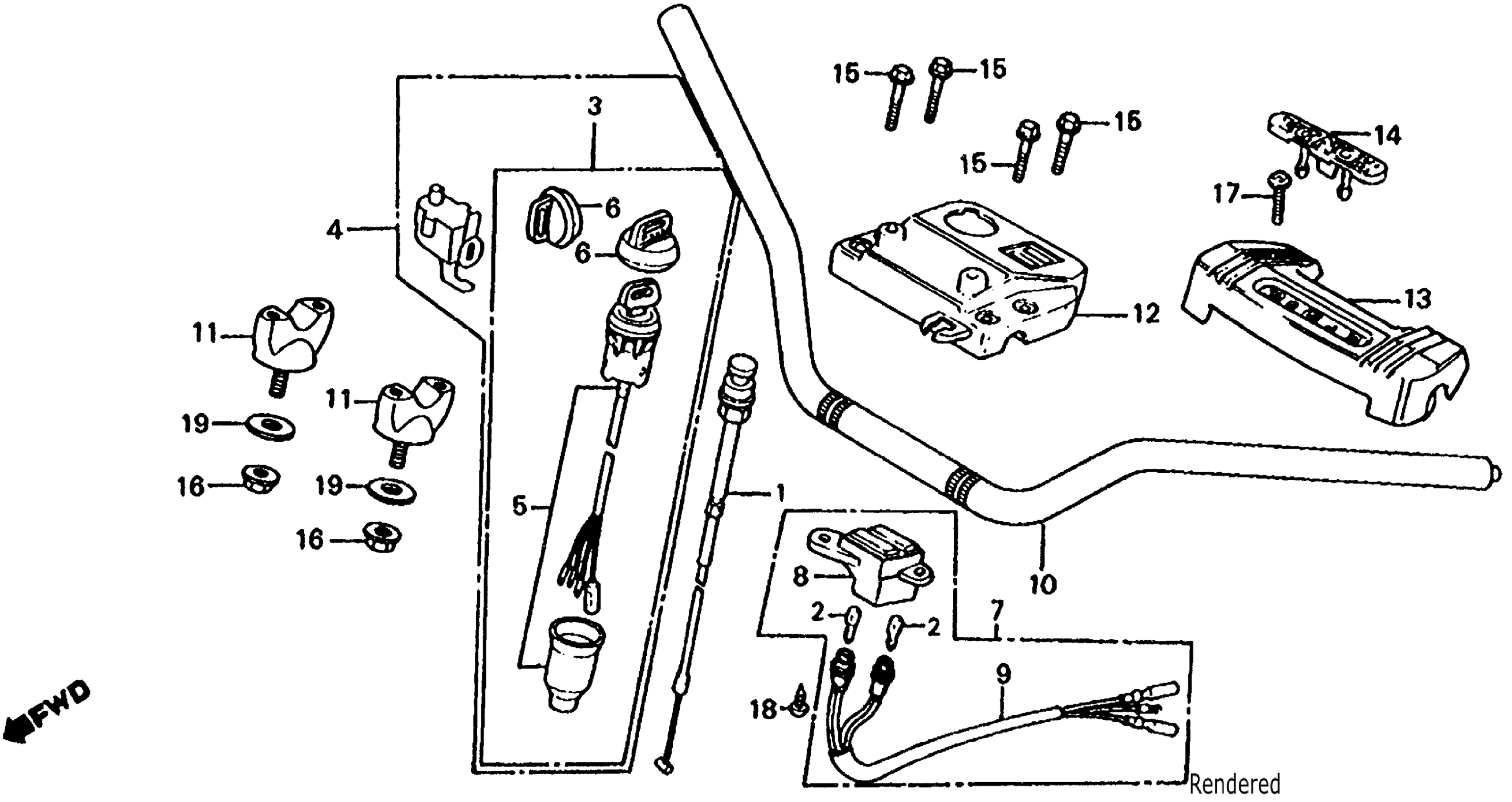

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

CABLE, CHOKE

17950-VM6-680

Unavailable

2

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

4

LOCK SET (NOT AVAILABLE)

35010-VM6-681

Unavailable

5

LOCK SET

35010-HB6-671

Unavailable

5

LOCK SET | Use up to Frame SN GC130277

35010-HB6-671

Unavailable

5

LOCK SET | Use up to Frame SN GC130277 This part replaces 35100-HB6-000.

35010-HB6-671

Unavailable

5

LOCK SET This part replaces 35100-HB6-010.

35010-HB6-671

Unavailable

5

LOCK SET | Use up to Frame SN GC130277 This part replaces 35100-HB6-010.

35010-HB6-671

Unavailable

5

LOCK SET | Use up to Frame SN GC130277 This part replaces 35100-VM6-680.

35010-HB6-671

Unavailable

6

CAP, COMBINATION SWITCH KEY

35113-VM6-007

Unavailable

7

INDICATOR ASSY., NEUTRAL REVERSE

38400-VM6-003

Unavailable

8

CASE (NOT AVAILABLE)

38401-969-003

Unavailable

9

WIRE

38402-VM6-000

Unavailable

10

HANDLEBAR (NOT AVAILABLE)

53100-VM6-680

Unavailable

11

HOLDER, HANDLE (LOWER)

53130-HA0-680

$21.17

12

HOLDER, HANDLEBAR (UPPER)

53131-VM6-680

Unavailable

13

COVER, HANDLEBAR (NOT AVAILABLE)

53205-958-682

Unavailable

14

LABEL, HANDLEBAR COVER (NOT AVAILABLE)

53206-958-003

Unavailable

15

BOLT, FLANGE (8X36) This part replaces 90111-402-700.

90111-362-000

$4.80

16

NUT, U (10MM)

90304-GE8-003

$3.67

17

SCREW-WASHER (6X20)

93891-06020-08

$1.80

18

SCREW, TAPPING (4X12)

93903-34320

$1.49

19

WASHER, PLAIN (10X28) (NOT AVAILABLE)

90507-VM6-680

Unavailable
