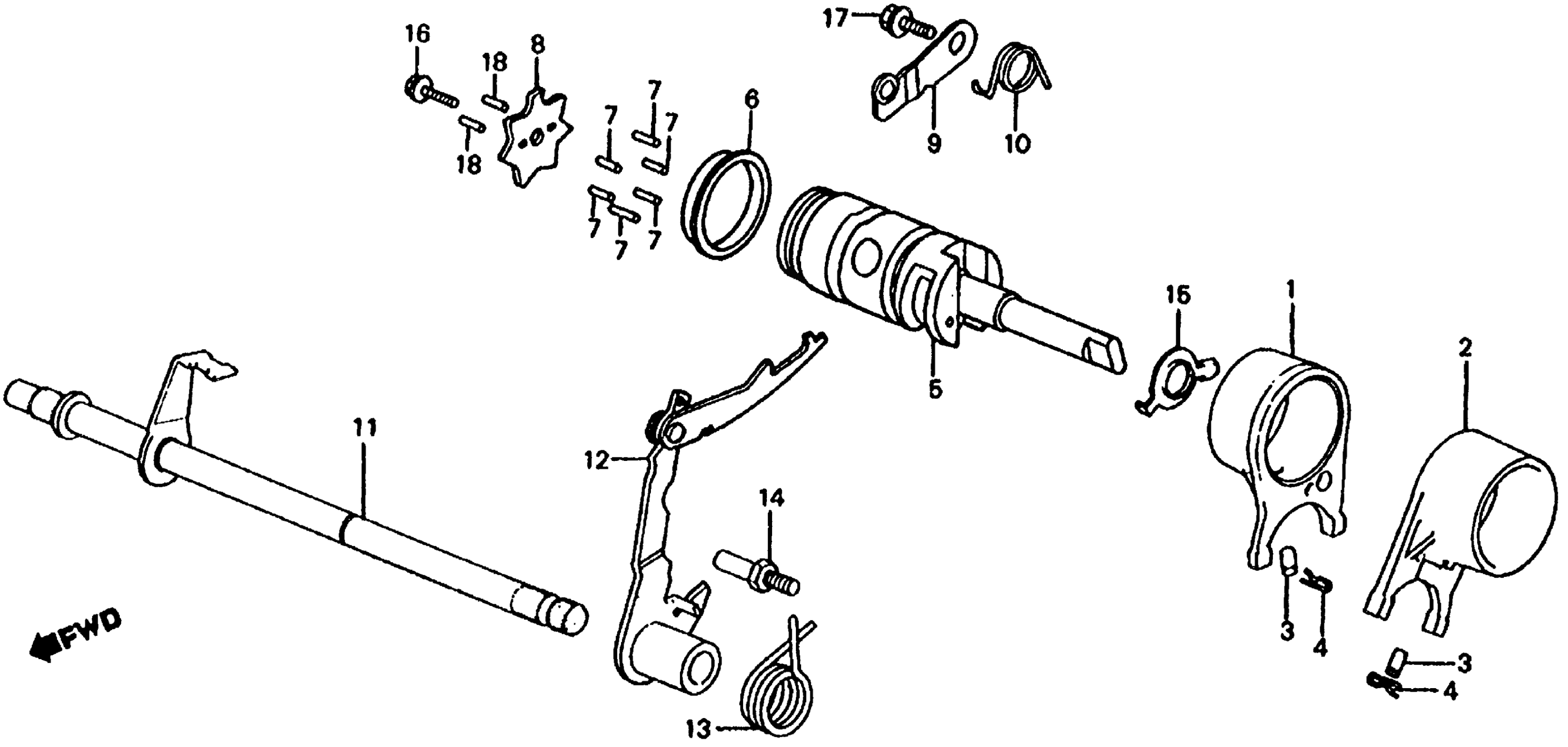

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-VM6-000

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE)

24221-VM6-000

Unavailable

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE

24261-121-742

$2.33

4

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

5

SHIFT DRUM

24300-VM6-000

Unavailable

6

COLLAR, GEARSHIFT DRUM

24307-VM6-000

Unavailable

7

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

7

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

8

PLATE, GEARSHIFT DRUM STOPPER

24425-VM6-000

Unavailable

9

ARM This part replaces 24430-943-010.

24430-459-950

$15.78

10

SPRING, DRUM STOPPER

24435-051-000

Unavailable

11

SPINDLE, GEARSHIFT

24610-968-000

Unavailable

12

ARM, GEARSHIFT (NOT AVAILABLE)

24630-VM6-010

Unavailable

13

SPRING, GEARSHIFT RETURN This part replaces 24651-033-000.

24651-121-710

Unavailable

13

SPRING, GEARSHIFT RETURN This part replaces 24651-033-010.

24651-121-710

Unavailable

13

SPRING, GEARSHIFT RETURN

24651-121-710

Unavailable

14

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

15

ROTOR, NEUTRAL SWITCH

35752-VM6-000

Unavailable

16

BOLT, KNOCK (8MM)

90002-VM6-003

Unavailable

17

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

17

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

18

ROLLER (3X8.5)

96220-30085

$1.49
