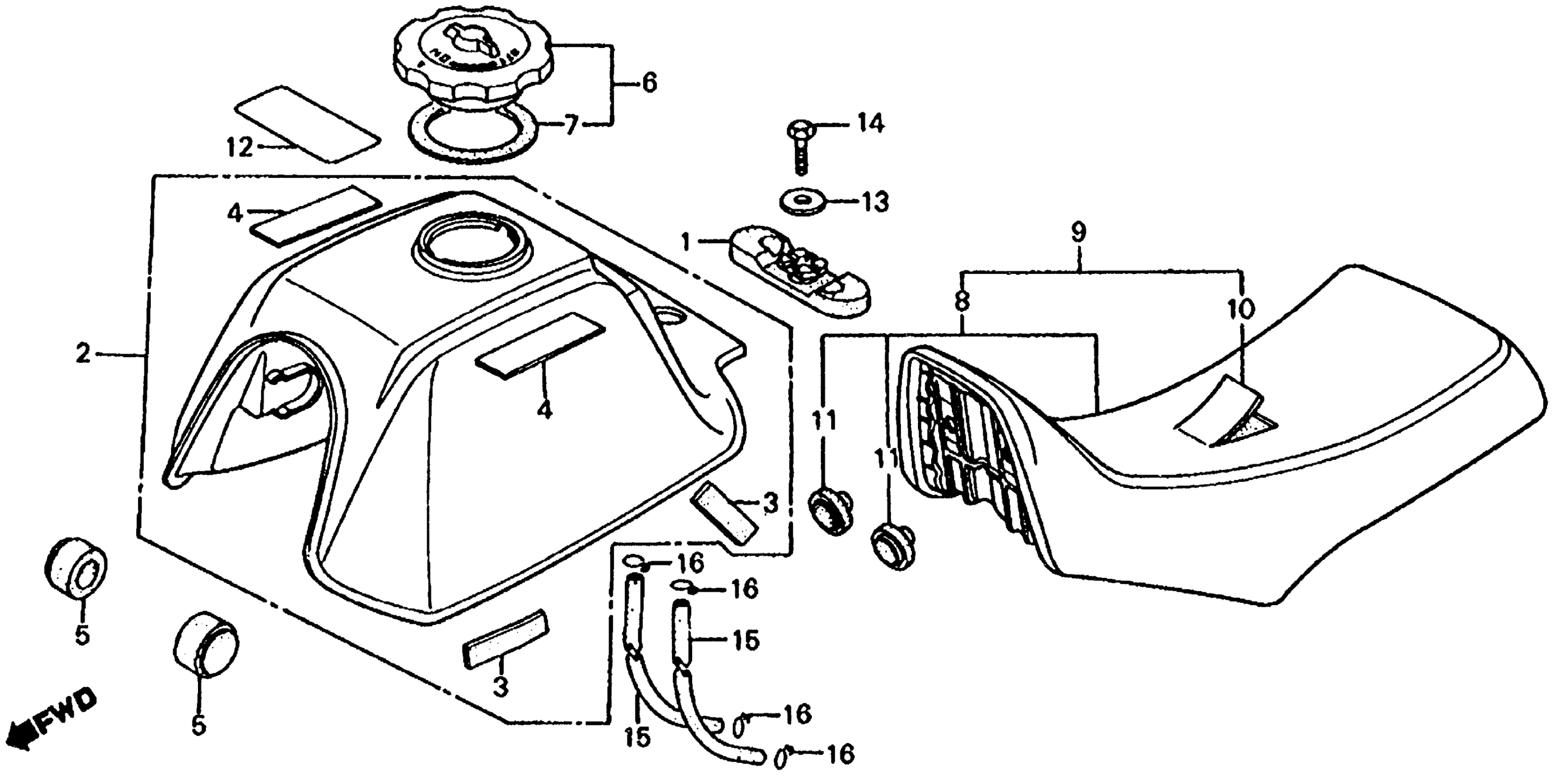

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 FUEL TANK + SEAT Diagram

#

Description
Price

1

RUBBER, RR. TANK

17509-437-000

Unavailable

2

TANK, FUEL *R109* (PASSION RED) (NOT AVAILABLE) This part replaces 17510-VM6-681ZA.

17510-VM6-680ZA

Unavailable

2

TANK, FUEL *R109* (PASSION RED) (NOT AVAILABLE)

17510-VM6-680ZA

Unavailable

3

RUBBER ASSY., TANK SPACER

17511-VM6-300

Unavailable

4

SEAT, PROTECTION

17512-VM6-680

Unavailable

5

RUBBER, FR. FUEL TANK

17611-028-000

$4.07

6

FUEL FILL CAP (TOYOSHA) This part replaces 17620-HC3-771.

17620-HC3-505

Unavailable

6

FUEL FILL CAP (TOYOSHA) This part replaces 17620-VM6-013.

17620-HC3-505

Unavailable

7

GASKET This part replaces 17631-VM6-300.

17631-899-010

$6.32

7

GASKET This part replaces 17631-899-000.

17631-899-010

$6.32

9

SEAT (NOT AVAILABLE) This part replaces 77100-VM6-680.

77100-VM6-003

Unavailable

10

COVER, SEAT (NOT AVAILABLE)

77101-VM6-680

Unavailable

11

RUBBER, SEAT STOPPER

77211-MB0-000

$6.72

13

WASHER, EX. DUCT (NOT AVAILABLE)

90504-567-000

Unavailable

14

BOLT, HEX. (6X12) This part replaces 92000-06012-0H.

92101-06012-0H

$1.49

14

BOLT, HEX. (6X12) This part replaces 92000-06012-08.

92101-06012-0H

$1.49

14

BOLT, HEX. (6X20)

92101-06012-0H

$1.49

15

BULK HOSE, FUEL (5.5X3000) (5.5X135)

95001-55003-60M

$47.32

16

CLIP, TUBE (B10)

95002-02100

$1.90
