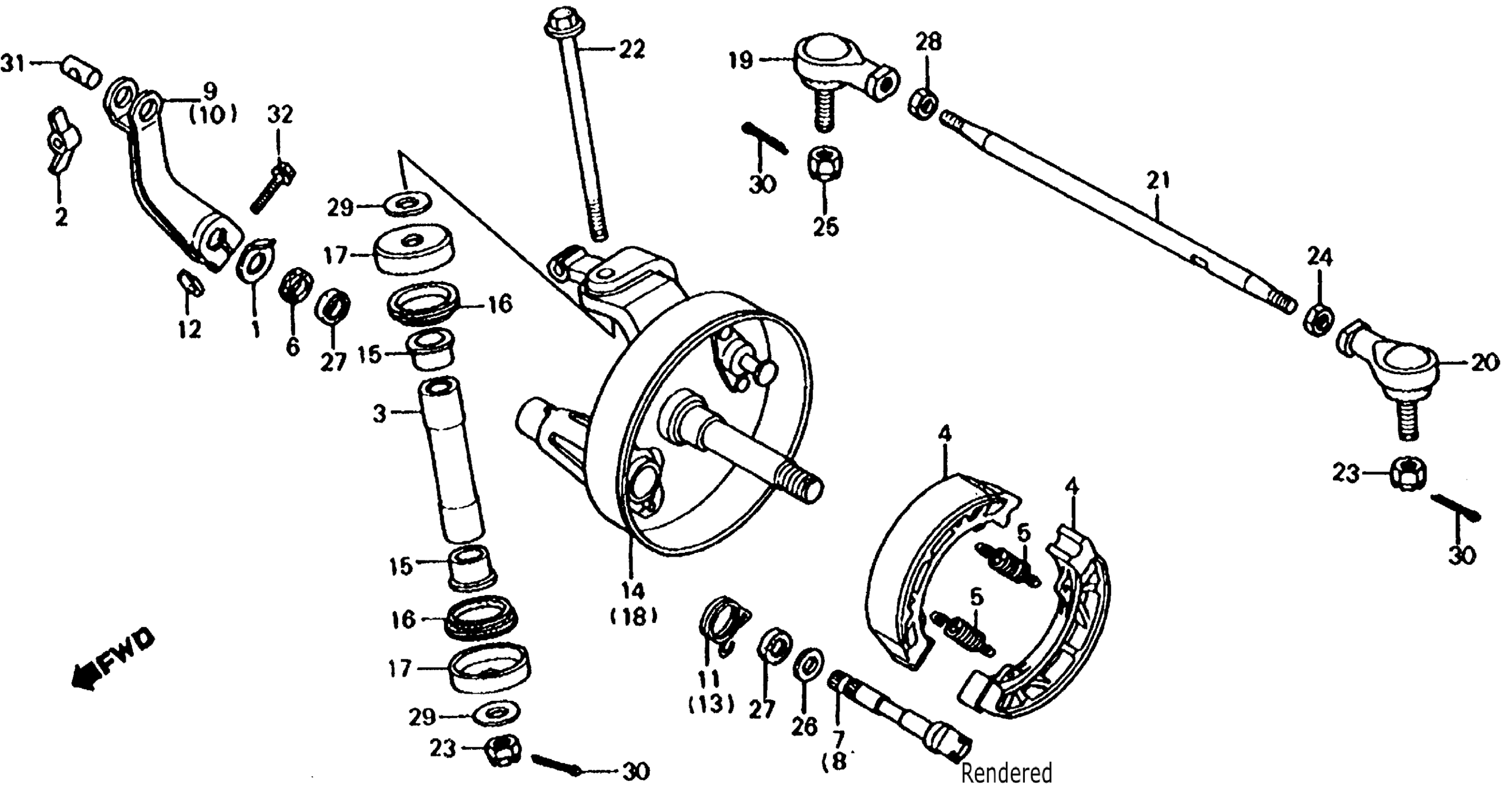

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 FRONT BRAKE PANEL + TIE ROD Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-096-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A2-096-305.

06450-178-932

$24.89

1

INDICATOR, RR. BRAKE

43145-KB4-000

$6.82

2

NUT, BRAKE ADJUST

43459-434-000

$15.27

3

COLLAR, KINGPIN

44622-VM6-000

Unavailable

4

SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)

45120-096-652

Unavailable

5

SPRING, BRAKE SHOE

45133-028-000

$2.03

6

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

7

CAM, R. FR. BRAKE

45141-VM6-000

Unavailable

8

CAM, L. FR. BRAKE (NOT AVAILABLE)

45151-VM6-000

Unavailable

9

ARM, R. FR. BRAKE (NOT AVAILABLE)

45410-VM6-000

Unavailable

10

ARM, L. FR. BRAKE (NOT AVAILABLE)

45420-VM6-000

Unavailable

11

SPRING, R. FR. BRAKE ARM (NOT AVAILABLE)

45435-VM6-000

$3.41

12

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

13

SPRING, L. FR. BRAKE ARM (NOT AVAILABLE)

45445-VM6-000

$3.54

14

KNUCKLE, R. (NOT AVAILABLE)

51210-VM6-680

Unavailable

15

BUSH, KINGPIN

51215-VM6-003

$19.89

16

DUST SEAL, KINGPIN

51217-VM6-003

Unavailable

16

DUST SEAL, KINGPIN This part replaces 51217-VM6-004.

51217-VM6-003

Unavailable

17

CAP, DUST SEAL

51218-VM6-000

Unavailable

18

KNUCKLE, L.

51220-VM6-680

Unavailable

19

JOINT, BALL (RIGHT HAND THREAD) (OUTER)

53150-HB3-003

$68.76

19

JOINT, BALL (RIGHT HAND THREAD) This part replaces 53150-950-003.

53150-HB3-003

$68.76

20

JOINT, BALL (LEFT HAND THREAD) (INNER)

53158-HB3-003

$64.05

20

JOINT, BALL (LEFT HAND THREAD) This part replaces 53158-950-003.

53158-HB3-003

$64.05

21

TIE ROD

53521-VM6-680

Unavailable

22

BOLT, KINGPIN

90198-VM6-000

Unavailable

23

NUT, FR. WHEEL AXLE

90305-041-000

$4.83

24

NUT, HEX. (10MM) (LEFT HAND THREAD)

90311-VM5-010

$2.92

24

NUT, HEX. (10MM) (LEFT HAND THREAD)

90311-VM6-680

$3.08

25

NUT, CASTLE (10MM)

90320-601-000

$9.85

26

WASHER (14.2MM)

90451-115-000

$2.92

27

OIL SEAL (14X20X4) (NIPPON OIL-SEAL)

91208-611-005

$4.35

28

NUT, HEX. (10MM)

94002-10200-0S

$1.49

29

WASHER, PLAIN (10MM)

94101-10000

$1.49

30

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

30

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

30

PIN, COTTER (2.5MM)

94201-25300

$1.49

31

JOINT, BRAKE ARM

95015-32001

$1.49

32

BOLT, FLANGE (6X28) This part replaces 95700-06028-08.

95701-06028-08

$2.08

32

BOLT, FLANGE (6X28)

95701-06028-08

$2.08
