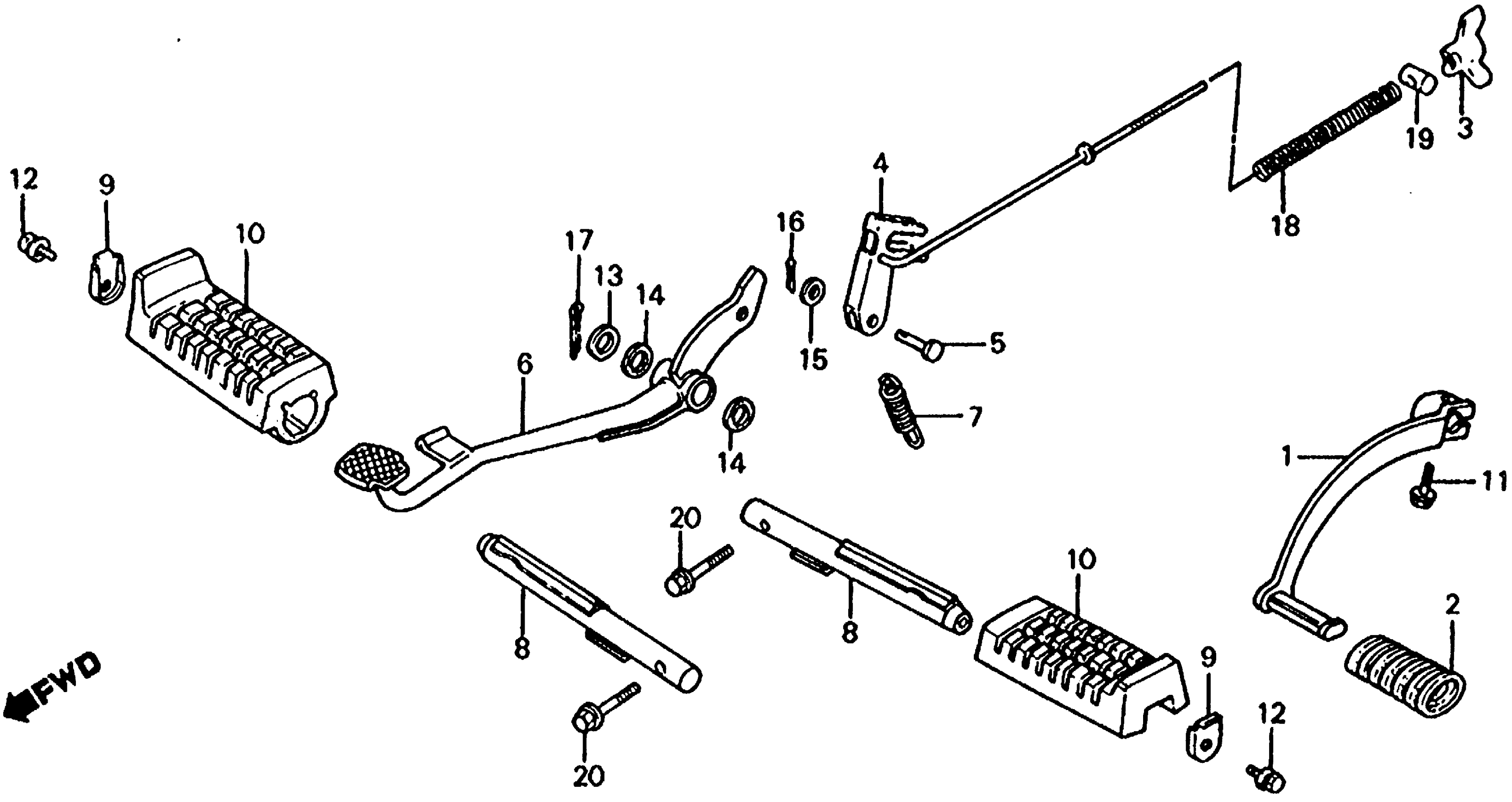

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 FOOTPEGS + GEARSHIFT PEDAL + BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24700-VM6-680

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-371-000

$5.13

3

NUT, BRAKE ADJUST

43459-434-000

$15.27

4

LEVER, ESCAPE (NOT AVAILABLE)

43470-VM6-680

Unavailable

5

SHAFT, ESCAPE (NOT AVAILABLE)

43472-918-000

Unavailable

6

PEDAL, BRAKE (NOT AVAILABLE)

46500-VM6-680

Unavailable

7

SPRING, BRAKE PEDAL

46514-VM3-000

Unavailable

7

SPRING, BRAKE PEDAL This part replaces 46514-VM6-680.

46514-VM3-000

Unavailable

8

BAR, FOOTPEG (NOT AVAILABLE)

50610-VM6-000

Unavailable

9

STOPPER, STEP RUBBER (NOT AVAILABLE)

50651-958-010

Unavailable

10

RUBBER, STEP

50661-958-020

Unavailable

11

BOLT, FLANGE (6X20)

90118-968-000

$4.24

12

BOLT-WASHER (8X12)

90156-964-670

Unavailable

13

WASHER (17.5MM)

90512-303-000

$1.77

14

DUST SEAL (17X23X3)

91206-968-003

$3.69

15

WASHER, PLAIN (8MM)

94101-08800

$1.93

16

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

16

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

16

PIN, COTTER (2.0X22)

94201-20220

$1.49

16

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

16

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

16

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

16

PIN, COTTER (2.0X35)

94201-20350

$1.49

16

PIN, COTTER (2.0X22)

94201-29220

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

17

PIN, COTTER (3.0X45)

94201-30450

$1.49

18

SPRING, RR. BRAKE ROD

43467-HA0-000

Unavailable

19

JOINT, BRAKE ARM

95015-32001

$1.49

20

BOLT, FLANGE (8X40)

90118-VM6-000

$4.85
