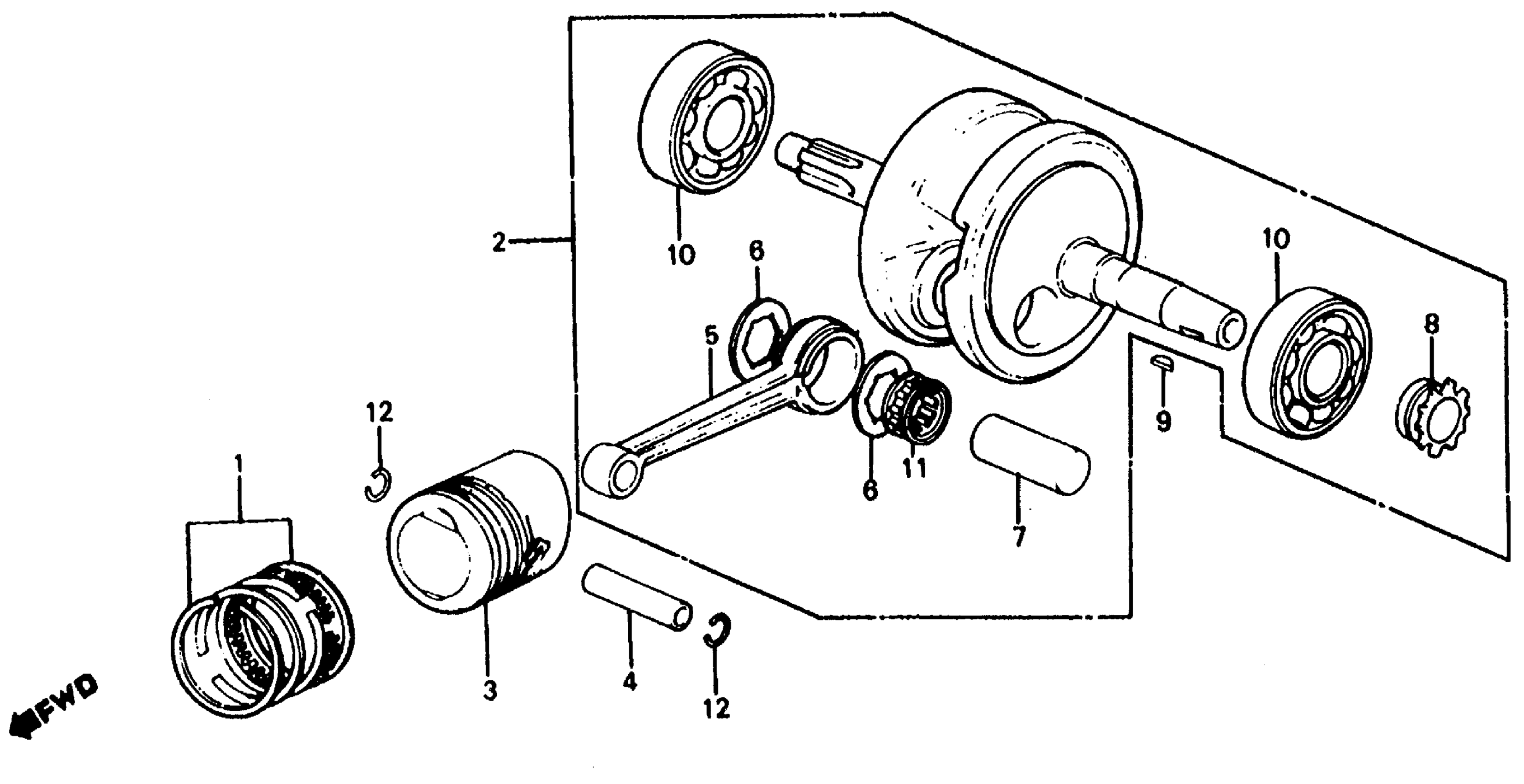

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD) (TEIKOKU)

130A1-968-003

Unavailable

1

RING SET, PISTON (STD) (RIKEN)

130A1-968-004

Unavailable

1

RING SET, PISTON (OS 0.25)

13012-968-003

Unavailable

1

RING SET, PISTON (OS 0.25) This part replaces 13012-968-004.

13012-968-003

Unavailable

1

RING SET, PISTON (OS 0.50)

13013-968-003

Unavailable

1

RING SET, PISTON (OS 0.50) This part replaces 13013-968-004.

13013-968-003

Unavailable

2

CRANKSHAFT (NOT AVAILABLE)

13000-968-010

Unavailable

3

PISTON

13101-968-003

Unavailable

3

PISTON (OS 0.25)

13102-968-000

Unavailable

3

PISTON (OS 0.50)

13103-968-000

Unavailable

4

PIN, PISTON This part replaces 13111-MA6-000.

13111-MJ6-000

Unavailable

4

PIN, PISTON

13111-MJ6-000

Unavailable

5

ROD, CONNECTING (NOT AVAILABLE)

13201-943-320

Unavailable

6

PLATE, CONNECTING ROD SIDE

13202-958-300

$12.02

7

PIN, CRANK

13381-459-300

Unavailable

8

SPROCKET, TIMING (15T)

14311-071-000

Unavailable

9

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

9

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

9

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

10

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

10

BEARING, RADIAL BALL (6305) (NACHI) This part replaces 91001-071-008.

91001-071-003

$46.05

11

BEARING, CONNECTING ROD LARGE END (RED) (TOYO)

91002-383-003

Unavailable

11

BEARING, CONNECTING ROD LARGE END (RED) (TOYO) This part replaces 91002-383-004.

91002-383-003

Unavailable

11

BEARING, CONNECTING ROD LARGE END (BLUE) (TOYO)

91003-383-003

Unavailable

11

BEARING, CONNECTING ROD LARGE END (BLUE) (TOYO) This part replaces 91003-383-004.

91003-383-003

Unavailable

11

BEARING, CONNECTING ROD LARGE END (WHITE) (TOYO)

91004-383-003

$25.67

11

BEARING, CONNECTING ROD LARGE END (WHITE) (TOYO) This part replaces 91004-383-004.

91004-383-003

$25.67

12

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
