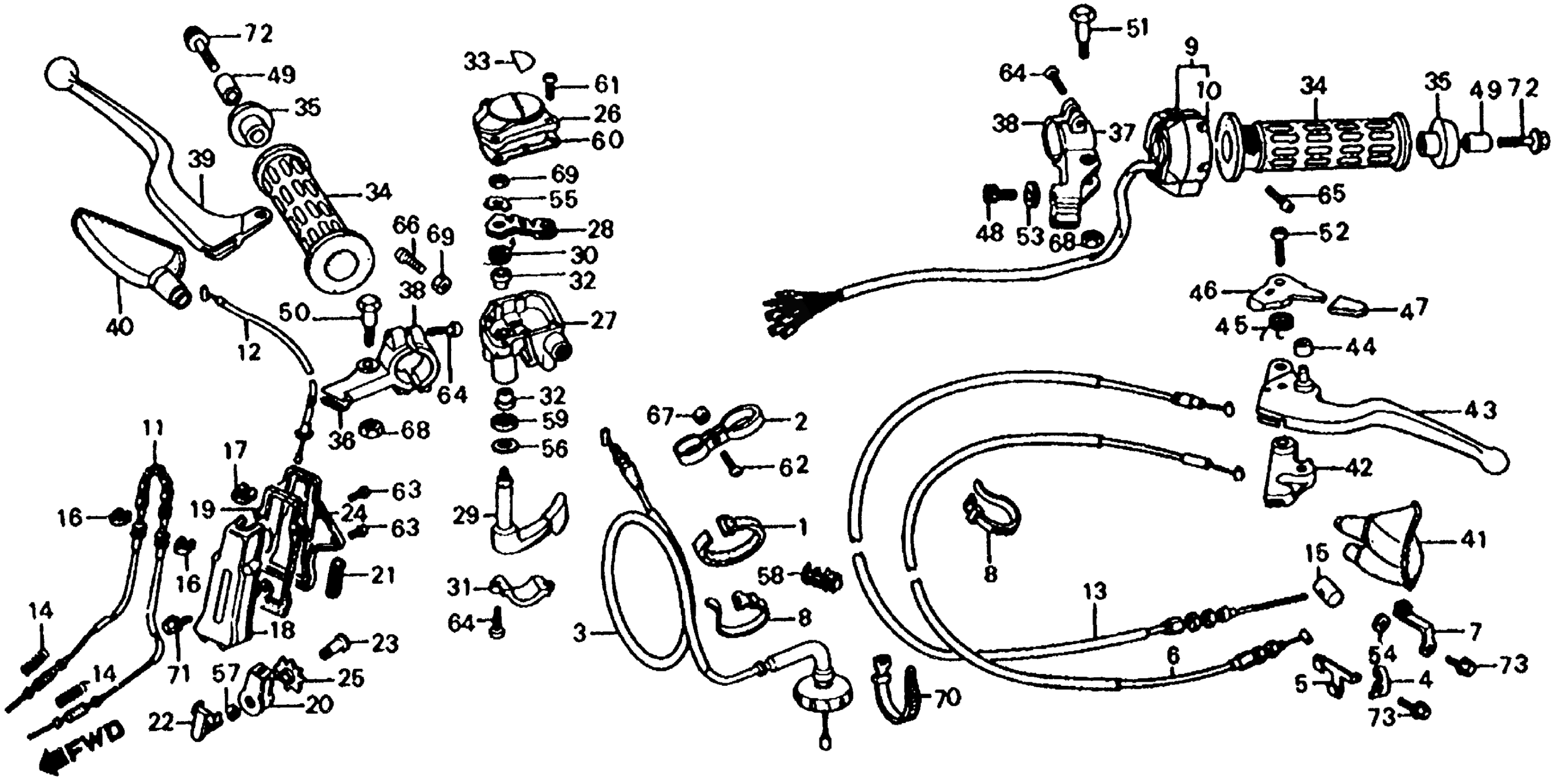

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 CONTROL LEVERS + SWITCHES + CABLES 86 Diagram

#

Description
Price

1

BAND, THROTTLE CABLE (NOT AVAILABLE)

17914-958-010

Unavailable

2

GUIDE, THROTTLE CABLE (NOT AVAILABLE)

17916-958-000

Unavailable

3

CABLE SET, THROTTLE (NOT AVAILABLE) This part replaces 17920-VM6-305.

17920-VM6-315

Unavailable

3

CABLE SET, THROTTLE (NOT AVAILABLE)

17920-VM6-315

Unavailable

4

STAY, WIRE (NOT AVAILABLE)

22835-VM6-000

Unavailable

5

CLIP, WIRE (NOT AVAILABLE)

22836-VM6-000

Unavailable

6

CABLE, REVERSE ASSIST

22880-VM6-680

Unavailable

7

LEVER, REVERSE STOPPER (NOT AVAILABLE)

24865-VM6-000

Unavailable

8

BAND B1, CABLE

32161-404-000

$2.23

9

SWITCH ASSY., LIGHTING & ENGINE STARTER (NOT AVAILABLE)

35200-VM6-681

Unavailable

10

COVER, SWITCH (NOT AVAILABLE)

35201-VM6-681

Unavailable

11

CABLE ASSY., FR. BRAKE SECOND

43440-VM6-000

Unavailable

12

CABLE, BRAKE INSTRUMENT

43450-VM6-000

Unavailable

13

CABLE, BRAKE

43460-VM6-680

Unavailable

14

SPRING B, BRAKE ROD

43468-VM6-680

$2.93

15

JOINT, BRAKE CABLE

43473-918-000

Unavailable

16

GROMMET, CABLE

47512-196-000

Unavailable

17

GROMMET, RR. BRAKE (1ST)

47520-GAG-750

Unavailable

17

GROMMET, RR. BRAKE (1ST) This part replaces 47520-196-000.

47520-GAG-750

Unavailable

18

BOX, EQUALIZER This part replaces 47601-VM6-000.

47601-196-000

Unavailable

18

BOX, EQUALIZER

47601-196-000

Unavailable

19

GASKET This part replaces 47603-196-300.

47609-GAG-750

Unavailable

20

PLATE, EQUALIZER

47604-196-000

Unavailable

21

SPRING, CABLE RETURN (NOT AVAILABLE)

47605-VM6-000

Unavailable

22

PIN, EQUALIZER GUIDE

47606-196-000

Unavailable

23

PIN, EQUALIZER

47607-196-000

Unavailable

24

COVER, EQUALIZER BOX (NOT AVAILABLE)

47609-VM6-000

Unavailable

25

SPROCKET, EQUALIZER

47610-196-003

Unavailable

26

CASE, THROTTLE LEVER (NOT AVAILABLE)

04005-HA0-000

Unavailable

27

CASE, THROTTLE LEVER | Use up to Frame SN GC132135 This part replaces 53142-VM6-681.

53142-VM6-682

Unavailable

27

CASE, THROTTLE LEVER

53142-VM6-682

Unavailable

28

ARM, THROTTLE This part replaces 53144-HA0-000.

53144-HA0-010

$7.72

28

ARM, THROTTLE

53144-HA0-010

$7.72

29

LEVER, THROTTLE This part replaces 53145-HA0-000.

53145-HA0-770

$24.05

29

LEVER, THROTTLE

53145-HA0-770

$24.05

30

SPRING, THROTTLE RETURN

53146-HA0-000

$4.53

31

HOLDER, THROTTLE CASE

53147-965-000

Unavailable

32

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

33

MARK, THROTTLE CAUTION

53155-VM6-680

Unavailable

34

GRIP, HANDLEBAR (NOT AVAILABLE)

53166-943-000

Unavailable

35

GUARD, HANDLEBAR END

53167-958-680

$6.40

36

BRACKET, R. CONTROL LEVER

53171-VM6-680

Unavailable

37

BRACKET, BRAKE LEVER (NOT AVAILABLE) | Use up to Frame SN GC122702 This part replaces 53172-HA0-680.

53172-HA0-682

Unavailable

37

BRACKET, BRAKE LEVER (NOT AVAILABLE) This part replaces 53172-HA0-681.

53172-HA0-682

Unavailable

37

BRACKET, BRAKE LEVER (NOT AVAILABLE)

53172-HA0-682

Unavailable

38

HOLDER, LEVER BRACKET

53173-958-000

$10.59

39

LEVER, R. HANDLEBAR This part replaces 53175-HA0-680.

53175-HC3-000

$25.68

39

LEVER, R. HANDLEBAR

53175-HC3-000

$25.68

40

COVER, R. HANDLE LEVER (NOT AVAILABLE)

53176-VM6-000

Unavailable

41

COVER, L. HANDLEBAR

53177-HA0-680

$11.72

42

ARM, REVERSE ASSIST

53179-VM6-000

Unavailable

43

LEVER, RR. BRAKE This part replaces 53180-HA0-680.

53180-HC3-000

Unavailable

43

LEVER, RR. BRAKE

53180-HC3-000

Unavailable

44

CAP, REVERSE PIN

53187-VM6-000

$3.89

45

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

46

LEVER, PARKING LOCK

53192-HA0-770

Unavailable

46

LEVER, PARKING LOCK This part replaces 53192-VM6-000.

53192-HA0-770

Unavailable

47

CAP, PARKING LEVER

53193-HA0-770

$6.16

47

CAP, PARKING LEVER This part replaces 53193-VM6-000.

53193-HA0-770

$6.16

48

BOLT, WIRE ADJUSTING

53193-968-000

$14.08

49

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

50

BOLT, CONTROL LEVER PIVOT

90113-VM6-000

Unavailable

51

BOLT, HANDLE LEVER PIVOT

90114-HA0-770

$2.56

51

BOLT, HANDLE LEVER PIVOT This part replaces 90114-VM6-000.

90114-HA0-770

$2.56

52

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

53

NUT, FIXING

90321-315-670

$7.31

53

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

54

WASHER (10X24)

90414-GE0-000

$2.89

55

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

56

WASHER (9X20)

90504-HA0-000

$2.28

57

CIRCLIP (7MM)

90605-166-720

$1.80

58

CLIP, CORD (NOT AVAILABLE)

90686-VM6-003

Unavailable

59

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

59

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

60

GASKET, THROTTLE CASE This part replaces 91532-HA0-010.

91532-HA0-020

$6.16

60

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

61

SCREW, PAN (4X12)

93500-04012-0G

$1.49

62

SCREW, PAN (4X20)

93500-04020-0A

$1.49

62

SCREW, PAN (4X20) This part replaces 93500-04020-1A.

93500-04020-0A

$1.49

63

SCREW, PAN (5X12)

93500-05012-0A

$1.49

64

SCREW, PAN (5X18)

93500-05018-0A

$1.49

65

SCREW, PAN (5X22)

93500-05022-0G

$1.49

66

SCREW, PAN (6X32)

93500-06032-0A

$1.49

67

NUT, HEX. (4MM)

94001-04000-0S

$1.49

68

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

68

NUT, HEX. (6MM)

94001-06200-0S

$1.49

69

NUT, HEX. (6MM)

94002-06000-0S

$1.49

70

BAND B1, CABLE

95014-62100

$1.64

71

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

71

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

72

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

72

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

73

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

73

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
