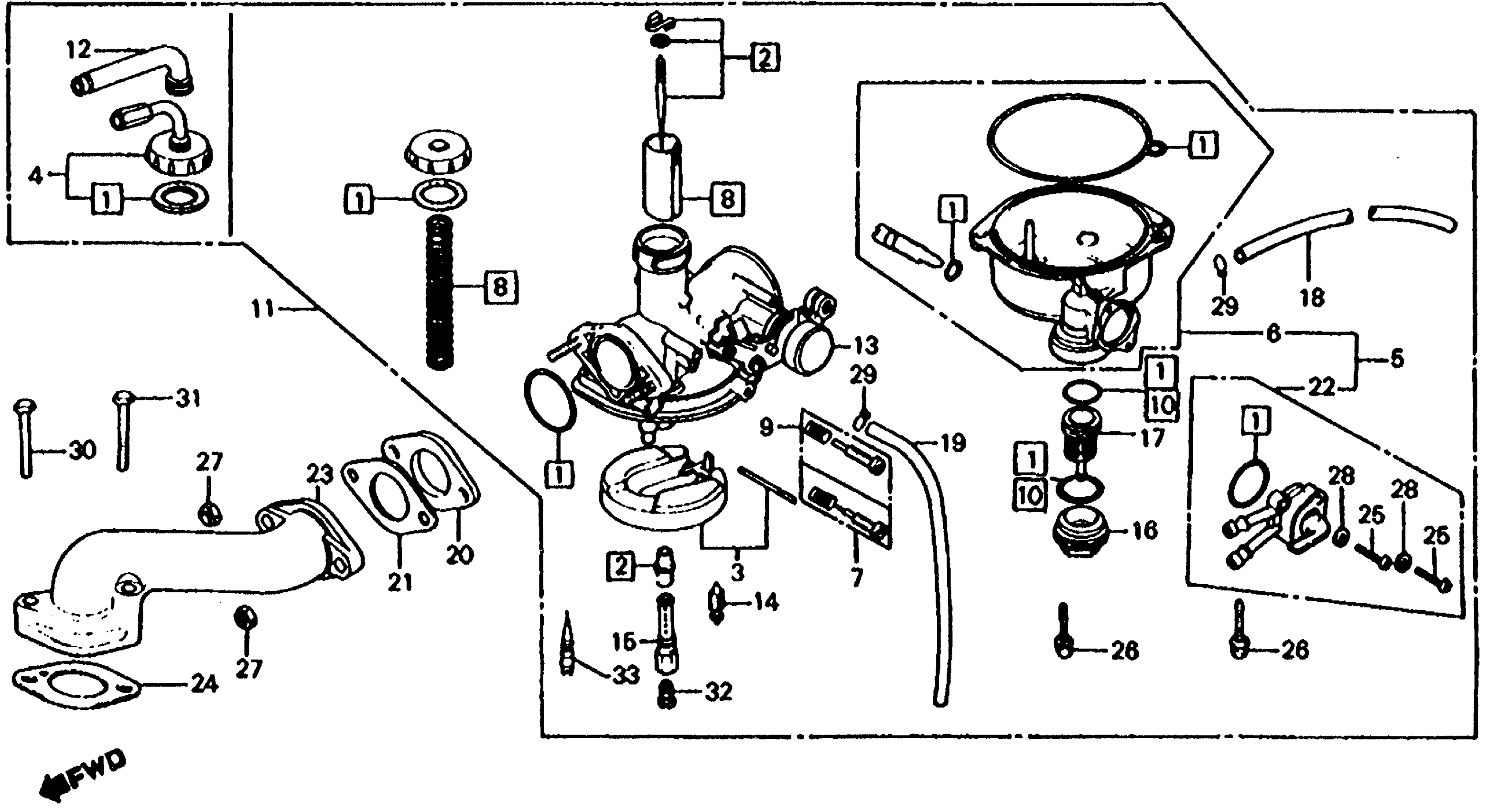

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 CARBURETOR Diagram

#

Description
Price

NI

GASKET, TOP

16110-KN4-651

$7.69

1

GASKET SET This part replaces 16010-HB6-004.

16010-943-305

$40.94

1

GASKET SET

16010-943-305

$40.94

1

GASKET SET This part replaces 16010-968-003.

16010-943-305

$40.94

2

NEEDLE SET, JET

16012-VM6-004

Unavailable

3

FLOAT SET

16013-883-005

$29.08

6

CHAMBER SET, FLOAT This part replaces 16015-968-013.

16015-968-023

Unavailable

6

CHAMBER SET, FLOAT

16015-968-023

Unavailable

7

SCREW SET, A

16016-GB5-681

$9.66

8

VALVE SET, THROTTLE

16022-VM6-004

Unavailable

9

SCREW SET B

16028-GC8-004

$16.35

9

SCREW SET B This part replaces 16028-187-003.

16028-GC8-004

$16.35

10

GASKET B SET

16040-GB0-911

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE)

16100-VM6-681

Unavailable

13

CAP, CHOKE LEVER DUST

16148-141-881

$4.75

13

CAP, CHOKE LEVER DUST This part replaces 16148-943-003.

16148-141-881

$4.75

14

VALVE, FLOAT

16155-168-681

Unavailable

15

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-943-013

Unavailable

16

CUP, FUEL STRAINER

16175-GB0-911

$22.85

17

CUP, FILTER

16176-GB0-911

$18.37

18

TUBE This part replaces 16195-449-405.

16199-MN5-405

$11.86

18

TUBE This part replaces 16199-460-671.

16199-MN5-405

$11.86

19

TUBE, AIR VENT

16199-943-003

Unavailable

20

INSULATOR, CARBURETOR This part replaces 16211-943-000.

16211-943-306

$6.39

20

INSULATOR, CARBURETOR

16211-943-306

$6.39

21

GASKET, CARBURETOR This part replaces 16212-943-000.

16212-943-306

$3.48

21

GASKET, CARBURETOR

16212-943-306

$3.48

22

BODY SET, PETCOCK

16951-943-801

$68.48

23

PIPE, INLET (NOT AVAILABLE)

17111-968-000

Unavailable

24

GASKET, IN. PIPE This part replaces 17119-035-000.

17119-088-832

$4.39

24

GASKET, IN. PIPE This part replaces 17119-035-306.

17119-088-832

$4.39

24

GASKET, IN. PIPE This part replaces 17119-088-830.

17119-088-832

$4.39

25

SCREW, PAN (3X12)

93500-03012-0H

$1.49

26

SCREW-WASHER (4X14)

93892-04014-08

$1.49

27

NUT, HEX. (6MM)

94001-06080-0S

$1.49

28

WASHER, SPRING (3MM)

94111-03000

$1.49

29

CLIP, TUBE (B6.5)

95002-02650

$1.49

30

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

30

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

31

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

31

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

32

JET, MAIN (#88) This part replaces 99101-116-0880.

99102-GHB-0880

$6.57

32

JET, MAIN (#90) This part replaces 99101-116-0900.

99102-GHB-0900

$9.46

32

JET, MAIN (#95) This part replaces 99101-116-0950.

99102-GHB-0950

$9.46

32

JET, MAIN (#90)

99102-GHB-0900

$9.46

32

JET, MAIN (#95)

99102-GHB-0950

$9.46

33

JET, SLOW (#38)

99103-VM6-0380

Unavailable
