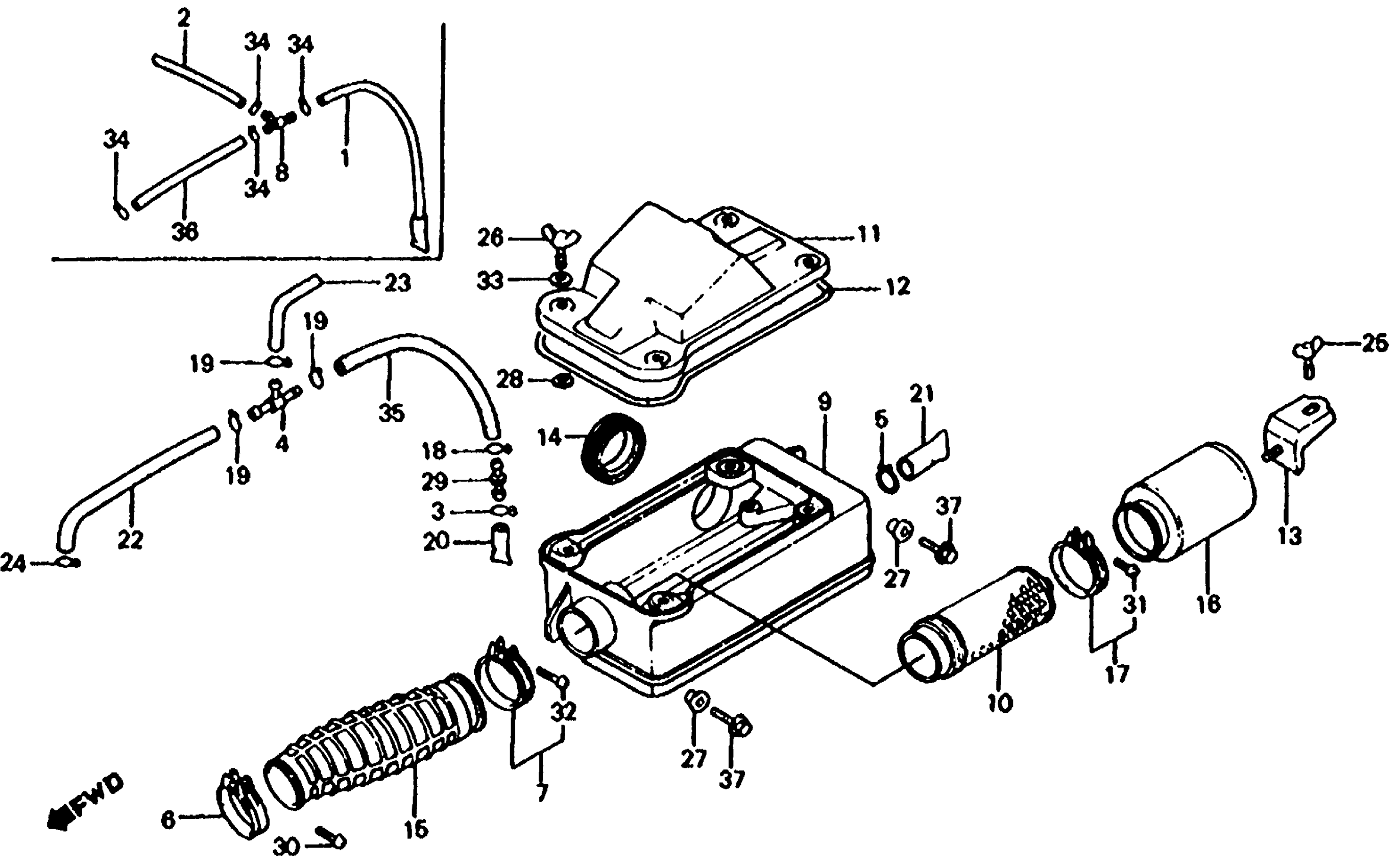

Honda TRX125A (86) FOURTRAX 125, JPN, VIN# JH3TE050-GC100001 AIR CLEANER Diagram

#

Description
Price

3

CLIP, BREATHER TUBE

15772-292-010

$2.80

4

JOINT, BREATHER (THREE-WAY)

15772-376-000

$17.75

5

CLIP, BREATHER TUBE

15772-500-010

$3.64

5

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.64

6

BAND, INSULATOR

16223-317-000

Unavailable

7

BAND, INSULATOR

16219-ME9-000

$9.24

7

BAND, INSULATOR This part replaces 16223-413-000.

16219-ME9-000

$9.24

9

HOUSING, AIR CLEANER (NOT AVAILABLE)

17210-943-000

Unavailable

10

BODY, AIR CLEANER

17211-958-033

Unavailable

11

LID, AIR CLEANER HOUSING (NOT AVAILABLE)

17217-943-000

Unavailable

12

SEAL, AIR CLEANER COVER (NOT AVAILABLE)

17219-943-000

Unavailable

13

STAY, AIR CLEANER ELEMENT (NOT AVAILABLE)

17221-943-000

Unavailable

14

SEAL, AIR CLEANER INLET (NOT AVAILABLE)

17251-VM6-000

Unavailable

15

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-VM6-000

Unavailable

16

ELEMENT, AIR CLEANER

17254-958-013

$19.70

17

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-961-000.

95018-56200

$8.57

17

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$8.57

17

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$8.57

18

CLIP, BREATHER TUBE

17316-HA0-000

$4.32

19

CLIP, BREATHER TUBE

17316-611-000

$8.28

20

TUBE, DRAIN

17358-170-000

$3.49

21

TUBE, DRAIN (NOT AVAILABLE)

17358-943-000

Unavailable

22

TUBE, BREATHER (UPPER) (NOT AVAILABLE)

17562-VM6-680

Unavailable

23

TUBE B, BREATHER

17563-VM6-680

Unavailable

24

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

25

BOLT, WING This part replaces 90105-958-680.

90105-958-405

Unavailable

26

BOLT, AIR CLEANER COVER (NOT AVAILABLE)

90143-958-000

Unavailable

27

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.77

28

E-RING (5MM)

90651-719-000

$1.70

29

JOINT, TUBE

91463-393-780

$1.64

30

SCREW, PAN (4X16)

93500-04016-0H

$0.75

31

SCREW, PAN (5X20)

93500-05020-0A

$0.75

32

SCREW, PAN (5X20)

93500-05020-0G

$0.75

33

WASHER, PLAIN (6MM)

94101-06800

Unavailable

35

BULK HOSE, VACUUM (12X1000) (12X135)

95005-12001-30M

Unavailable

37

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.48

37

BOLT, FLANGE (6X12)

95701-06012-08

$1.48
