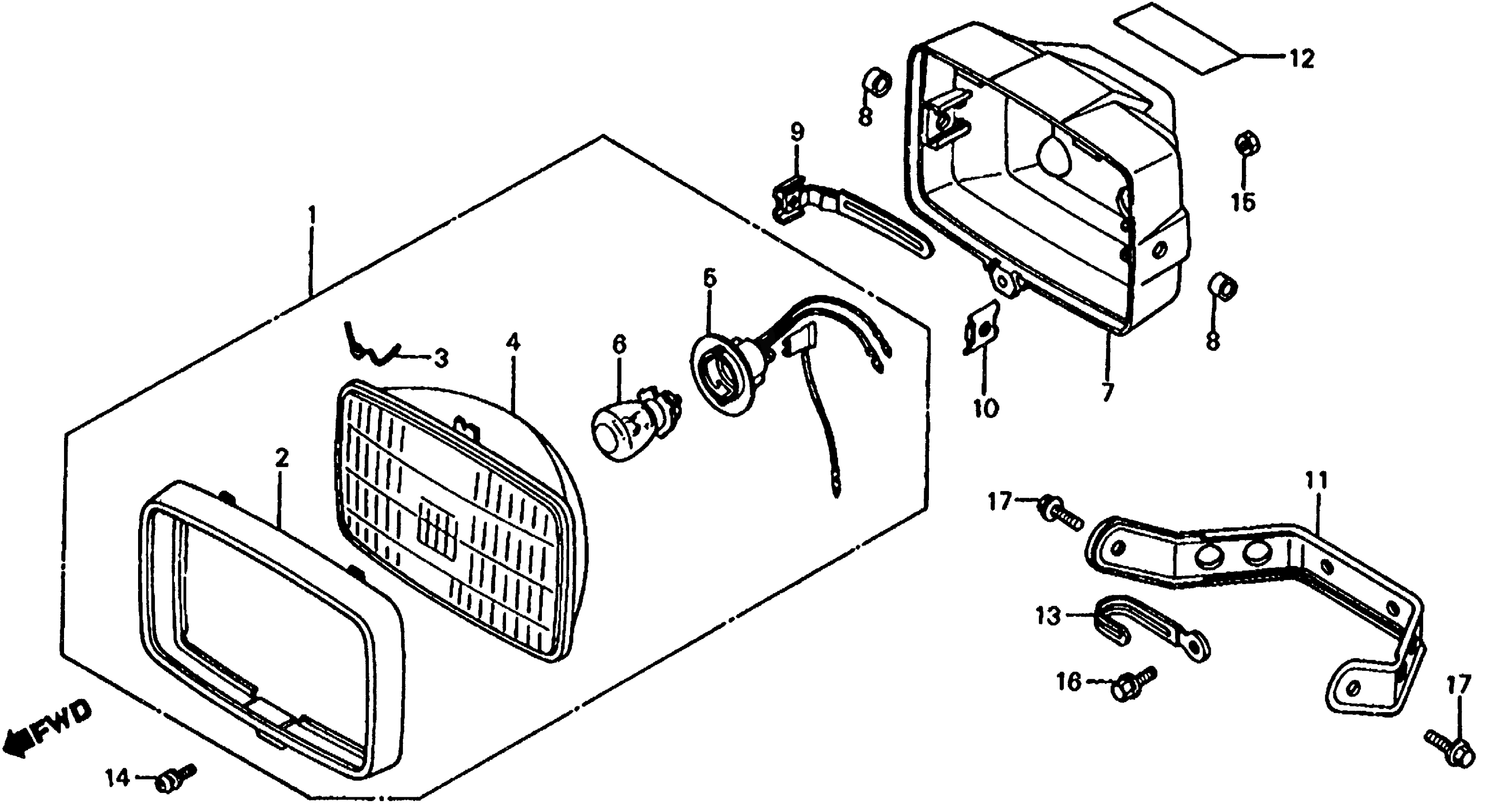

Honda TRX125A (85) FOURTRAX 125, JPN, VIN# JH3TE050-FC000005 TO JH3TE050-FC046927 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-VM4-003

Unavailable

2

RIM, HEADLIGHT

33101-943-003

Unavailable

3

SPRING, UNIT HOLDER

33109-943-003

Unavailable

4

HEADLIGHT UNIT (NOT AVAILABLE)

33120-943-003

Unavailable

5

SOCKET, HEADLIGHT (NOT AVAILABLE)

33130-943-013

Unavailable

6

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-HB6-003.

34901-HC3-003

$10.57

6

BULB, HEADLIGHT (12V45/45W) (STANLEY)

34901-HC3-003

$10.57

6

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-323-750.

34901-HC3-003

$10.57

7

CASE, HEADLIGHT (NOT AVAILABLE)

61301-VM6-000

Unavailable

8

COLLAR, HEADLIGHT CASE

61302-229-300

Unavailable

9

NUT, HEADLIGHT CASE

61303-VM6-000

Unavailable

10

NUT, HEADLIGHT CASE

61303-105-000

$3.81

11

BRACKET, HEADLIGHT CASE (NOT AVAILABLE)

61311-VM6-000

Unavailable

12

LABEL, USE CAUTION (NOT AVAILABLE)

87504-VM5-000

Unavailable

13

CLIP, WIRE HARNESS

91404-VM6-000

$6.25

14

SCREW-WASHER (5X12)

93892-05012-00

$1.49

15

NUT, HEX. (5MM)

94001-050800S

$1.49

16

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

16

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

17

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

17

BOLT, FLANGE (8X16) This part replaces 95800-08016-00.

95701-08016-00

$1.80

17

BOLT, FLANGE (8X16) This part replaces 95801-08016-00.

95701-08016-00

$1.80
