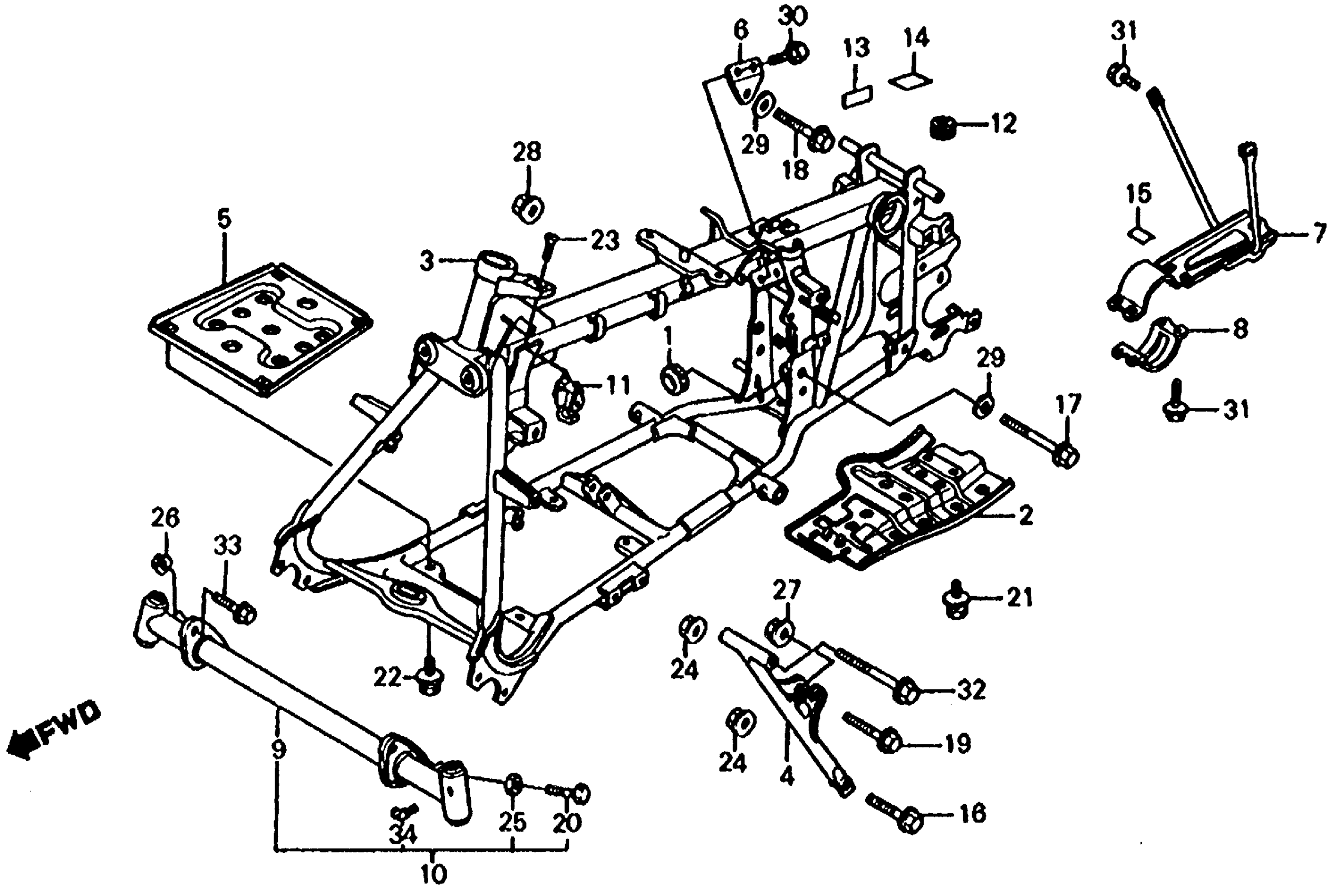

Honda TRX125A (85) FOURTRAX 125, JPN, VIN# JH3TE050-FC000005 TO JH3TE050-FC046927 FRAME Diagram

#

Description
Price

1

GROMMET, WIRE

32176-VM6-000

Unavailable

2

PLATE, PROTECTOR (NOT AVAILABLE)

40528-VM6-000

Unavailable

3

FRAME

50100-VM6-000

Unavailable

4

PIPE, DOWN (NOT AVAILABLE)

50102-VM6-000

Unavailable

5

PLATE, FR. PROTECTOR

50180-VM6-000

Unavailable

6

HANGER, ENGINE (NOT AVAILABLE)

50351-VM6-000

Unavailable

7

HITCH, TRAILER

50810-VM6-000

Unavailable

8

BRACKET, HITCH (LOWER)

50812-VM6-000

Unavailable

9

PIPE, KNUCKLE (NOT AVAILABLE)

51330-VM6-000

Unavailable

12

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

13

LABEL, MAIN FUSE (NOT AVAILABLE)

87136-VM3-000

Unavailable

14

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-VM6-000

Unavailable

15

LABEL, TRAILER HITCH

87508-VM6-000

Unavailable

16

BOLT, FLANGE (10X45) This part replaces 90086-444-000.

95801-10045-08

$2.80

16

BOLT, FLANGE (10X45)

95801-10045-08

$2.80

17

BOLT, FLANGE (10X110)

90116-VM6-003

Unavailable

18

BOLT, FLANGE (10X122)

90018-KY4-900

Unavailable

18

BOLT, FLANGE (10X122) This part replaces 90117-VM6-003.

90018-KY4-900

Unavailable

19

BOLT, FLANGE (8X55)

90119-VM6-003

$7.05

20

BOLT, HEX. (10X35)

90131-VM6-003

Unavailable

21

BOLT-WASHER (8X16)

90155-964-670

Unavailable

22

BOLT-WASHER (8X12)

90156-964-670

Unavailable

24

NUT, SELF-LOCK (10MM)

90212-SA5-003

$1.49

25

NUT, HEX. (10MM) (NOT AVAILABLE)

90236-KA2-680

Unavailable

26

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

27

NUT, FLANGE (8MM)

94050-08000

$1.49

28

NUT, FLANGE (10MM)

94050-10000

$1.59

29

WASHER, PLAIN (10MM)

94101-10000

$1.49

30

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

30

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

31

BOLT, FLANGE (8X16) This part replaces 95700-08016-08.

95701-08016-08

$1.80

31

BOLT, FLANGE (8X16)

95701-08016-08

$1.80

31

BOLT, FLANGE (8X16) This part replaces 95900-08016-0B.

95701-08016-08

$1.80

31

BOLT, FLANGE (8X16) This part replaces 95900-08016-08.

95701-08016-08

$1.80

31

BOLT, FLANGE (8X16) This part replaces 96500-08016-08.

95701-08016-08

$1.80

32

BOLT, FLANGE (10X100) This part replaces 95700-10100-08.

95701-10100-08

$1.49

32

BOLT, FLANGE (10X100)

95701-10100-08

$1.49

33

BOLT, FLANGE (12X25) This part replaces 95700-12025-08.

95701-12025-08

$3.01

33

BOLT, FLANGE (12X25)

95701-12025-08

$3.01
