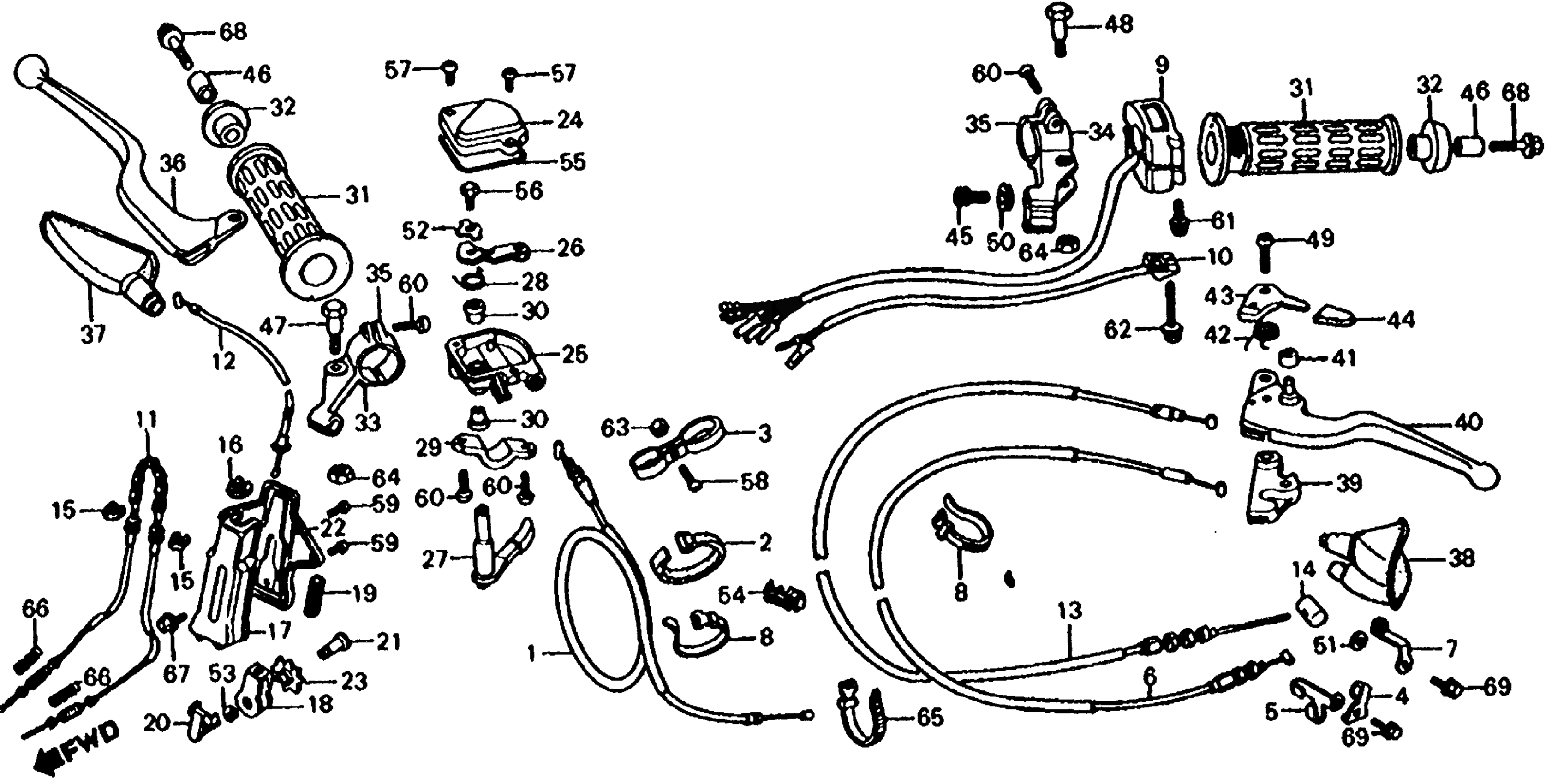

Honda TRX125A (85) FOURTRAX 125, JPN, VIN# JH3TE050-FC000005 TO JH3TE050-FC046927 CONTROL LEVERS + SWITCHES + CABLES 85 Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-VM6-000

Unavailable

2

BAND, THROTTLE CABLE (NOT AVAILABLE)

17914-958-010

Unavailable

3

GUIDE, THROTTLE CABLE (NOT AVAILABLE)

17916-958-000

Unavailable

4

STAY, WIRE (NOT AVAILABLE)

22835-VM6-000

Unavailable

5

CLIP, WIRE (NOT AVAILABLE)

22836-VM6-000

Unavailable

6

CABLE, REVERSE ASSIST

22880-VM6-000

Unavailable

7

LEVER, REVERSE STOPPER (NOT AVAILABLE)

24865-VM6-000

Unavailable

8

BAND B1, CABLE

32161-404-000

$2.23

9

SWITCH ASSY., LIGHTING & ENGINE STOP (NOT AVAILABLE)

35200-VM6-000

Unavailable

10

SWITCH ASSY., STARTING

35250-958-681

Unavailable

11

CABLE ASSY., FR. BRAKE SECOND

43440-VM6-000

Unavailable

12

CABLE, BRAKE INSTRUMENT

43450-VM6-000

Unavailable

13

CABLE, BRAKE This part replaces 43460-VM6-000.

43460-VM6-680

Unavailable

13

CABLE, BRAKE

43460-VM6-680

Unavailable

14

JOINT, BRAKE CABLE

43473-918-000

Unavailable

15

GROMMET, CABLE

47512-196-000

Unavailable

16

GROMMET, RR. BRAKE (1ST)

47520-GAG-750

Unavailable

16

GROMMET, RR. BRAKE (1ST) This part replaces 47520-196-000.

47520-GAG-750

Unavailable

17

BOX, EQUALIZER This part replaces 47601-VM6-000.

47601-196-000

Unavailable

17

BOX, EQUALIZER

47601-196-000

Unavailable

18

PLATE, EQUALIZER

47604-196-000

Unavailable

19

SPRING, CABLE RETURN (NOT AVAILABLE)

47605-VM6-000

Unavailable

20

PIN, EQUALIZER GUIDE

47606-196-000

Unavailable

21

PIN, EQUALIZER

47607-196-000

Unavailable

22

COVER, EQUALIZER BOX (NOT AVAILABLE)

47609-VM6-000

Unavailable

23

SPROCKET, EQUALIZER

47610-196-003

Unavailable

24

COVER, THROTTLE

53141-965-000

Unavailable

25

CASE, THROTTLE (NOT AVAILABLE) This part replaces 53142-965-010.

53142-965-020

Unavailable

25

CASE, THROTTLE (NOT AVAILABLE)

53142-965-020

Unavailable

26

ARM, THROTTLE (NOT AVAILABLE)

53144-965-000

Unavailable

27

CONTROL LEVER, THROTTLE (NOT AVAILABLE)

53145-965-003

Unavailable

28

SPRING, THROTTLE RETURN (NOT AVAILABLE)

53146-965-000

Unavailable

29

HOLDER, THROTTLE CASE

53147-965-000

Unavailable

30

BUSH, THROTTLE LEVER (NOT AVAILABLE)

53148-965-003

Unavailable

31

GRIP, HANDLEBAR (NOT AVAILABLE)

53166-943-000

Unavailable

32

GUARD, HANDLEBAR END

53167-958-680

$6.40

33

BRACKET, R. CONTROL LEVER (NOT AVAILABLE)

53171-VM6-000

Unavailable

34

BRACKET, BRAKE LEVER (NOT AVAILABLE)

53172-VM6-000

Unavailable

35

HOLDER, LEVER BRACKET

53173-958-000

$10.59

36

LEVER, R. HANDLEBAR

53175-VM6-000

Unavailable

37

COVER, R. HANDLE LEVER (NOT AVAILABLE)

53176-VM6-000

Unavailable

38

COVER, L. HANDLEBAR (NOT AVAILABLE)

53177-VM6-000

Unavailable

39

ARM, REVERSE ASSIST

53179-VM6-000

Unavailable

40

LEVER, RR. BRAKE This part replaces 53180-VM6-000.

53180-VM6-405

Unavailable

40

LEVER, RR. BRAKE

53180-VM6-405

Unavailable

41

CAP, REVERSE PIN

53187-VM6-000

$3.89

42

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

43

LEVER, PARKING LOCK

53192-HA0-770

Unavailable

43

LEVER, PARKING LOCK This part replaces 53192-VM6-000.

53192-HA0-770

Unavailable

44

CAP, PARKING LEVER

53193-HA0-770

$6.16

44

CAP, PARKING LEVER This part replaces 53193-VM6-000.

53193-HA0-770

$6.16

45

BOLT, WIRE ADJUSTING

53193-968-000

$14.08

46

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

47

BOLT, CONTROL LEVER PIVOT

90113-VM6-000

Unavailable

48

BOLT, HANDLE LEVER PIVOT

90114-HA0-770

$2.56

48

BOLT, HANDLE LEVER PIVOT This part replaces 90114-VM6-000.

90114-HA0-770

$2.56

49

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

50

NUT, FIXING

90321-315-670

$7.31

50

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

51

WASHER (10X24)

90414-GE0-000

$2.89

52

WASHER, LOCK (5MM) (NOT AVAILABLE)

90501-965-000

Unavailable

53

CIRCLIP (7MM)

90605-166-720

$1.80

54

CLIP, CORD (NOT AVAILABLE)

90686-VM6-003

Unavailable

55

O-RING, THROTTLE CASE (NOT AVAILABLE)

91351-965-000

Unavailable

56

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

56

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

56

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

57

SCREW, PAN (4X10)

93500-04010-0G

$1.49

58

SCREW, PAN (4X20)

93500-04020-0A

$1.49

58

SCREW, PAN (4X20) This part replaces 93500-04020-1A.

93500-04020-0A

$1.49

59

SCREW, PAN (5X12)

93500-05012-0A

$1.49

60

SCREW, PAN (5X18)

93500-05018-0A

$1.49

61

SCREW-WASHER (5X20)

93892-05020-07

$1.49

62

SCREW-WASHER (5X40)

93892-05040-07

Unavailable

63

NUT, HEX. (4MM)

94001-04000-0S

$1.49

64

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

64

NUT, HEX. (6MM)

94001-06200-0S

$1.49

65

BAND B1, CABLE

95014-62100

$1.64

66

SPRING B, BRAKE ROD

95014-73200

Unavailable

67

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

67

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

68

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

68

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

69

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

69

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
