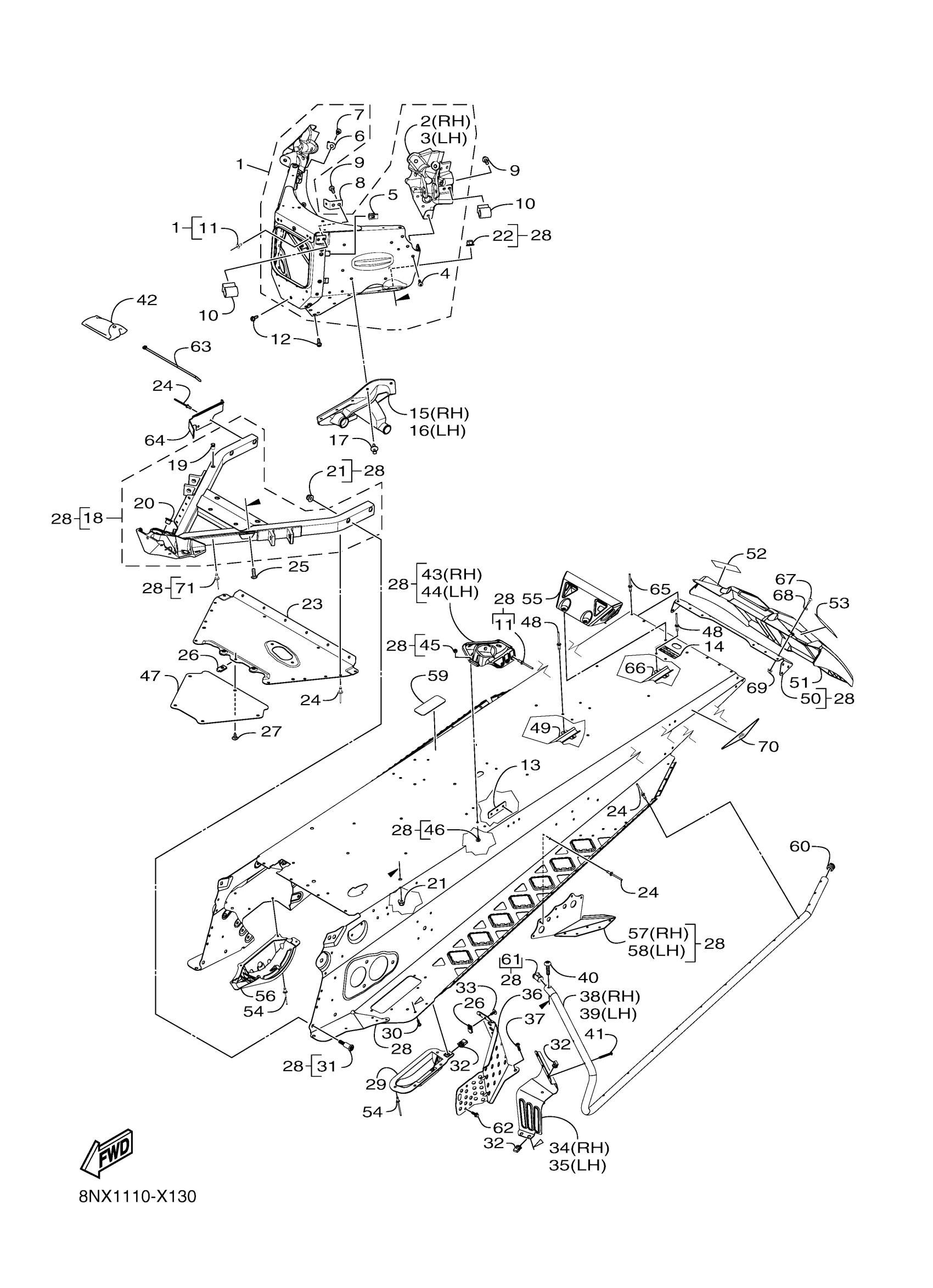

Yamaha TRT4NRB (TRANSPORTER LITE 2 UP) 8NX5 2024 FRAME Diagram
#
1
BULKHEAD
8NS-F191A-00-00
$506.99
2
HOLDER,ABSORBER 2
8KG-F377J-00-00
Unavailable
3
HOLDER,ABSORBER
8KG-F376J-00-00
Unavailable
4
SCREW, M6X1X16
8JP-RA271-00-00
$0.96
5
NUT, CLIP M6
8JP-RA354-00-00
$0.96
6
BRACKET
8ML-E4744-00-00
Unavailable
7
. SCREW, TAPPING
8JP-RA281-00-00
Unavailable
8
GUSSET
8JP-F1138-00-00
Unavailable
9
BOLT, FLG. M6X1.0X
8JP-RA180-00-00
Unavailable
10
BRACKET, UPPER
8JP-F2219-00-00
Unavailable
11
RIVET, 3/16
8JP-RA527-00-00
$2.22
12
SCREW, TAPPING
8JP-RA201-00-00
$0.85
13
PLATE 1
8NT-F191B-00-00
$4.56
14
LABEL, PULLING LOAD LIMIT
8NU-F817S-00-00
Unavailable
15
COVER 3
8JP-F198J-00-00
Unavailable
16
COVER 1
8JP-F198F-00-00
Unavailable
17
RIVET, 2
8JP-RA511-00-00
Unavailable
18
FRAME UNDER 1
8NT-F196A-00-00
Unavailable
19
NUT, HEXAGON
8NT-RA331-00-00
Unavailable
20
BEARING, STEERING
8NS-F3812-00-00
Unavailable
21
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
22
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
23
PANEL, UNDER
8NT-F114G-00-00
Unavailable
24
RIVET, 9
8JP-RA518-00-00
Unavailable
25
SCREW, M6X1.0X20
8JP-RA258-00-00
Unavailable
26
NUT, CLIP
8JP-RA349-00-00
Unavailable
27
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
28
REAR FRAME COMP.
8NW-F1950-10-00
Unavailable
29
PROTECTOR, DISK BR
8JP-F5717-00-00
Unavailable
30
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
31
SCREW, M8X1.25X44.
8JP-RA275-10-00
Unavailable
32
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
33
SCREW, TAPPING 1/4
8JP-RA202-00-00
Unavailable
34
REINFORCEMENT SUB
8JW-F1996-40-00
Unavailable
35
REINFORCEMENT SUB FRAME FR 1
8JW-F1995-40-00
Unavailable
36
PROTECTOR, DISK BR
8JW-F5718-60-00
Unavailable
37
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
38
REINFORCEMENT, FRAME
8NU-F192E-00-00
Unavailable
39
REINFORCEMENT, FRA
8NU-F1929-00-00
Unavailable
40
SCREW, M8X1.25X35
8JP-RA273-00-00
Unavailable
41
SCREW, M5X0.8X35
8JP-RA247-00-00
Unavailable
42
TOOL KIT
8NT-F8100-00-00
Unavailable
43
BRKT., MEMBER 2
8JW-F115M-00-00
Unavailable
44
. BRACKET, MEMBER 1
8JW-F115L-00-00
Unavailable
45
. NUT, HEX LOCKING
8JP-RA370-00-00
Unavailable
46
SCREW, M5X0.8X12
8JP-RA241-00-00
Unavailable
47
PANEL, UNDER
8JP-F114G-00-00
Unavailable
48
RIVET, 17
8JP-RA529-00-00
Unavailable
49
EXTENSION, WIRE HA
8KT-H258A-10-00
Unavailable
50
REINEFORCEMENT, FR
8NU-F1923-00-00
Unavailable
51
FLAP
8NU-K7595-00-00
Unavailable
52
LABEL, WARNING 2
8JP-K7762-S0-00
Unavailable
53
LABEL, WARNING 2
8JP-K7762-70-00
Unavailable
54
RIVET, 15
8JP-RA524-00-00
Unavailable
55
BRACKET, TAILLIGHT
8JW-F117E-10-00
Unavailable
56
PROTECTOR, CHAIN
8JP-F2147-00-00
Unavailable
57
BRACKET,RR.TRACK S
8NU-F1954-00-00
Unavailable
58
BRACKET,RR.TRACK S
8NU-F1944-00-00
Unavailable
59
PROTECTOR, FRAME A
8LN-F195A-00-00
Unavailable
60
PLUG, HOLE
8NT-F312G-00-00
Unavailable
61
SPACER
8NT-F1998-00-00
Unavailable
62
BOLT, FLG. M6X1.0X
8JP-RA179-00-00
Unavailable
63
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
64
BRACKET,1
8ND-F194X-00-00
Unavailable
65
RIVET, 3/16
8JP-RA526-00-00
Unavailable
66
PROTECTER, WIRE HA
8KT-H2589-10-00
Unavailable
67
SCREW, 5
8LJ-RA239-00-00
Unavailable
68
WASHER, PLAIN 0.19
8ML-RA411-00-00
Unavailable
69
NUT, FLG. LOCKING
8JP-RA363-00-00
Unavailable
70
LABEL 1
8JP-F151A-10-00
Unavailable
71
RIVET, 11
8JP-RA520-00-00
Unavailable
