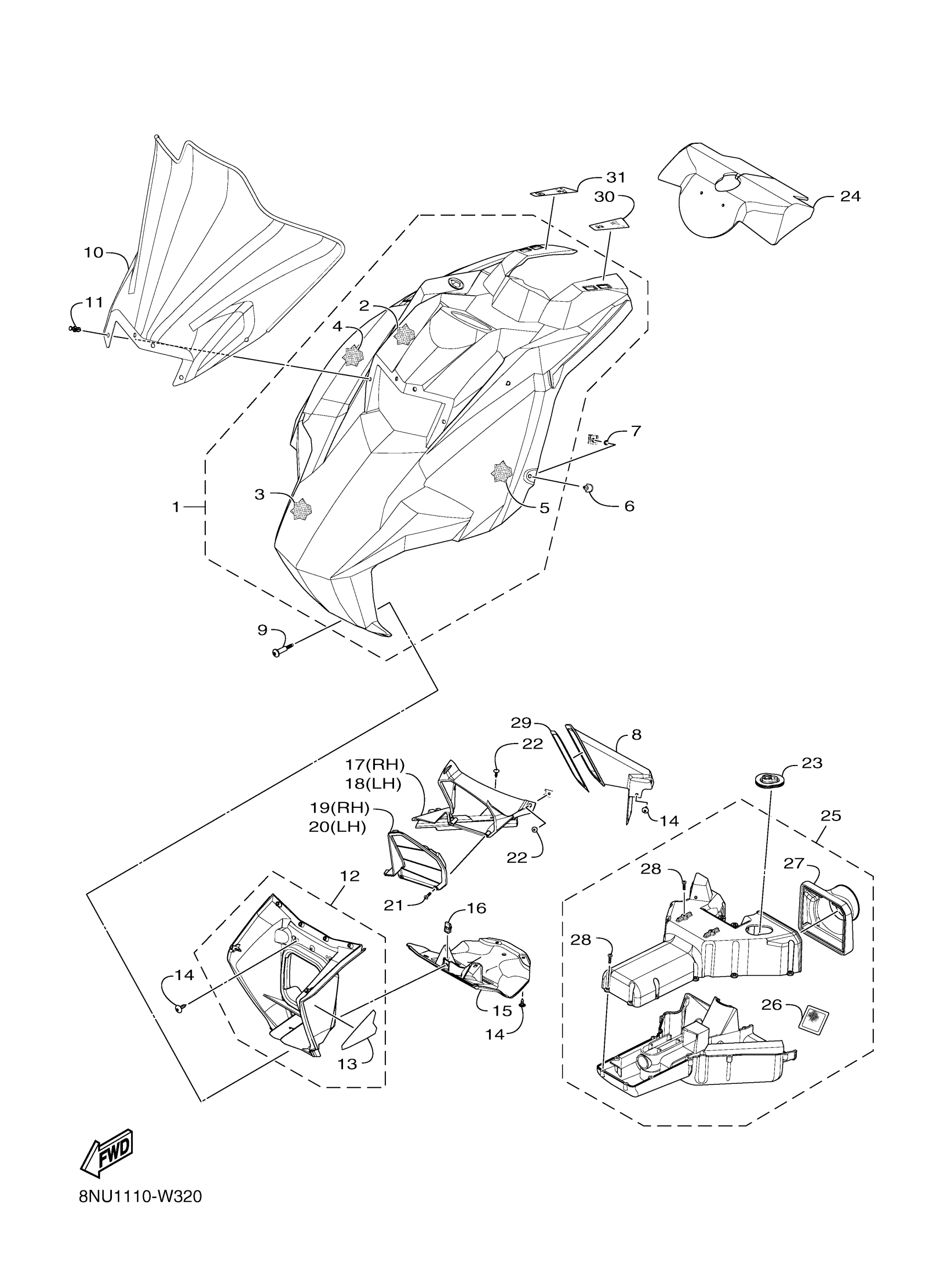

Yamaha TRT4NPB (TRANSPORTER LITE 2UP) 8NX3 2023 SHROUD Diagram
#
1
FRONT HOOD ASSY
8NU-K7120-00-00
$263.99
2
DAMPER, NOISE 12
8NT-K7272-00-00
$14.99
3
DAMPER, NOISE 18
8NT-K7278-00-00
$19.99
4
DAMPER, NOISE 15
8NT-K7275-00-00
$14.99
5
DAMPER, NOISE 19
8NT-K7279-00-00
$14.99
6
PIN, 2
8JP-RAK02-00-00
$26.99
7
NUT, 1
8JP-RA345-00-00
Unavailable
8
DUCT
8NT-E4437-00-00
$31.99
9
SCREW
8NT-RA265-00-00
$9.49
10
WINDSHIELD COMP.
8NU-K7210-00-00
Unavailable
11
RIVET 2
8ML-RA511-01-00
$1.11
12
DUCT, INTAKE
8ND-R1311-30-00
Unavailable
13
TAPE, REFLECTOR
8JP-H5133-00-00
$15.99
14
SCREW, 10-12X3/4
8KC-RA290-00-00
$1.86
15
COVER, FRONT
8ND-F2865-00-00
Unavailable
16
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
17
VENT, FRONT 2
8ND-K715J-00-00
Unavailable
18
VENT, FRONT 1
8ND-K715H-00-00
Unavailable
19
BEZEL, VENT 2
8KC-K715M-00-00
Unavailable
20
BEZEL, VENT 1
8KC-K715L-00-00
Unavailable
21
SCREW, 4
8KC-RA238-00-00
Unavailable
22
SCREW, TAPPING 1/4
8KC-RA202-00-00
Unavailable
23
BOOT
8ND-R1325-00-00
Unavailable
24
COVER, STEERING SH
8NT-K7732-00-00
Unavailable
25
SILENCER ASSY, INT
8NT-E4440-00-00
Unavailable
26
FILTER 1
8NT-E445E-00-00
Unavailable
27
JOINT, AIR CLEANER
8NT-E4453-00-00
Unavailable
28
SCREW, 10-14X3/4
8JP-RA289-00-00
Unavailable
29
FILTER
8NT-E4827-00-00
Unavailable
30
LABEL, CAUTION
8NT-F8446-10-00
Unavailable
31
LABEL 2
8NT-F8459-00-00
Unavailable
