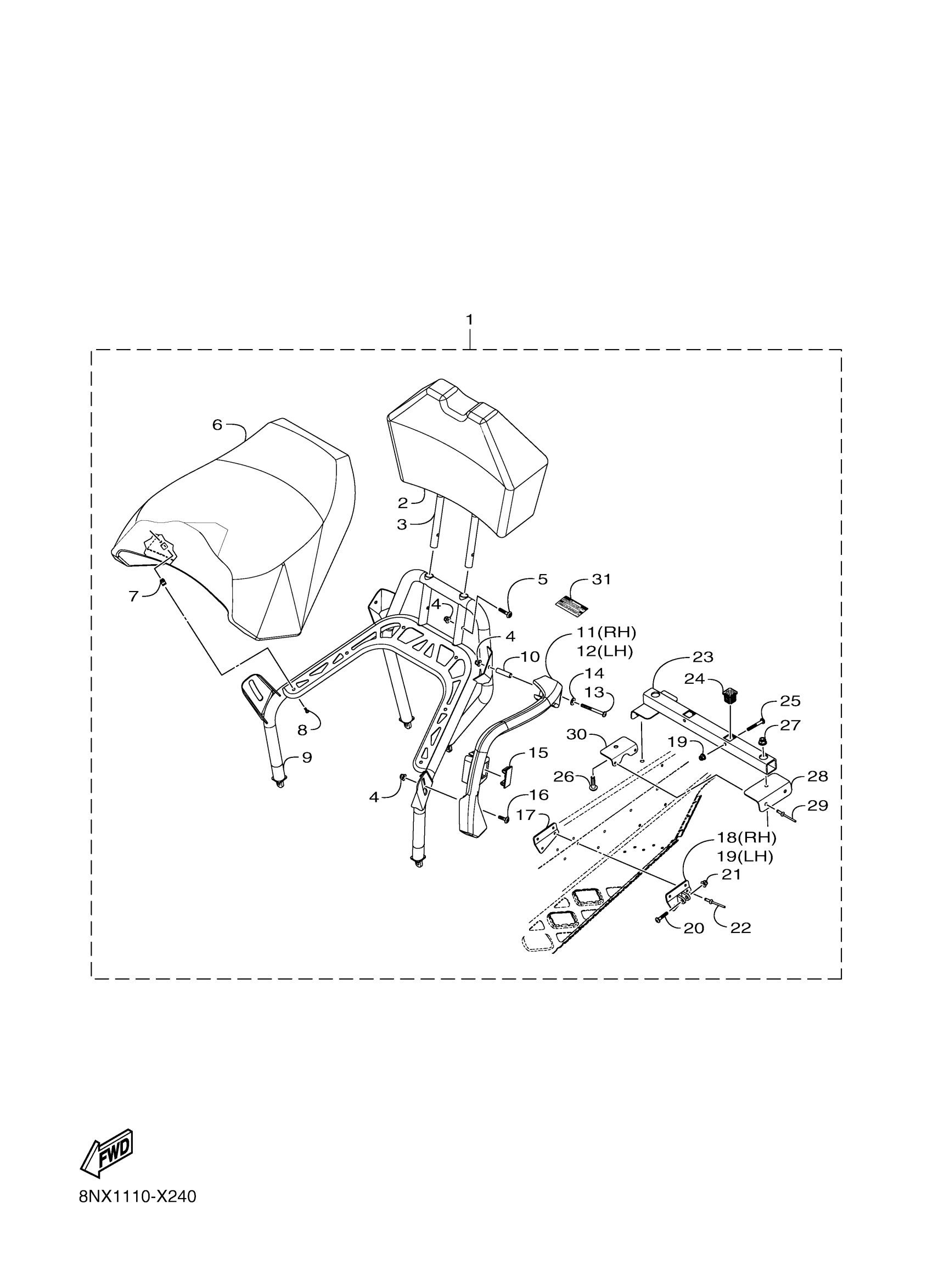

Yamaha TRT4NNB (TRANSPORTER LITE 2UP) 8NX1 2022 SEAT 2 Diagram
#
1
TANDEM SEAT KIT
8NX-F47E0-00-00
Unavailable
2
SEAT BACK ASSY
8NX-F4790-00-00
$253.99
3
BRACKET, SEAT BACK
8NX-F4797-00-00
$115.99
4
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
5
SCREW, M6X1.0X30
8JP-RA266-00-00
$1.43
6
TANDEM SEAT ASSY
8NX-F4750-00-00
Unavailable
7
NUT, CLIP M5
8JP-RA353-00-00
$3.08
8
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
9
REINFORCEMENT
8NX-F4766-00-00
Unavailable
10
. SHAFT 1
8NX-F381K-00-00
Unavailable
11
GRIP, ASSIST 2
8NX-K7572-00-00
Unavailable
12
GRIP, ASSIST 1
8MU-K7571-00-00
$281.99
13
SCREW, 10
8ND-RA299-00-00
Unavailable
14
WASHER, 1/4X0.625X
8JP-RA441-00-00
$0.33
15
PLATE, COVER
8NX-H255V-00-00
Unavailable
16
SCREW, M6X1.0X20
8JP-RA260-00-00
Unavailable
17
HANDLE, SEAT
8NX-F4761-00-00
Unavailable
18
BRACKET, ASSIST GR
8NX-F474J-00-00
Unavailable
19
BRACKET, ASSIST GR
8NX-F474H-00-00
Unavailable
20
SCREW, M6X1.0X25
8JP-RA264-00-00
Unavailable
21
NUT, FLG. LOCKING
8MV-RA357-00-00
Unavailable
22
RIVET, 20
8JP-RA532-00-00
Unavailable
23
. BRACKET, SEAT
8NX-F4718-00-00
Unavailable
24
BUSH, RACK
8JP-RA820-00-00
Unavailable
25
BOLT, FLANGE
8JP-RA1B4-10-00
Unavailable
26
SCREW
8NX-RA200-00-00
Unavailable
27
NUT, FLG. LOCKING
8MV-RA358-00-00
Unavailable
28
BRACKET, SEAT
8NX-F4728-00-00
Unavailable
29
RIVET, 3/16
8JP-RA526-00-00
Unavailable
30
BRACKET, SEAT
8NX-F4738-00-00
Unavailable
31
LABEL, WARNING PAS
8NX-F816P-00-00
Unavailable
