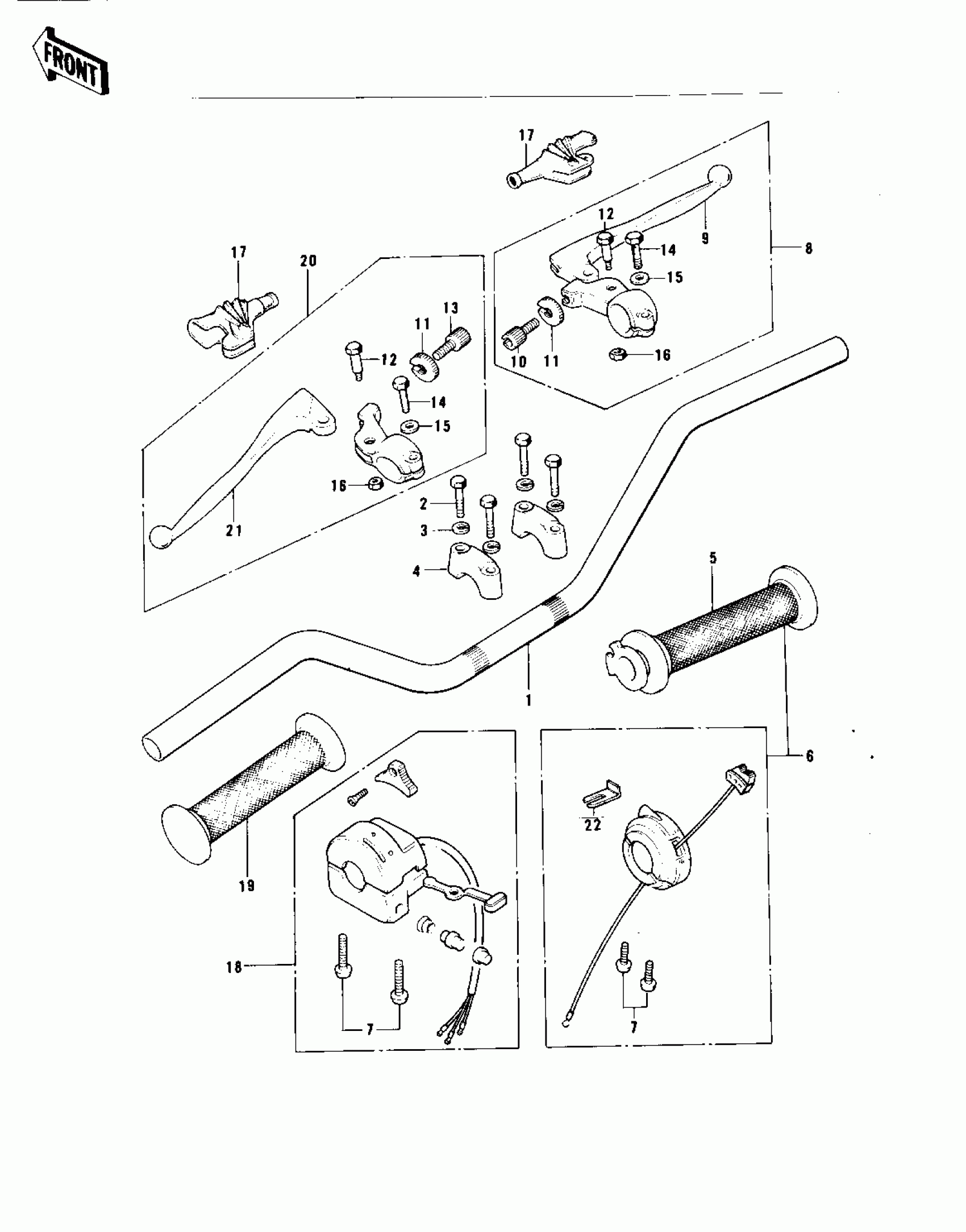

Kawasaki Trial HANDLEBAR Diagram
#
Description
Price
1
HANDLEBAR
46004-031
Unavailable
2
BOLT 8X38
92001-1405
Unavailable
3
WASHER SPRING 8MM
461F0800
Unavailable
4
HOLDER-HANDLE,UPP
46012-004
Unavailable
5
GRIP ASSY,THROTTLE
46019-036
Unavailable
6
CASE ASSY,R.H
46018-042
Unavailable
7
SCREW-PAN-CROS,5X25
220B0525
Unavailable
8
LEVER ASSY,FRNT BRAKE
46021-030
Unavailable
9
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
10
SCREW,CABLE ADJUST
46055-010
Unavailable
11
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
12
BOLT,5X22
92007-046
Unavailable
13
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
14
BOLT HEX HEAD 6X25
110N0625
Unavailable
15
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
16
NUT,LOCK,5MM
92019-014
Unavailable
17
BOOT,LEVER HOLDER
49006-1017
Unavailable
18
CASE ASSY,L.H
46091-046
Unavailable
19
RUBBER,L.H GRIP
46075-026
Unavailable
20
LEVER ASSY,CLUTCH
46076-046
Unavailable
21
LEVER-GRIP,CLUTCH
46092-015
Unavailable
22
HOLDER,CONTROL CABLE
46037-023
Unavailable
