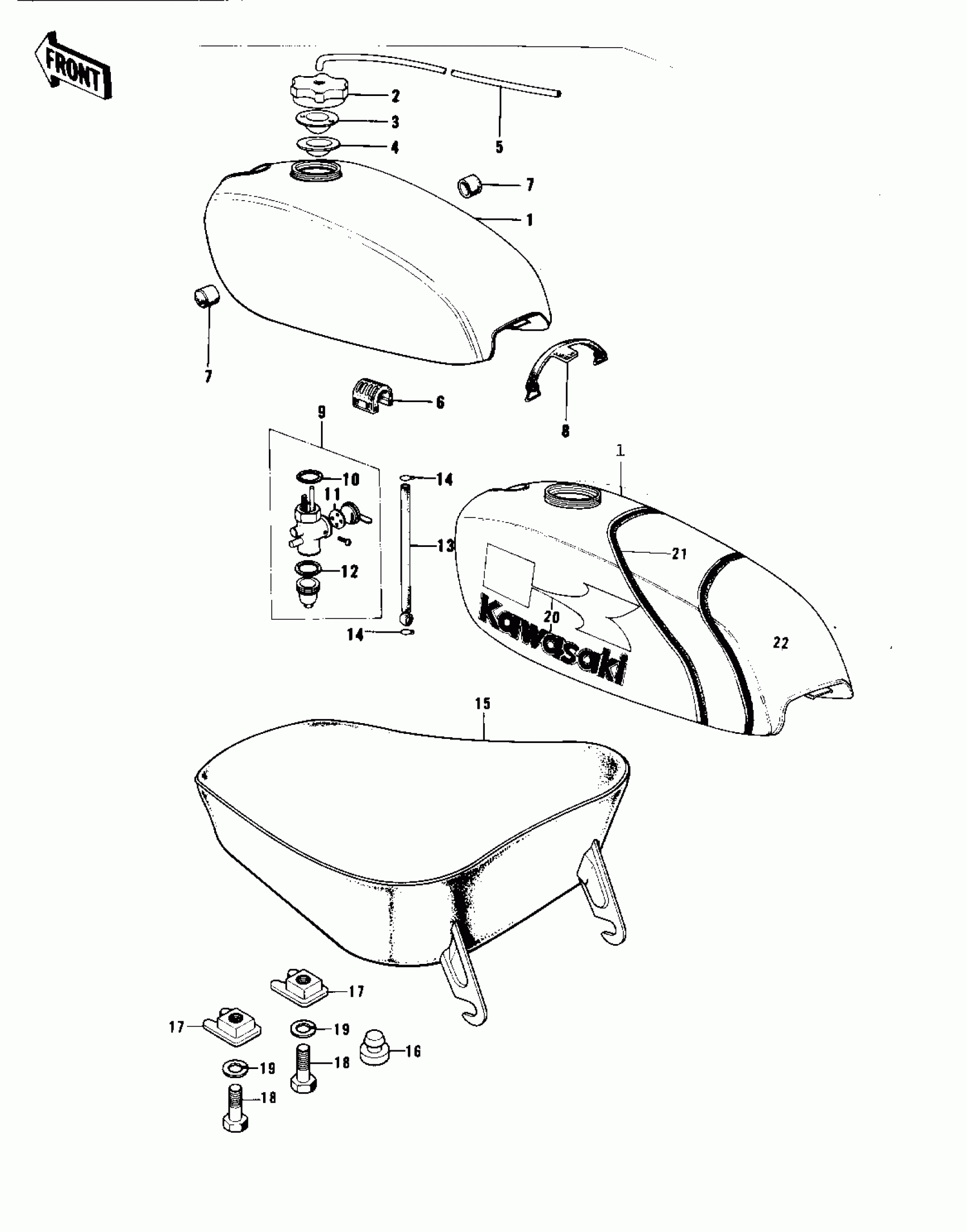

Kawasaki Trial FUEL TANK/SEAT Diagram
#
Description
Price
1
TANK-FUEL,L.GREEN
51001-103-2G
Unavailable
1
TANK-FUEL,PEARL LIME
51001-103-1Y
Unavailable
2
CAP,FUEL TANK
51049-1002
Unavailable
3
WASHER,FUEL TANK CAP
51058-004
Unavailable
4
GASKET,FUEL TANK CAP
51059-012
Unavailable
5
TUBE-PVC,5X280
700Q05280
Unavailable
6
DAMPER RUBBER,FL TNK
92075-215
Unavailable
7
DAMPER,FUEL TANK
92075-101
Unavailable
8
BAND-FUEL TANK
92072-036
Unavailable
9
TAP-ASSY,FUEL
51023-1123
Unavailable
10
GASKET,FUEL TAP JOINT
11009-1567
Unavailable
11
'O' RING FUEL COCK
92065-062
Unavailable
12
GASKET FUEL COCK CUP
51037-008
Unavailable
13
TUBE,4.5X9X220
92059-073
Unavailable
14
CLAMP,TUBE
92037-072
Unavailable
15
SEAT-ASSY
53001-110
Unavailable
16
DAMPER
92075-099
Unavailable
17
PLATE,SEAT
53014-004
Unavailable
18
BOLT HEX HEAD 8X35
110N0835
Unavailable
19
WASHER SPRING 8MM
461F0800
Unavailable
20
DECAL,FUEL TANK
56014-063-SP
Unavailable
20
DECAL,FUEL TANK
56014-063-SP
Unavailable
21
EMBLEM,FL TNK,FRONT
56027-394
Unavailable
22
EMBLEM,FL TNK,REAR
56027-459
Unavailable
