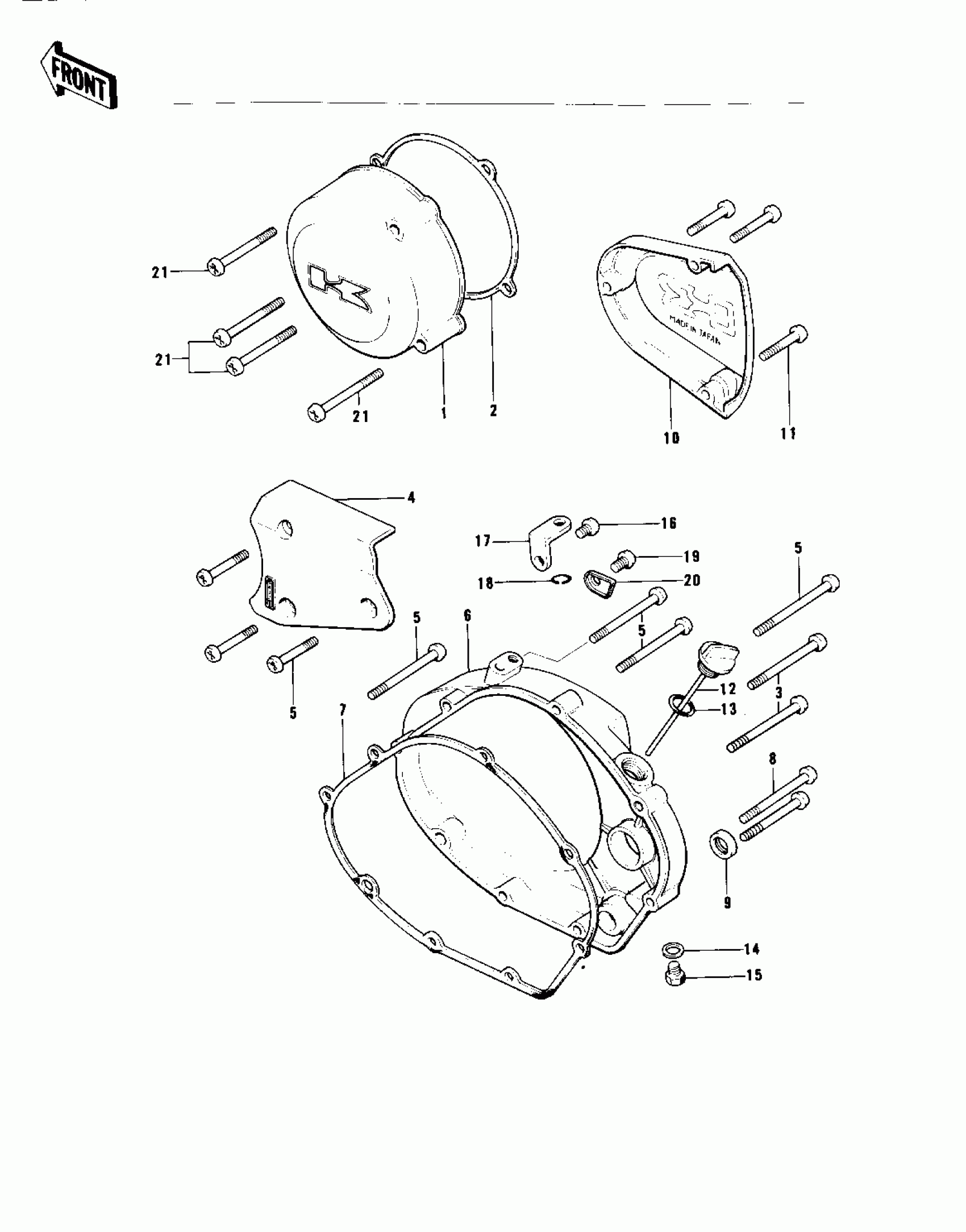

Kawasaki Trial ENGINE COVERS Diagram
#
Description
Price
1
COVER,L.H ENGINE,BUFF
14031-088-80
Unavailable
2
GASKET,L.H ENG COVER
14045-023
Unavailable
3
SCREW PAN HEAD 6X50
220B0650
Unavailable
4
COVER,CHAIN CASE,BUFF
14026-030-80
Unavailable
5
SCREW PAN HEAD 6X40
220B0640
Unavailable
6
COVER,R.H ENGINE,BUFF
14032-113-80
Unavailable
7
GASKET,R.H ENG COVER
14046-030
Unavailable
8
SCREW PAN HEAD 6X30
220B0630
Unavailable
9
SEAL-OIL,SB20285
92049-012
Unavailable
10
COVER,OIL PUMP,BUFF
14030-064-80
Unavailable
11
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
12
PLUG-OIL FILLER
16115-017
Unavailable
13
O RING,20MM
670B2020
Unavailable
14
GASKET,10.5X16X1
92065-058
Unavailable
15
PLUG,DRAIN,10X12
92067-001
Unavailable
16
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
17
HOLDER-OIL PUMP CABLE
14044-005
Unavailable
18
CIRCLIP SELD BEM FIT
482K4000
Unavailable
19
SCREW PAN HEAD 6X10
220B0610
Unavailable
20
CLAMP,OIL PUMP CABLE
92037-156
Unavailable
21
SCREW PAN HEAD 6X55
220B0655
Unavailable
