1976 Kawasaki Trial Air Cleaner/muffler Diagram

← All diagrams

Find the part on the Air Cleaner/muffler diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

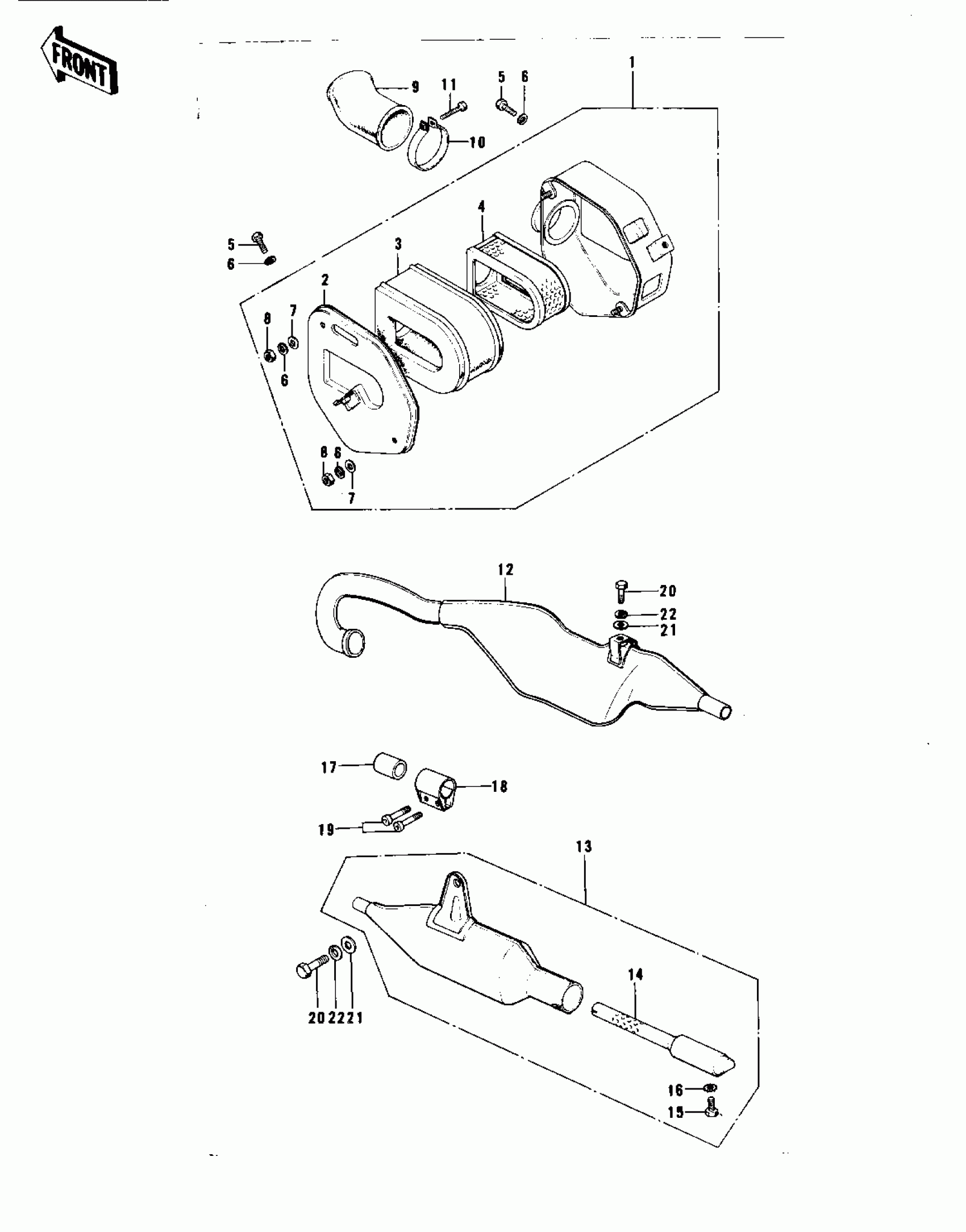

1976 Kawasaki Trial Air Cleaner/muffler Diagram

#

Description
Price
Status
Order Qty

1

AIR CLEANER ASSY

11010-092

Out of stock

2

CAP,AIR CLEANER BODY

11012-055

Out of stock

3

ELEMENT AIR CLEANER

11013-049

Out of stock

4

WIRE NET,AIR CLEANER

11014-013

Out of stock

5

BOLT-UPSET,6X12

112G0612

Out of stock

6

WASHER SPRING 6MM

461F0600

Out of stock

7

WASHER PLAIN 6MM

411B0600

Out of stock

8

NUT 6MM

311B0600

Out of stock

9

CONNECTOR,AIR CLEANER

11026-013

Out of stock

10

CLAMP-INLET PIPE

92037-061

Out of stock

11

SCREW-PAN-CROS

220B0535

$2.94

In stock

12

MUFFLER ASSY,F.BLACK

18001-152-21

Out of stock

13

SPARK ARRESTOR ASSY

18078-001-21

Out of stock

14

BAFFLE TUBE

18033-089

$112.20

In stock

15

BOLT-UPSET,6X12

112G0612

Out of stock

15

BOLT-UPSET,6X12

112G0612

Out of stock

16

WASHER LOCK 6MM

463H0600

Out of stock

17

CONNECTOR,MUFFLER

18043-014

Out of stock

18

HOLDER,MUFFLER

18044-015

Out of stock

19

SCREW-PAN-CROS,6X16

220B0616

Out of stock

20

BOLT,10X18

110B1018

Out of stock

20

BOLT,HEX HEAD,10X18

113G1018

Out of stock

21

WASHER PLAIN 10MM

410B1000

Out of stock

22

WASHER SPRING 10MM

461F1000

Out of stock
