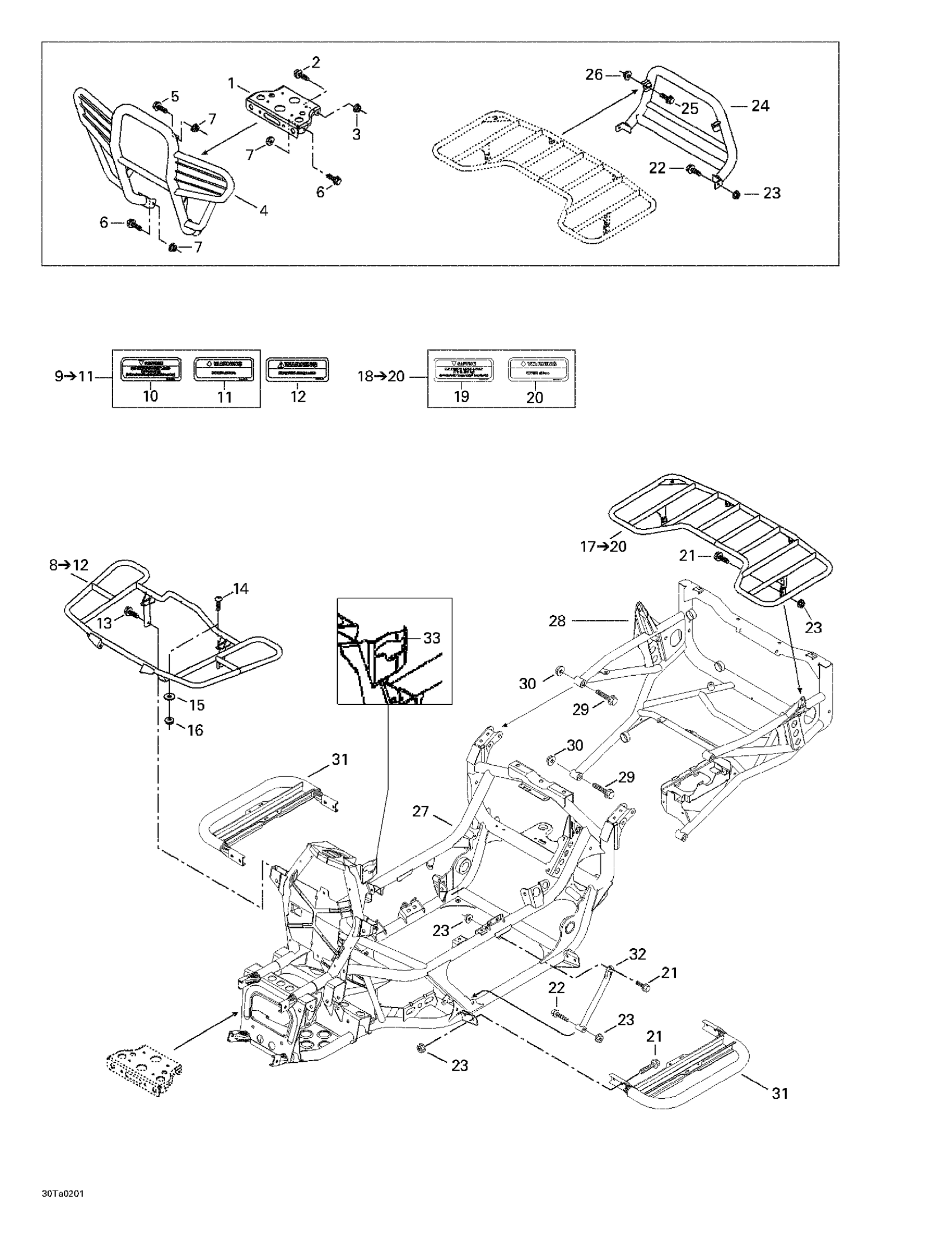

Can-Am Traxter XT, 2002 09- Frame And Luggage Racks Diagram

#

Description
Price

1

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Front Bumper | 7423/7424 (XT-Yellow/Jaune).

705000175

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

Unavailable

6

Hex. Flange Screw M8 X 25

207682544

Unavailable

7

Hex. Flange Elastic Nut M8

233281414

Unavailable

8

Front Luggage Rack Ass'y | 7415/7416. 7417/7418.

703500053

Unavailable

9

Warning Label, Front Load | Includes 8 - 9.

704900037

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Warning Label, Tray Cover

704900038

Unavailable

13

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

14

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

15

Flat Washer

224060201

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Rear Luggage Rack Ass'y | Includes 14 - 16.

703500059

Unavailable

18

Warning Label | Includes 6 - 7.

704900036

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Hex. Flange Screw M8 X 20

207682044

Unavailable

22

Hex. Flange Screw M8 X 50

207685044

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

Unavailable

24

Rear Bumper | 7423/7424 (XT-Yellow/Jaune).

705000166

Unavailable

25

Hex. Flange Screw M8 X 20

207682046

Unavailable

26

Hex. Elastic Flange Nut M8

233281416

Unavailable

27

Frame | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705200411

Unavailable

28

Frame Extention

705200254

Unavailable

29

Hex. Flange Screw M10 X 55

207605544

Unavailable

30

Hex. Flange Elastic Nut M10

233201414

Unavailable

31

Footrest (silver)

705000008

Unavailable

32

Removable Brace, Black

705200143

Unavailable

33

Shift Patern

705200351

Unavailable
