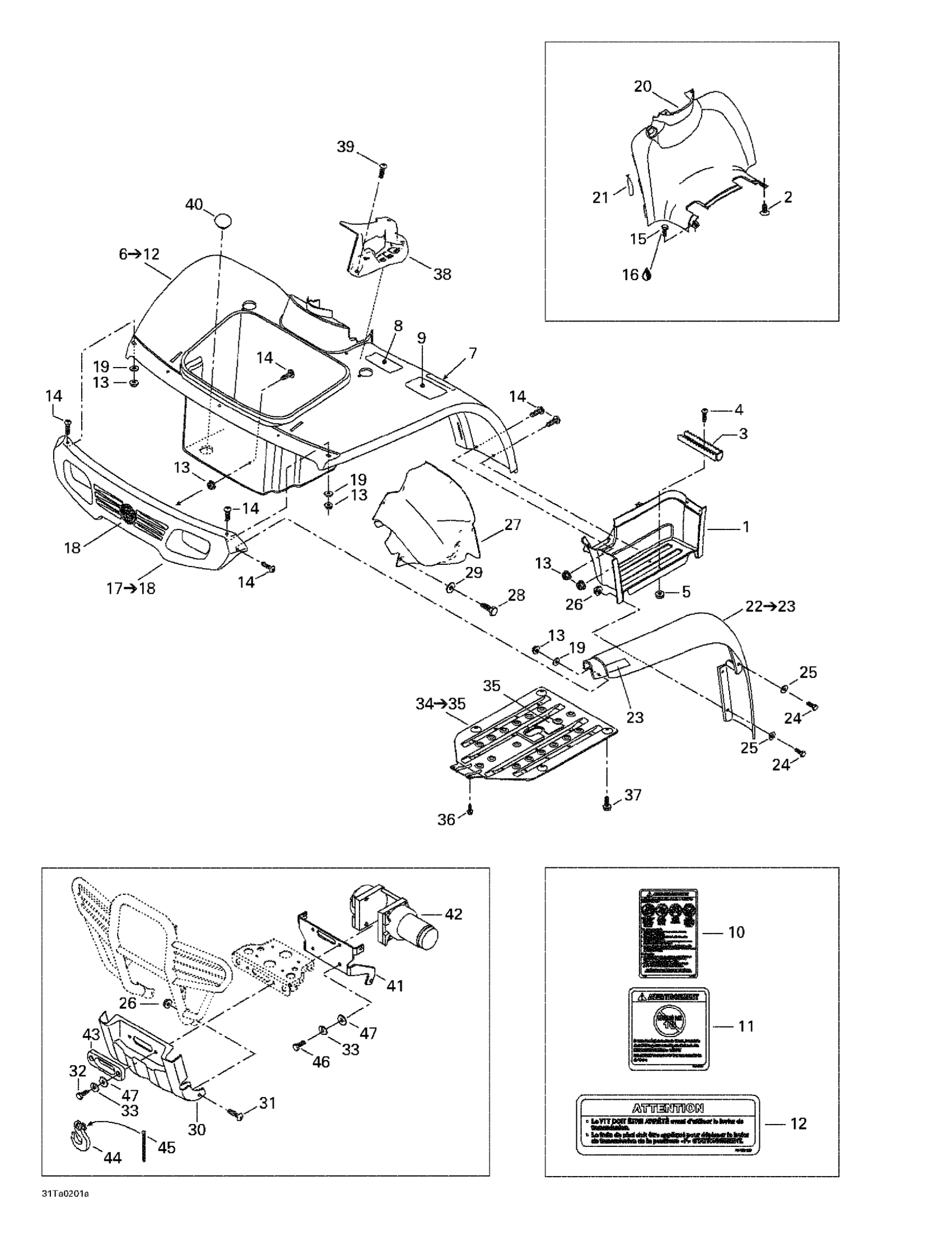

Can-Am Traxter XT, 2002 09- Body And Accessories, Front View Diagram

#

Description
Price

1

RH Footboard, Black

705000017

Unavailable

LH FOOTBOARD, BLACK - Call your local BRP dealership

705000018

Unavailable

2

Black, Dart

293730011

Unavailable

3

Foot Pegs | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705000279

Unavailable

4

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

6

Front Fender Kit (Yellow) | (XT Yellow 7468 - 7472) Traxter XT.

703500140

Unavailable

Front Fender Kit (Green) | (XT Green 7467 - 7481) Traxter XT.

703500142

Unavailable

7

Warning Label | Includes 9 - 10.

704900034

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

10

Warning Decal, Death And Injuries

704900002

Unavailable

11

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

12

Caution Decal, Transmission Selector | French version

704900008

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

15

Hex. Flange Screw M6 X 12

207661244

Unavailable

16

Loctite 243, 10 ml

293800060

Unavailable

17

Front Fascia Ass'y, black | Includes 21 To 22

703500011

Unavailable

18

BRP Logo 68mm

516008739

Unavailable

19

Flat Washer

224060201

Unavailable

20

Tank Cover

705000010

Unavailable

21

Windshield Latch

570023800

Unavailable

22

LH Front Mudguard Kit | Includes 35 - 36.

703500014

Unavailable

RH Front Mudguard Kit

703500015

Unavailable

23

LH FRONT REFLECTOR - Call your local BRP dealership

705000083

Unavailable

RH FRONT REFLECTOR - Call your local BRP dealership

705000026

Unavailable

24

Hex. Screw M6 X 20 | XT Models

207162044

Unavailable

25

Flat Washer

224060201

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

27

LH TANK PROTECTOR - Call your local BRP dealership

705000133

Unavailable

RH TANK PROTECTOR - Call your local BRP dealership

705000134

Unavailable

28

Hex. Flange Screw M6 X 16

210261650

Unavailable

29

Flat Washer

224061201

Unavailable

30

Front Protection Plate, black

705000135

Unavailable

31

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

32

Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT

250000042

Unavailable

33

Lock Washer 8 mm

234181401

Unavailable

34

Plate Ass'y | Includes 48 - 49.

705000196

Unavailable

35

Rubber Protector

293830084

Unavailable

36

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

37

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

38

Lever Indicator

705000081

Unavailable

39

Tuflock Phillips Plastic Screw

414745900

Unavailable

40

Rubber Cover

570041600

Unavailable

41

Mouting plate | 7423/7424 (XT-Yellow/Jaune).

705000184

Unavailable

42

WINCH - Call your local BRP dealership | 7423/7424 (XT-Yellow/Jaune).

705000185

Unavailable

43

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable

44

Winch Hook Kit

705014949

Unavailable

45

Cotter Pin

250400022

Unavailable

46

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

47

Flat Washer 8 mm

234081410

Unavailable
