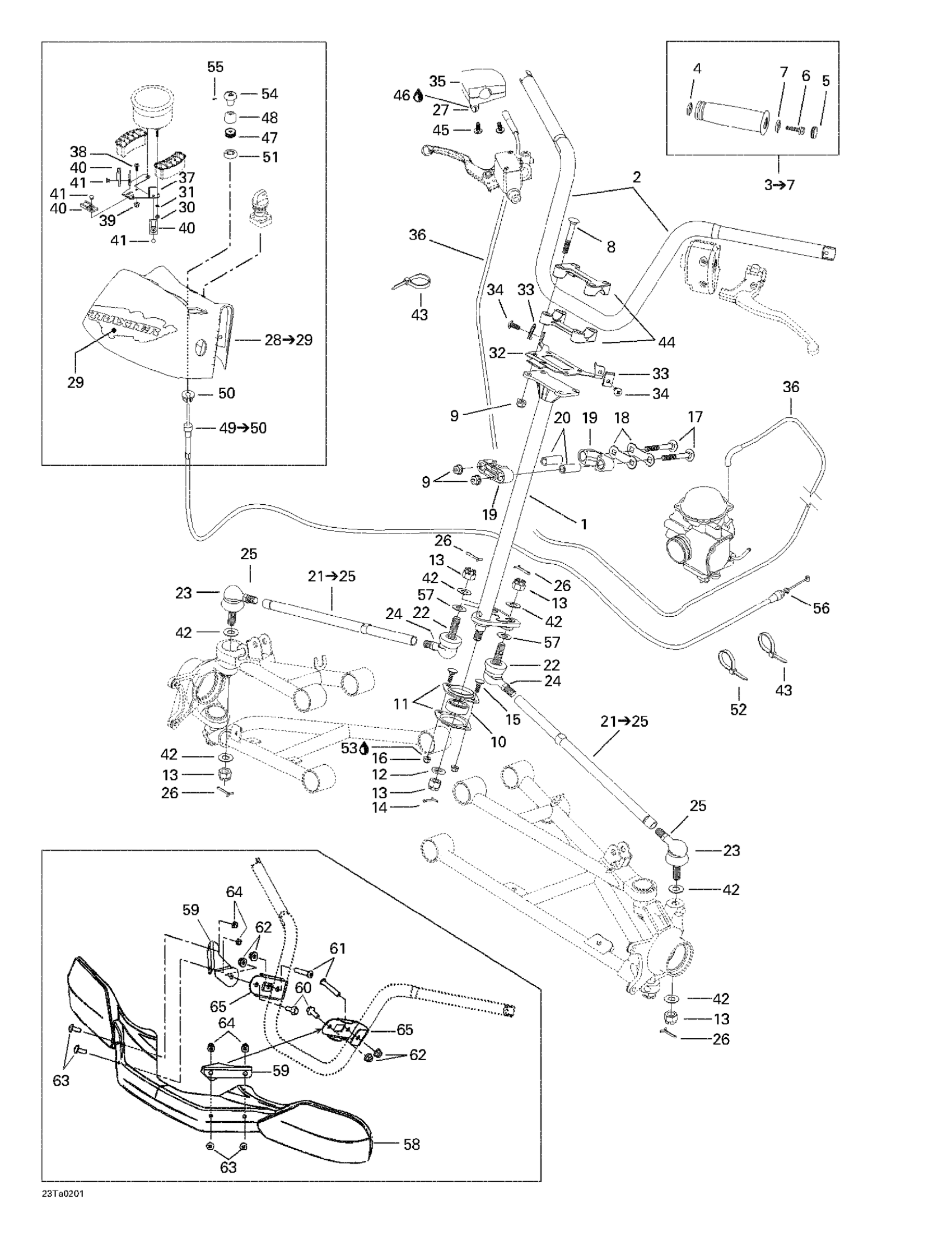

Can-Am Traxter XT, 2002 07- Steering System Diagram

#

Description
Price

1

Main Tube, Black

709400089

Unavailable

2

Handlebar

709400005

Unavailable

3

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Black, Cap

277000203

Unavailable

6

Hex. Screw M6 X 30, Scotch Grip

250000002

Unavailable

7

Flat Washer M6, Stainless

234062600

Unavailable

8

CARRIAGE BOLT M8 X 65 - Call your local BRP dealership

207786544

Unavailable

9

Hex. Flange Elastic Nut M8

233281414

Unavailable

10

Ball Bearing

709400439

Unavailable

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

Unavailable

13

Hex. Castellated Nut M12

232221414

Unavailable

14

Cotter Pin

211400017

Unavailable

15

Carriage Bolt M6 X 25

207762544

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Carriage Bolt M8 X 70

207787044

Unavailable

18

Stopper Plate

506150600

Unavailable

19

HALF-HOUSING - Call your local BRP dealership

709400034

Unavailable

20

Housing Bushing

506150500

Unavailable

21

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

Unavailable

22

RH Ball Joint

709402302

Unavailable

23

LH Ball Joint

709402303

Unavailable

24

Nut Hexagonal RH.

232026414

Unavailable

25

LH HEX. JAM NUT M12 - Call your local BRP dealership

732610020

Unavailable

26

Cotter Pin

211400013

Unavailable

27

SCREW-SET SOCKET DIN.913 - Call your local BRP dealership

250000017

Unavailable

28

Steering cover (black) | Includes 28 - 9.

703500019

Unavailable

29

Steering Cover Label

704900024

Unavailable

30

Nut

414303600

Unavailable

31

Lock Washer 4 mm

234141601

Unavailable

32

Cover Support, Black | 7415/7416. 7417/7418.

709400077

Unavailable

33

Speednut M6

211100050

Unavailable

34

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

35

THROTTLE HANDLE - Call your local BRP dealership

709400016

Unavailable

36

THROTTLE CABLE - Call your local BRP dealership

707000097

Unavailable

37

Housing Support, Black

710000159

Unavailable

38

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

39

Elastic Stop Nut M5

232551414

Unavailable

40

Clip

270000141

Unavailable

41

Pop Rivet 3/16"

390402400

Unavailable

42

Hardened Washer

503175400

Unavailable

43

Tie-Rap 180 mm

414115200

Unavailable

44

Steering Clamp

709400028

Unavailable

45

Screw M5 x 30

205353046

Unavailable

46

Loctite BLACK/MAX Gel Tube, 20 g

293800061

Unavailable

47

HOLDER CAP - Call your local BRP dealership

707000087

Unavailable

48

Rubber Cap

707000088

Unavailable

49

CHOKE CABLE - Call your local BRP dealership

707000357

Unavailable

50

Hex. Nut

211100007

Unavailable

51

D SHAPE WASHER - Call your local BRP dealership

707000067

Unavailable

52

Tie-Rap 173 mm

293750009

Unavailable

53

Loctite 243, 10 ml

293800060

Unavailable

54

BUTTON - Call your local BRP dealership

707000089

Unavailable

55

Socket Head Screw M3 x 5

205030587

Unavailable

56

O-RING - Call your local BRP dealership

293300075

Unavailable

57

Washer

503189276

Unavailable

58

Hand Protector | 7423/7424 (XT-Yellow/Jaune).

705000183

Unavailable

59

RH Support | Traxter XT.

709400116

Unavailable

LH Support | Traxter XT.

709400117

Unavailable

60

Hex. Flange Screw M8 X 20

207682044

Unavailable

61

Socket Head Screw M8 X 45 | Traxter XT.

205484546

Unavailable

62

Hex. Flange Elastic Nut M8

233281414

Unavailable

63

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

64

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

65

U Shaped Bracket

709400118

Unavailable
