- Traxter XL, 7571, 2003
10- Main Harness And Electrical Accessories

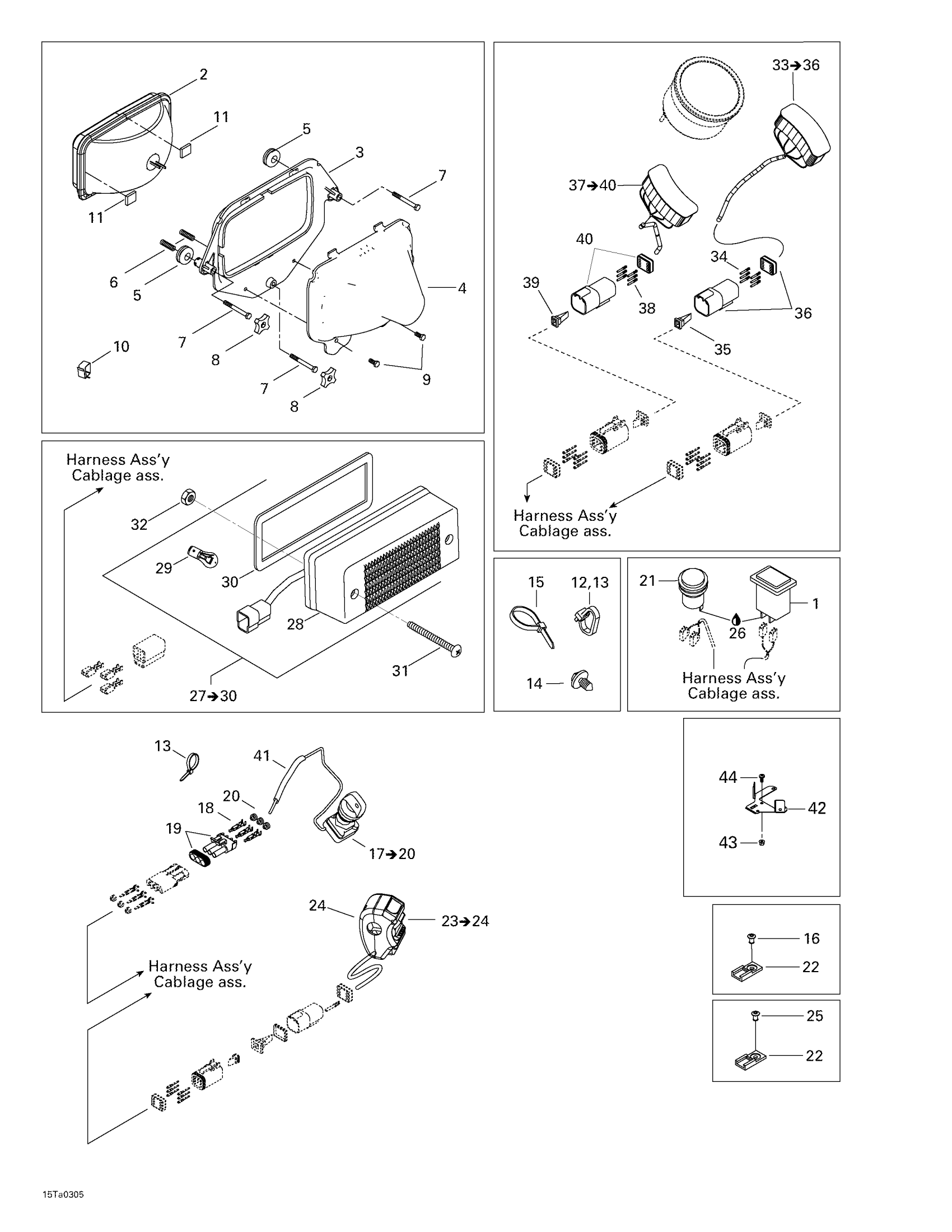

Can-Am Traxter XL, 7571, 2003 10- Main Harness And Electrical Accessories Diagram
#
1
HOUR METER - Call your local BRP dealership
710000161
Unavailable
2
HEADLAMP - Call your local BRP dealership
710000001
Unavailable
3
Head Lamp Support
705000474
Unavailable
4
Protector
705000023
Unavailable
5
Grommet
709000582
Unavailable
6
Spring
517168600
Unavailable
7
HEX. SCREW K40 X 40 - Call your local BRP dealership
250000008
Unavailable
8
Handle
572106600
Unavailable
9
PHILLIPS SCREW K40 X 10 - Call your local BRP dealership
241641040
Unavailable
10
Clip
414227300
Unavailable
11
Rubber Pad
293830088
Unavailable
12
Tie-Rap 180 mm
414115200
Unavailable
13
Tie Wrap 142 mm
293750002
Unavailable
14
Mount Dart
293730040
Unavailable
15
Tie Wrap 368 mm
293750008
Unavailable
16
Pop Rivet 3/16"
390402400
Unavailable
17
Ignition Switch Ass'y | Includes 24 - 27.
710000042
Unavailable
17
BLANK KEY (A TYPE) - Call your local BRP dealership
710000137
Unavailable
17
BLANK KEY (B TYPE) - Call your local BRP dealership
710000101
Unavailable
18
Female Terminal
278000223
Unavailable
19
Male Housing, 3 Circuits
278000273
Unavailable
20
Wire Seal
278000218
Unavailable
21
Outlet Power Kit, 12 Volts
861507200
Unavailable
22
Clip
270000141
Unavailable
23
Multi-Fonction Switch | Includes 25 to 29
710000015
Unavailable
24
BACK COVER - Call your local BRP dealership
710000173
Unavailable
25
Pop Rivet 3/16"
390402200
Unavailable
26
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
27
Tail Light Housing
710000102
Unavailable
28
TAIL LIGHT LENS, RED - Call your local BRP dealership
710000055
Unavailable
29
Bulb
520000758
Unavailable
30
GASKET - Call your local BRP dealership
710000129
Unavailable
31
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership
208656091
Unavailable
32
Hex. Flange Elastic Nut M5
233251414
Unavailable
33
RH Warning Lamp | Includes 33 - 36.
710000419
Unavailable
34
MALE TERMINAL - Call your local BRP dealership
409014800
Unavailable
35
Male Lock, 6 Circuits
409014600
Unavailable
36
Male Terminal Housing, 6 Circuits
409015200
Unavailable
37
LH Warning Lamp
710000008
Unavailable
38
MALE TERMINAL - Call your local BRP dealership
409014800
Unavailable
39
Male Lock, 6 Circuits
409014600
Unavailable
40
Male Terminal Housing, 6 Circuits
409015200
Unavailable
41
Protector Tube
710000171
Unavailable
42
Housing Support, Black
710000159
Unavailable
43
Elastic Stop Nut M5
232551414
Unavailable
44
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
208651241
Unavailable
