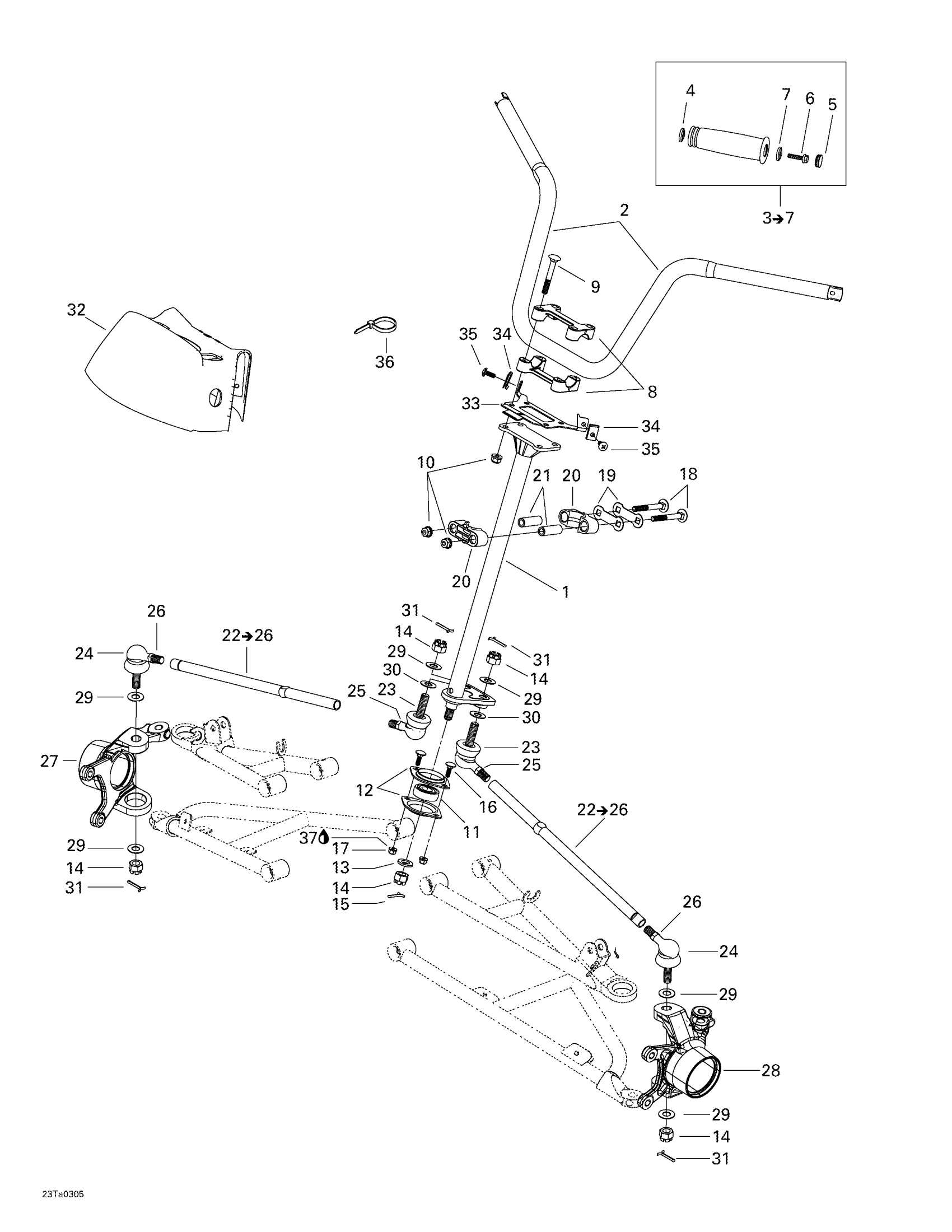

Can-Am Traxter XL, 7571, 2003 07- Steering System Diagram

#

Description
Price

1

Main Tube, Black

709400089

Unavailable

2

Handlebar

709400005

Unavailable

3

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Black, Cap

277000203

Unavailable

6

Hex. Screw M6 X 30, Scotch Grip

250000002

Unavailable

7

Flat Washer M6, Stainless

234062600

Unavailable

8

Steering Clamp

709400028

Unavailable

9

CARRIAGE BOLT M8 X 65 - Call your local BRP dealership

207786544

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

Unavailable

11

Ball Bearing

709400439

Unavailable

12

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

13

Flat Washer 12 mm

234021410

Unavailable

14

Hex. Castellated Nut M12

232221414

Unavailable

15

Cotter Pin

211400017

Unavailable

16

Carriage Bolt M6 X 25

207762544

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

Carriage Bolt M8 X 70

207787044

Unavailable

19

Stopper Plate

506150600

Unavailable

20

HALF-HOUSING - Call your local BRP dealership

709400034

Unavailable

21

Housing Bushing

506150500

Unavailable

22

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

Unavailable

23

RH Ball Joint

709402302

Unavailable

24

LH Ball Joint

709402303

Unavailable

25

Nut Hexagonal RH.

232026414

Unavailable

26

LH HEX. JAM NUT M12 - Call your local BRP dealership

732610020

Unavailable

27

RH Knuckle

709400095

Unavailable

28

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable

29

Hardened Washer

706200281

Unavailable

30

Washer

503189276

Unavailable

31

Cotter Pin

211400013

Unavailable

32

Steering cover (black) | Includes 28 - 9.

703500019

Unavailable

33

Cover Support, Black | 7415/7416. 7417/7418.

709400077

Unavailable

34

Speednut M6

211100050

Unavailable

35

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

36

Tie-Rap 180 mm

414115200

Unavailable

37

Loctite 243, 10 ml

293800060

Unavailable
