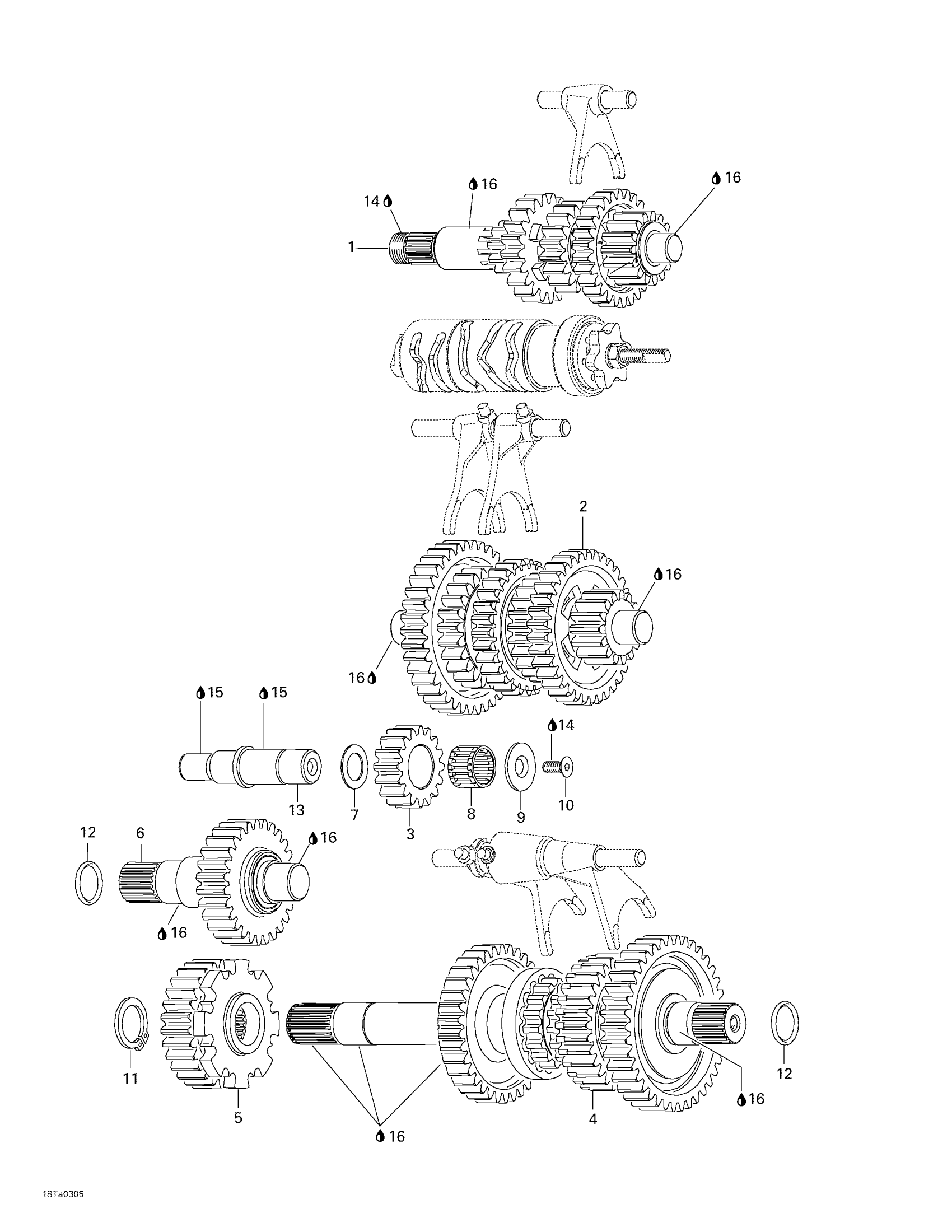

Can-Am Traxter XL, 7571, 2003 05- Transmission Diagram

#

Description

Price

1

Countershaft

711220487

Unavailable

2

Main Shaft Ass'y

711220509

Unavailable

3

Sliding Gear

711634890

Unavailable

4

Rear Output Shaft

711220497

Unavailable

5

Output Gear (28 Teeth)

711634925

Unavailable

6

Front Output Shaft

711220522

Unavailable

7

THRUST WASHER - Call your local BRP dealership

420227440

Unavailable

8

Needle Cage

711632230

Unavailable

9

Stop Washer

711244270

Unavailable

10

Screw M6 X 20

420941436

Unavailable

11

CIRCLIP - Call your local BRP dealership

420945870

Unavailable

12

O-Ring

420430373

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Loctite 243, 10 ml

293800060

Unavailable

15

Molykote G-N, 50 g

420297433

Unavailable

16

Was 420297616 Klueber Grease, 60g

219704464

Unavailable
