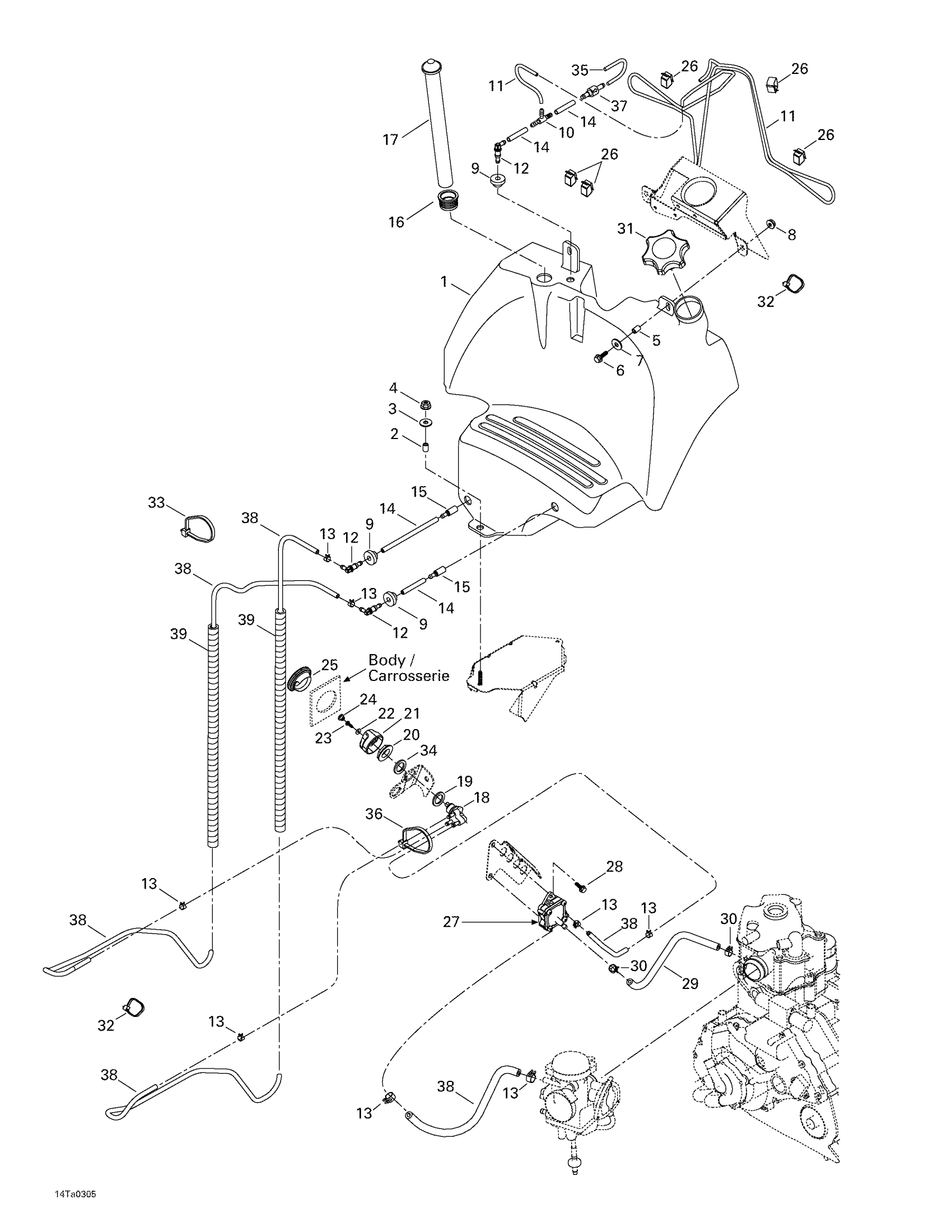

Can-Am Traxter XL, 7571, 2003 Fuel Tank Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000025

Unavailable

2

Bushing

293900028

$12.71

3

Flat Washer 8 mm

234082410

$1.49

4

Hex. Flange Elastic Nut M8

233281414

$1.49

5

Bushing | DS 650 X

293900104

$5.50

6

Hex. Flange Screw M6 X 25

207662544

$1.49

7

Flat Washer

224061201

$1.49

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

9

Grommet

570045500

$6.79

10

T-fitting

414222500

$1.69

11

VENT HOSE - Call your local BRP dealership

709000031

Unavailable

12

Elbow Male Connector

414580600

$4.29

13

Spring Clamp

414415200

$1.49

14

Polyurethane Hose 10000Mm Long

219704410

$57.99

15

Fuel Filter

414865700

$10.99

16

Grommet

293720058

$12.49

17

Fuel gauge

709000033

Unavailable

18

Fuel Valve

275500098

$43.99

19

GASKET - Call your local BRP dealership

293250004

Unavailable

20

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

21

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

22

Flat Washer 4 mm

234040600

$1.49

23

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

24

Black, Cap

275500241

$3.59

25

Fuel Valve Grommet

709000005

Unavailable

26

Clip

414227300

$1.69

27

FUEL PUMP - Call your local BRP dealership

707200000

Unavailable

28

Hex. Flange Screw M6 X 10

210261040

$1.49

29

HOSE - Call your local BRP dealership

709000024

Unavailable

30

Spring Clamp

414415200

$1.49

31

Fuel Tank Cap

513033025

$25.99

32

Tie Wrap 142 mm

293750002

$1.49

33

Tie-Rap 180 mm

414115200

$1.49

34

Washer

250200015

Unavailable

35

VENT HOSE - Call your local BRP dealership

709000029

Unavailable

36

Tie Wrap 368 mm

293750008

$1.49

37

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

38

Hose

219704549

$51.99

39

Was 409901800 Tubing (13 mm)

219704400

$14.99

40

Primer Kit

703500045

Unavailable
