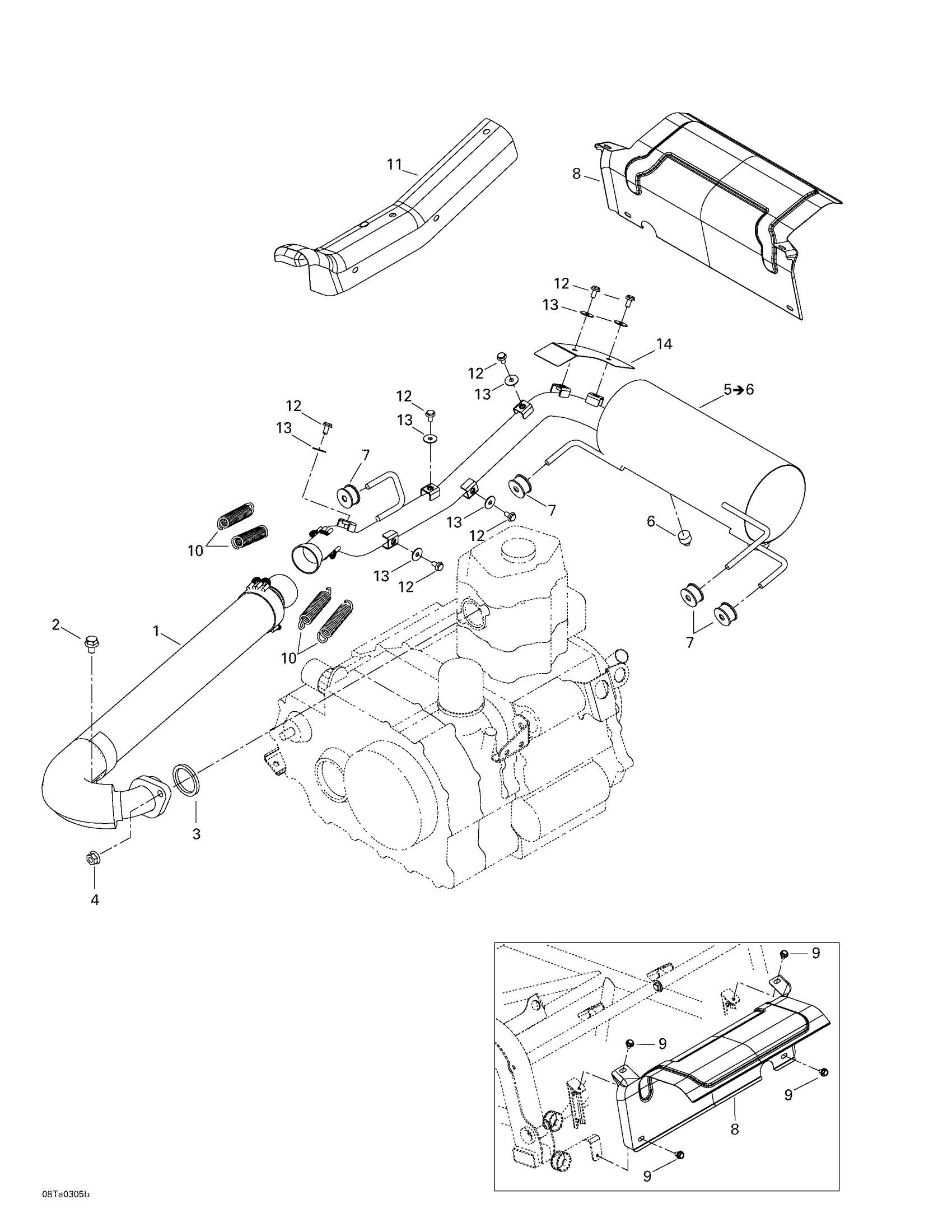

Can-Am Traxter XL, 7571, 2003 Exhaust System Diagram

#

Description

Price

1

Tuned Pipe

707600062

Unavailable

2

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

3

GASKET - Call your local BRP dealership

707600003

Unavailable

4

Hex. Flange Nut M8

233081416

$1.63

5

Muffler | Includes 5 - 6.

707600093

Unavailable

6

Drain Plug

250500003

Unavailable

7

Anti-Vibration Rubber

707600702

$8.34

8

Heat Shield

707600094

Unavailable

9

Hex. Forming Screw M6 X 10

210261050

$1.42

10

Spring

415107100

$6.20

11

Heat Shield

707600100

Unavailable

12

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

13

Flat Washer

224060201

$1.15

14

Heat Shield

707600148

Unavailable
