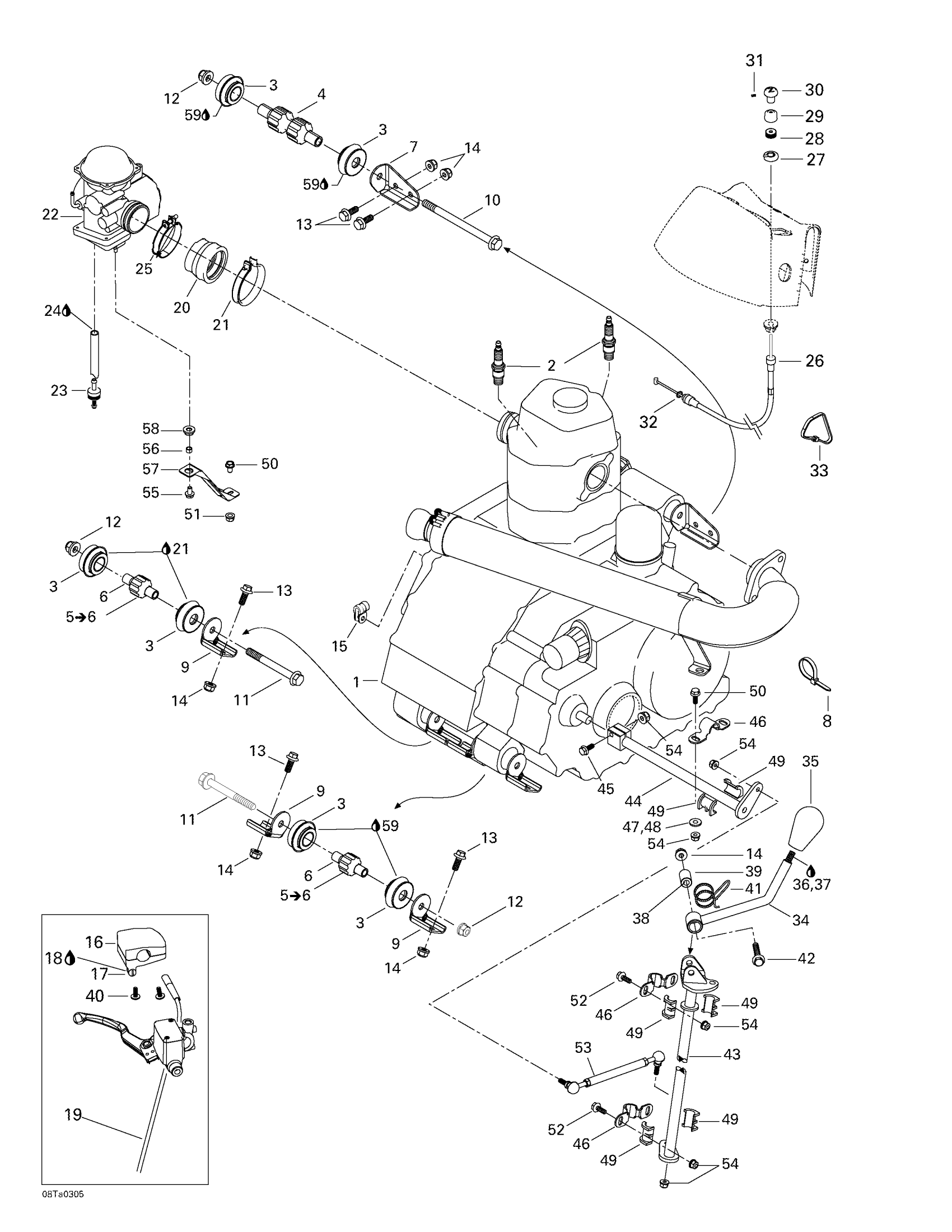

Can-Am Traxter XL, 7571, 2003 01- Engine Diagram

#

Description
Price

1

Rotax 4 Strokes Engine «511» | Includes 1 to 7

707000041

Unavailable

2

Spark Plug, NGK/DR8EA

707000008

Unavailable

3

Anti-Vibration Mount

707000094

Unavailable

4

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

5

Support Bushing | Includes 10 to 11

707000030

Unavailable

6

RH LOWER BUSHING - Call your local BRP dealership

707000004

Unavailable

7

Front Engine Bracket, Black

707000082

Unavailable

8

Tie-Rap 173 mm

293750009

Unavailable

9

Engine Bracket

705200197

Unavailable

10

Hex. Flange Screw M10 X 140

230604044

Unavailable

11

HEX. FLANGED SCREW M10 X 95 - Call your local BRP dealership

207609544

Unavailable

12

Hex. Flange Elastic Nut M10

233201414

Unavailable

13

Hex. Flange Screw M8 X 20

207682044

Unavailable

14

Hex. Flange Elastic Nut M8

233281414

Unavailable

15

Hose Retainer 13 mm

705600232

Unavailable

16

THROTTLE HANDLE - Call your local BRP dealership

709400016

Unavailable

17

SCREW-SET SOCKET DIN.913 - Call your local BRP dealership

250000017

Unavailable

18

Loctite BLACK/MAX Gel Tube, 20 g

293800061

Unavailable

19

THROTTLE CABLE - Call your local BRP dealership

707000097

Unavailable

20

CARBURATOR ADAPTOR - Call your local BRP dealership

707000247

Unavailable

21

Clamp

512059062

Unavailable

22

CARBURATOR ASS?Y BSR33-29 - Call your local BRP dealership

707200157

Unavailable

23

Check Valve

275500398

Unavailable

24

Glue Tube, Loctite 454, 20 G

413708300

Unavailable

25

Gear Clamp Gemi

293650094

Unavailable

26

CHOKE CABLE - Call your local BRP dealership

707000357

Unavailable

27

D SHAPE WASHER - Call your local BRP dealership

707000067

Unavailable

28

HOLDER CAP - Call your local BRP dealership

707000087

Unavailable

29

Rubber Cap

707000088

Unavailable

30

BUTTON - Call your local BRP dealership

707000089

Unavailable

31

PHILLIPS SCREW M3 X 5 - Call your local BRP dealership

250000108

Unavailable

32

O-RING - Call your local BRP dealership

293300075

Unavailable

33

Tie-Rap 180 mm

414115200

Unavailable

34

LEVER ASS'Y - Call your local BRP dealership

707000010

Unavailable

35

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

36

Was 293800041 Loctite Primer 7649

219704458

Unavailable

37

Loctite 243, 10 ml

293800060

Unavailable

38

BUSHING - Call your local BRP dealership

705500150

Unavailable

39

Adjuster Bushing

705500193

Unavailable

40

SCREW M5 X 30 - Call your local BRP dealership

205353060

Unavailable

41

LEVER SPRING - Call your local BRP dealership

705500024

Unavailable

42

Hex. Flange Screw M8 X 50

207685044

Unavailable

43

Upper Tube, Black

705500358

Unavailable

44

Lower Tube

705500135

Unavailable

45

Hex. Flange Screw M6 X 35

207663544

Unavailable

46

RETAINER CLAMP - Call your local BRP dealership

705500041

Unavailable

47

Shim 1.0 mm

707000080

Unavailable

48

Shim 2.0 mm

707000081

Unavailable

49

Half Ring

705500033

Unavailable

50

Hex. Flange Screw M6 X 20

207662044

Unavailable

51

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

52

Hex. Flange Screw M6 X 16

207661644

Unavailable

53

Tie Rod Ass'y

707000068

Unavailable

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

55

Hex. Screw M4 X 16, Scotch Grip

207341644

Unavailable

56

Spacer

707000181

Unavailable

57

Carburator Support

707200159

Unavailable

58

Grommet

709000582

Unavailable

59

Synthetic Grease, 400 G

293550010

Unavailable
