- Traxter XL, 7571, 2003
01- Crankshaft, Pistons And Cylinder

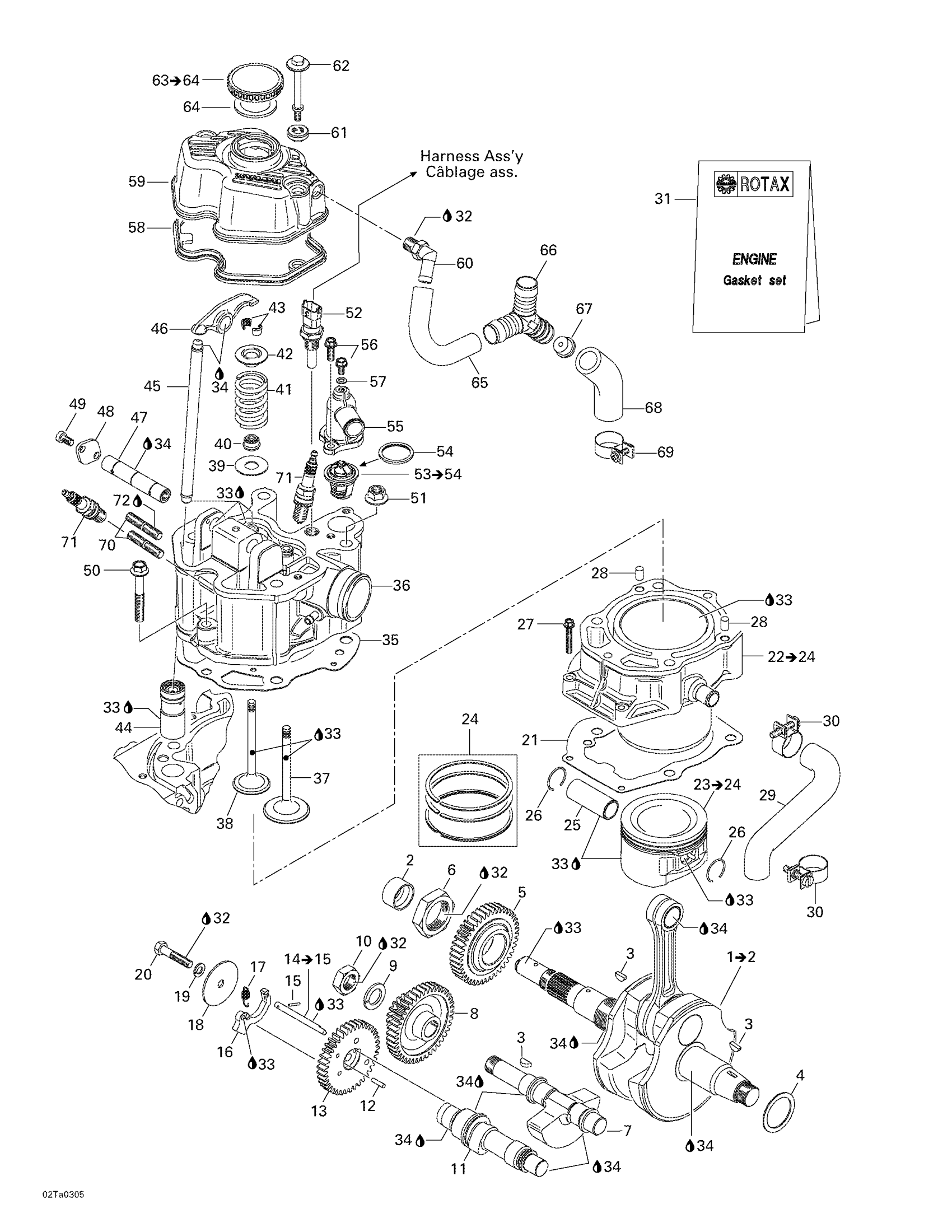

Can-Am Traxter XL, 7571, 2003 01- Crankshaft, Pistons And Cylinder Diagram
#
1
Crankshaft Ass'y | Includes 9 - 10.
711295893
Unavailable
2
Spacer
711247070
Unavailable
3
Woodruff Key 4 X 5
420246570
Unavailable
4
Adjusting Washer 35 x 45 x 1.3
711427505
Unavailable
Adjusting Washer 35 x 45 x 1.5
711427506
Unavailable
Adjusting Washer 35 x 45 x 1.8
711427507
Unavailable
5
Mating Gear (42 Teeth)
711635011
Unavailable
6
Nut M34
711842605
Unavailable
7
Balance Shaft
711220470
Unavailable
8
Balancing Gear Double
711635100
Unavailable
9
Lock Washer 18 mm
290945757
Unavailable
10
HEX. NUT M18 - Call your local BRP dealership
420942220
Unavailable
11
Cam Shaft
711220462
Unavailable
12
Needle Pin
420232420
Unavailable
13
Cam Shaft Gear (38 Teeth)
711634956
Unavailable
14
Deko Shaft Ass'y
711220615
Unavailable
15
Groove pin
420929555
Unavailable
16
Centrifugal Weight
711231050
Unavailable
17
Tension Spring
711239570
Unavailable
18
Washer
711244260
Unavailable
19
Washer-Lock Din.128
420945832
Unavailable
20
Hex. Screw M8 X 40
207084044
Unavailable
21
CYLINDER GASKET - Call your local BRP dealership
711650430
Unavailable
22
Cylinder/Piston
711613177
Unavailable
23
Piston 89 mm & Ring Set | Includes 5 - .
711296110
Unavailable
24
Piston Ring Set
711296114
Unavailable
25
Piston Pin
420216225
Unavailable
26
Circlip 22 mm
711245431
Unavailable
27
Hex. Flange Screw M6 x 35
711941126
Unavailable
28
Center Pin 8 X 12
420632010
Unavailable
29
Water Cooling Hose
711222285
Unavailable
30
Clamp
711951760
Unavailable
31
Gasket Set Engine
711296372
Unavailable
32
Loctite 243, 10 ml
293800060
Unavailable
33
Not Available As Spare Part - Friction Washer
Unavailable
34
Was 420297616 Klueber Grease, 60g
219704464
Unavailable
35
Cylinder Head Gasket
711650446
Unavailable
36
Cylinder Head
711613375
Unavailable
37
Inlet Valve 42 mm
711254050
Unavailable
38
Inlet Valve 34 mm
711254062
Unavailable
39
THRUST WASHER - Call your local BRP dealership
420227980
Unavailable
40
Valve Seal
420230810
Unavailable
41
Valve Spring
711239500
Unavailable
42
Valve Spring Retainer
711254100
Unavailable
43
Valve Cotter
711253090
Unavailable
44
Valve Hydraulic Tappet
420854099
Unavailable
45
Push Rod
711854575
Unavailable
46
Rocker Arm
711254083
Unavailable
47
Rocker Arm Shaft
711254110
Unavailable
48
Holding Strip
711244250
Unavailable
49
Socket Head Screw M6 x 10
711241681
Unavailable
50
Hex. Flange Screw M8 X 53.5
420240326
Unavailable
51
Hex. Flange Nut M10
233101414
Unavailable
52
Temperature Sensor
278002895
Unavailable
53
Thermostat | Includes 53 to 54
420222495
Unavailable
54
Thermostat Gasket
420650300
Unavailable
55
Thermostat Cover
711222560
Unavailable
56
Hex. Flange Screw M6 x 16
711241751
Unavailable
57
Sealing Washer
404146600
Unavailable
58
Valve Cover Gasket
711650450
Unavailable
59
Valve Cover
711211835
Unavailable
60
Angular Tube
420922242
Unavailable
61
Rubber Bushing
711260050
Unavailable
62
DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership
420240906
Unavailable
63
Bayonet Filler Cap | Includes 63 - 64.
711974644
Unavailable
64
Gasket Ring
711650990
Unavailable
65
Formed Hose
711222610
Unavailable
66
Y Fitting
711874380
Unavailable
67
Fitting
711222590
Unavailable
68
Formed Hose
711222600
Unavailable
69
Gear Clamp
711251222
Unavailable
70
Stud M8 x 23
711940366
Unavailable
71
Spark Plug, NGK/DR8EA
707000008
Unavailable
72
Sealant Loctite 648
219703000
Unavailable
