- Traxter XL, 7571, 2003
01- Crankcase

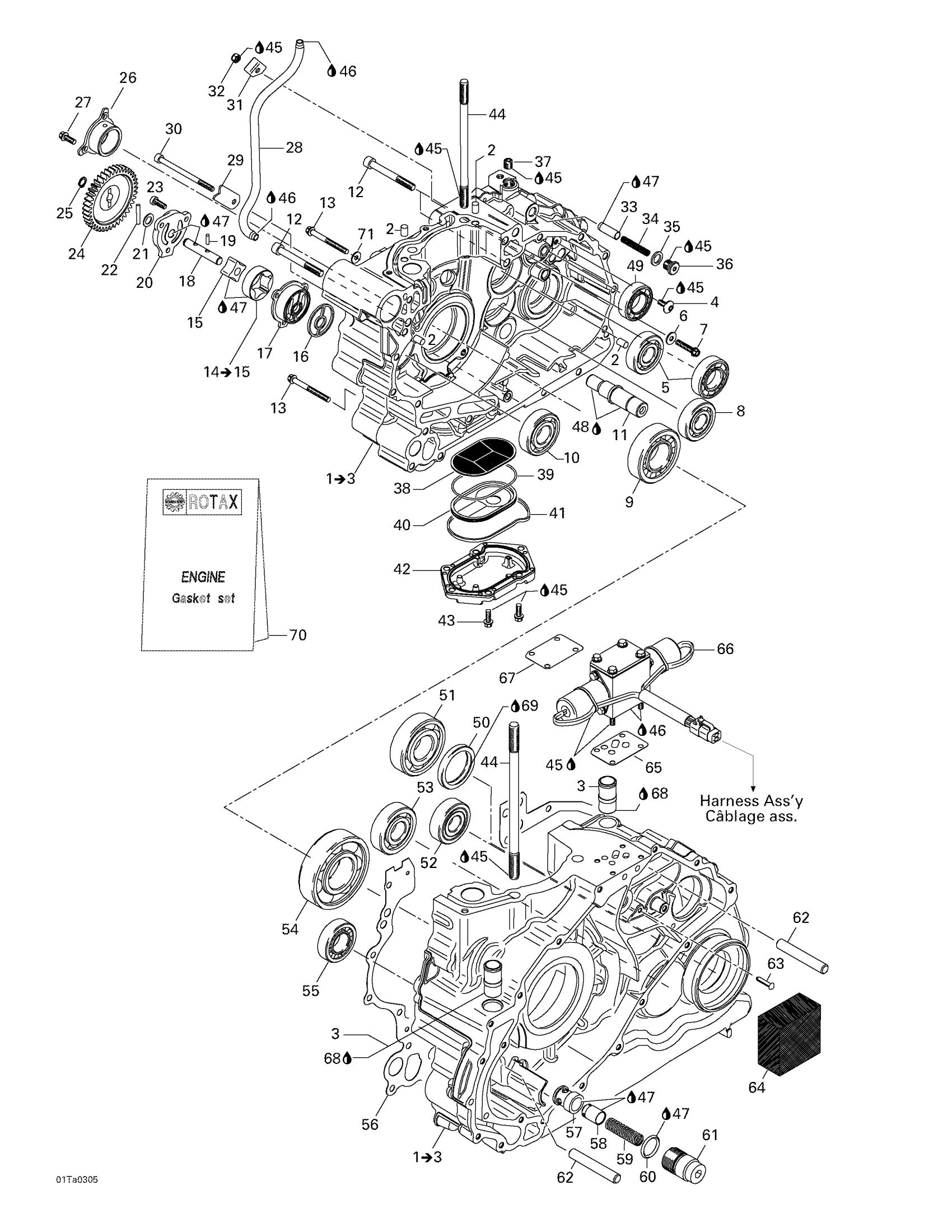

Can-Am Traxter XL, 7571, 2003 01- Crankcase Diagram
#
1
Crankcase Ass'y
711295881
Unavailable
2
Center Pin 8 X 12
420632010
Unavailable
3
Tube
711224260
Unavailable
4
Flat Head Screw M6 x 16
711241531
Unavailable
5
Ball Bearing 6205
420232764
Unavailable
6
Washer
420627400
Unavailable
7
Hex. Flange Screw M6 x 30
711241941
Unavailable
8
Ball Bearing 6304E
290932095
Unavailable
9
Roller Bearing
711232490
Unavailable
10
Ball Bearing
711632200
Unavailable
11
Intermediate Gear Shaft
711220570
Unavailable
12
SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership
420841991
Unavailable
13
Hex. Flange Screw M6 x 65
711640351
Unavailable
14
Oil Pump Rotor Ass'y | Includes 13 - 4.
711956275
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Rubber Ring
711650960
Unavailable
17
Ring Housing
711610140
Unavailable
18
Oil Pump Shaft
711220592
Unavailable
19
Needle Pin
420232731
Unavailable
20
Oil Pump Cover
711211852
Unavailable
21
Thrust Washer
420827590
Unavailable
22
NEEDLE PIN - Call your local BRP dealership
420232971
Unavailable
23
SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership
420240404
Unavailable
24
Oil Pump Gear (40 Teeth)
711635030
Unavailable
25
Snap Ring
420245330
Unavailable
26
Ring Housing
711610130
Unavailable
27
Hex. Flange Screw M6 x 16
711241751
Unavailable
28
Oil Pipe
711224622
Unavailable
29
Holding Strip
711627437
Unavailable
30
Socket Screw M6 x 90
711241481
Unavailable
31
Holding Strip
711627432
Unavailable
32
Elastic Stop Nut M6
232561414
Unavailable
33
Piston
711256590
Unavailable
34
Compression Spring
711238020
Unavailable
35
Aluminum Sealing Ring
420250016
Unavailable
36
Plug Screw M12 x 1,5
420241701
Unavailable
37
Plug Screw
711840651
Unavailable
38
Oil Sieve
711256572
Unavailable
39
O-Ring
711931385
Unavailable
40
Oil Collector
711256652
Unavailable
41
RUBBER RING - Call your local BRP dealership
711650950
Unavailable
42
Oil Sieve Cover
711211941
Unavailable
43
Hex. Flange Screw M6 x 20
711241861
Unavailable
44
Stud M10 x 190
711241670
Unavailable
45
Loctite 243, 10 ml
293800060
Unavailable
46
Was 413702700 Loctite 515, 50 ml
219704462
Unavailable
47
Not Available As Spare Part - Friction Washer
Unavailable
48
Molykote G-N, 50 g
420297433
Unavailable
49
Bearing_Ball - Call your local BRP dealership
420932650
Unavailable
50
Oil Seal
711650700
Unavailable
51
Ball Bearing
420932822
Unavailable
52
Ball Bearing
420932816
Unavailable
53
Ball Bearing 6304E
290932095
Unavailable
54
BALL BEARING - Call your local BRP dealership
420432120
Unavailable
55
Roller Bearing
711232280
Unavailable
56
Crankcase Gasket
711650422
Unavailable
57
Seat Valve Sleeve
711256602
Unavailable
58
Piston Valve
420256638
Unavailable
59
Compression Spring | 7413/7414. 7415/7416. 7417/7418.
711938785
Unavailable
60
O-Ring
420250050
Unavailable
61
Plug Screw M24
711640790
Unavailable
62
Needle Pin
420229475
Unavailable
63
Groove Pin M4 x 20
711229170
Unavailable
64
Oil Separating Foam
711256720
Unavailable
65
SOLENOID VALVE GASKET - Call your local BRP dealership
420650630
Unavailable
66
Soleno‹d Valve
711256540
Unavailable
67
Gasket
420650636
Unavailable
68
Sealant Loctite 648
219703000
Unavailable
69
Grease, Super Lube
293550030
Unavailable
70
Solenoid Valve Gasket Set
711296375
Unavailable
71
Oil Seal
420230150
Unavailable
