01- Cooling System

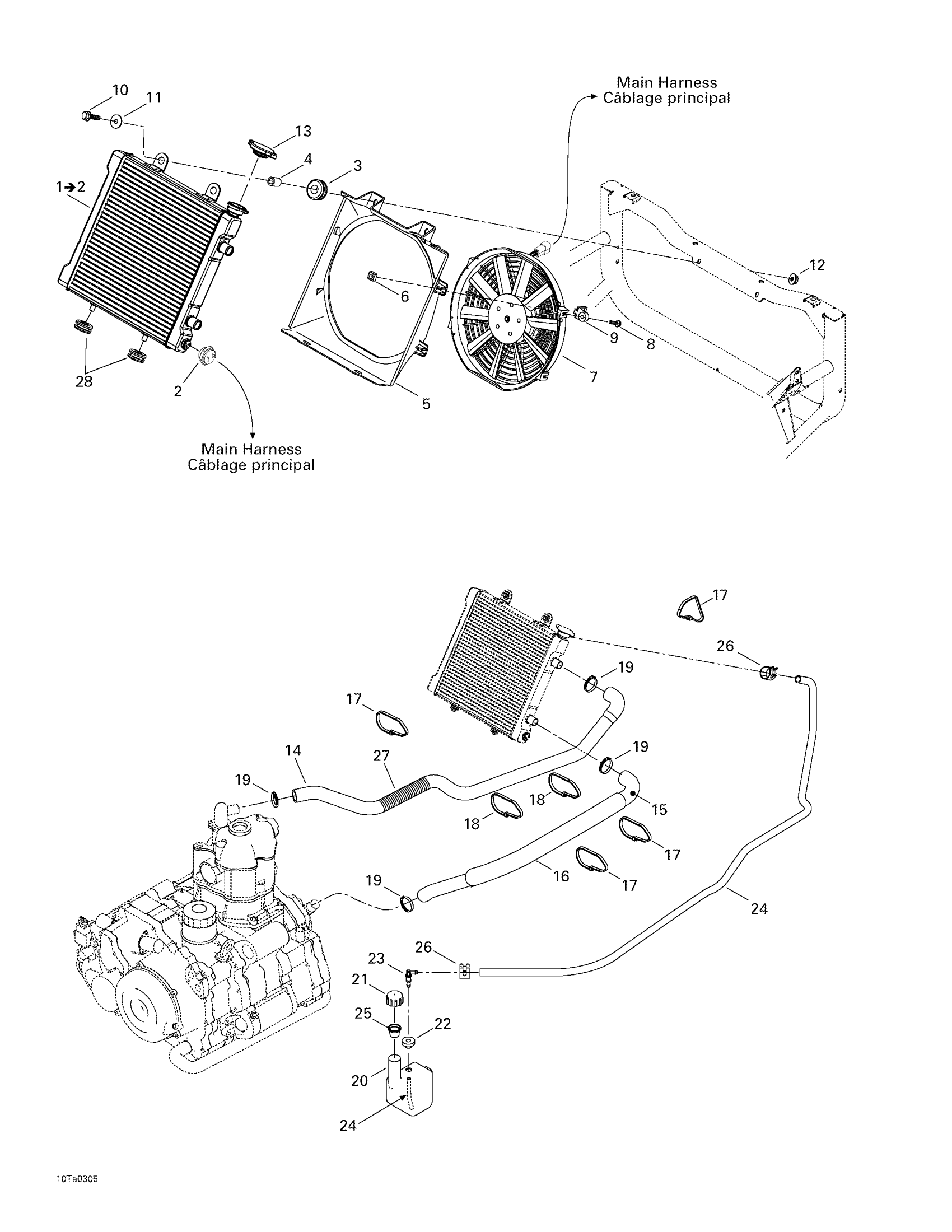

Can-Am Traxter XL, 7571, 2003 01- Cooling System Diagram
#
Description
Price
1
Radiator ass'y | Includes 1 - 2.
709200088
Unavailable
2
Temperature Sensor
715900095
Unavailable
3
Grommet
709000582
Unavailable
4
Bushing
293900019
Unavailable
5
Outlet shroud
709200013
Unavailable
6
Square Nut M6
232862412
Unavailable
7
Fan ass'y
709200004
Unavailable
8
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
9
Fan Support
709200017
Unavailable
10
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
11
Flat Washer
250200082
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
13
Radiator Pressure Cap
709200207
Unavailable
14
Radiator Inlet Hose
709200052
Unavailable
15
OUTLET HOSE - Call your local BRP dealership
709200054
Unavailable
16
PROTECTION SHIELD - Call your local BRP dealership
709200032
Unavailable
17
Tie-Rap 180 mm
414115200
Unavailable
18
Tie Wrap 368 mm
293750008
Unavailable
19
Norma Spring Clamp
293650109
Unavailable
20
COOLANT TANK - Call your local BRP dealership
709200099
Unavailable
21
TANK CAP - Call your local BRP dealership
709200009
Unavailable
22
Grommet
709200285
Unavailable
23
Elbow Male Connector
414580600
Unavailable
24
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
25
PROTECTION CAP - Call your local BRP dealership
709200205
Unavailable
26
Spring Clamp
414554800
Unavailable
27
PROTECTION SHIELD - Call your local BRP dealership
709200031
Unavailable
28
Grommet
709000582
Unavailable
