- Traxter XL, 7571, 2003
01- Clutch Housing And Cover

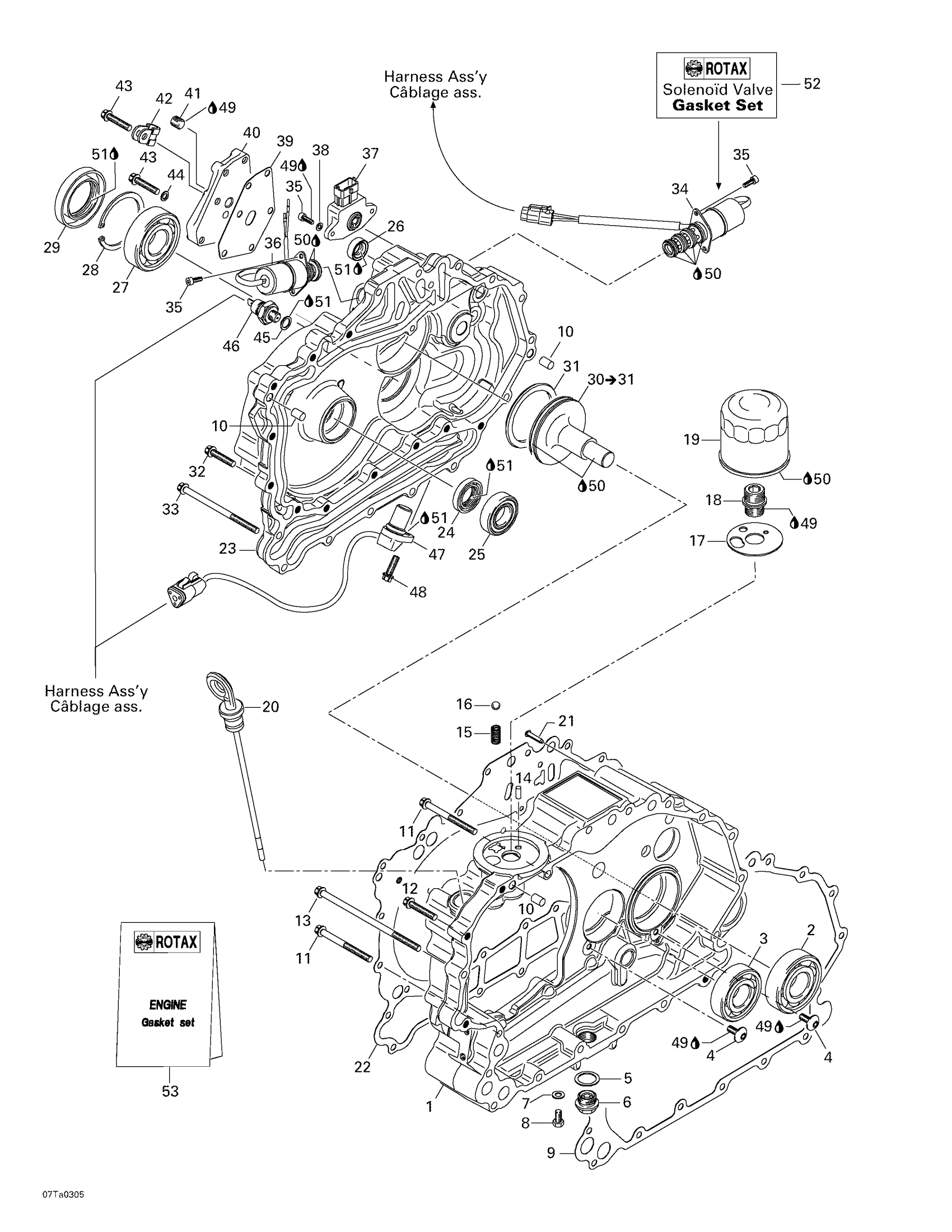

Can-Am Traxter XL, 7571, 2003 01- Clutch Housing And Cover Diagram
#
1
Clutch Housing
711211921
Unavailable
2
Ball Bearing
420932822
Unavailable
3
Ball Bearing
711632200
Unavailable
4
Flat Head Screw M6 x 16
711241531
Unavailable
5
Crush Washer
420552280
Unavailable
6
Drain Plug M18 X 1.5
420840278
Unavailable
7
Sealing Washer
404146600
Unavailable
8
Hex. Flange Screw M6 x 16
711241751
Unavailable
9
Clutch HousingGasket
711650582
Unavailable
10
Center Pin 8 X 12
420632010
Unavailable
11
Hex. Flange Screw M6 x 70
711940576
Unavailable
12
Hex. Flange Screw M6 x 35
711941126
Unavailable
13
Hex. Flange Screw M6 x 130
711640371
Unavailable
14
NEEDLE PIN - Call your local BRP dealership
711232710
Unavailable
15
Spring
711238050
Unavailable
16
Ball
711232370
Unavailable
17
Oil Filter Washer
711627370
Unavailable
18
Oil Filter Nipple
711924420
Unavailable
19
Filtre Huile * Filter Oil
420256623
Unavailable
20
Oil Dipstick
711256610
Unavailable
21
Groove Pin M4 x 20
711229170
Unavailable
22
Clutch Cover Gasket
711650592
Unavailable
23
Clutch Cover
711211811
Unavailable
24
Oil Seal
420930392
Unavailable
25
Ball Bearing 6304
711232190
Unavailable
26
Oil Seal
420250455
Unavailable
27
Ball Bearing
420932822
Unavailable
28
RETAINING RING - Call your local BRP dealership
711445070
Unavailable
29
Oil Seal
420650682
Unavailable
30
Disengaging Piston | Includes 19 - 20.
711257056
Unavailable
31
K-Grooved Ring
711650550
Unavailable
32
Hex. Flange Screw M6 x 30
711241941
Unavailable
33
Hex. Flange Screw M6 x 100
711640361
Unavailable
34
Soleno‹d Valve
711256550
Unavailable
35
SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership
420440291
Unavailable
36
Pressure Valve
711256560
Unavailable
37
Potentiometer (Sub Transmission)
711265600
Unavailable
38
Flat Washer 4
420244072
Unavailable
39
Gasket
711650620
Unavailable
40
Oil Duct Cover
711211935
Unavailable
41
PLUG SCREW - Call your local BRP dealership
420240480
Unavailable
42
Open Clamp
414176000
Unavailable
43
Hex. Flange Screw M6 x 30
711241941
Unavailable
44
Seal Washer
420230415
Unavailable
45
Oil Seal
420230150
Unavailable
46
OIL PRESSURE SWITCH - Call your local BRP dealership
710000313
Unavailable
47
Speed Sensor
420265723
Unavailable
48
Hex. Flange Screw M6 x 20
711241861
Unavailable
49
Loctite 243, 10 ml
293800060
Unavailable
50
Not Available As Spare Part - Friction Washer
Unavailable
51
Grease, Super Lube
293550030
Unavailable
52
Solenoid Valve Gasket Set
711296375
Unavailable
53
Gasket Set Engine
711296372
Unavailable
