09- Rear Cargo Box

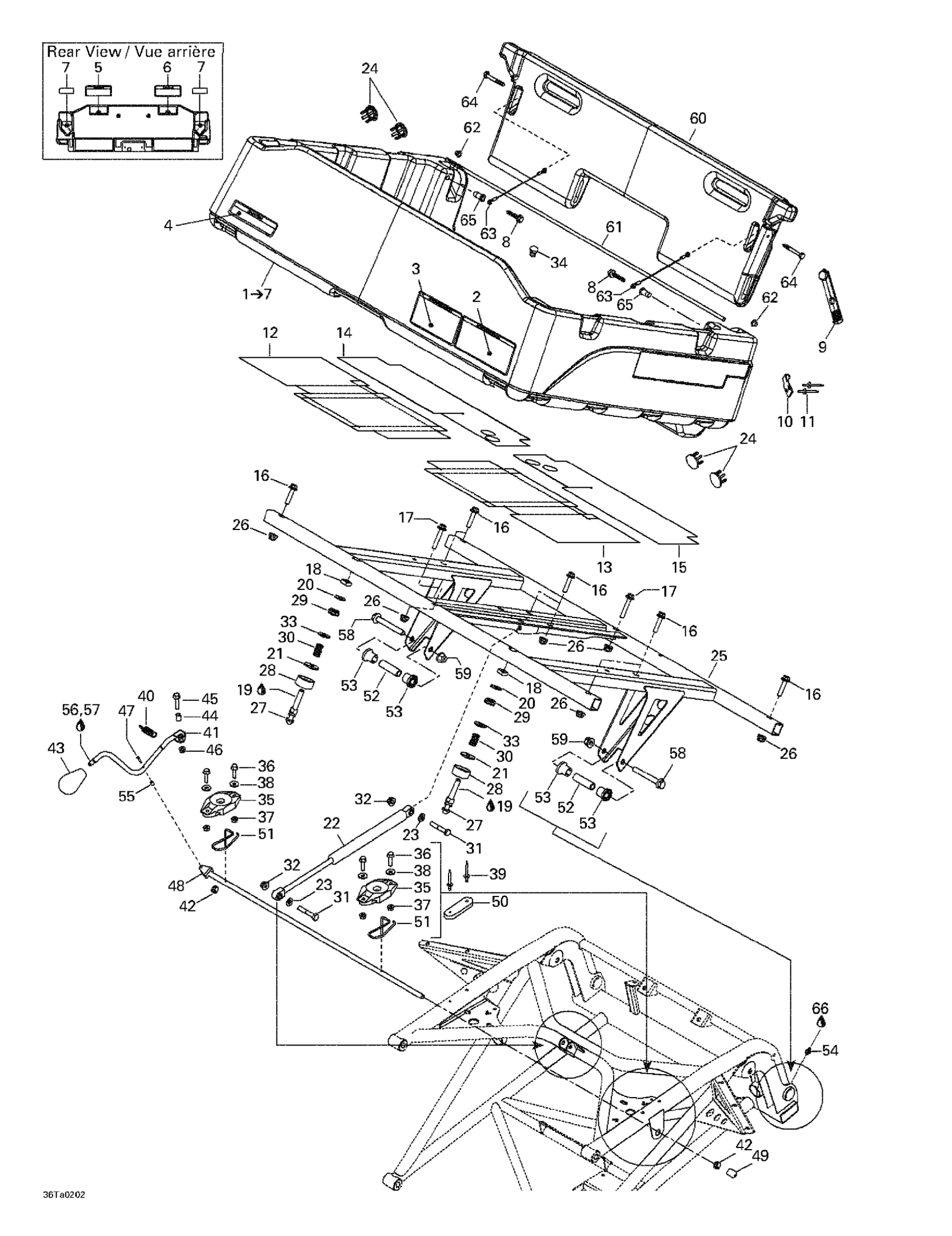

Can-Am Traxter XL, 7477, 2002 09- Rear Cargo Box Diagram
#
1
Box Kit (XL) | Includes 1 - 7.
703500158
Unavailable
2
Warning Label (English)
704900132
Unavailable
3
Warning Label (Tire Pressure)
704900133
Unavailable
4
Warning Label (English)
704900134
Unavailable
5
Warning Label (English)
704900137
Unavailable
6
Warning Label (English)
704900138
Unavailable
7
REAR REFLECTOR - Call your local BRP dealership
704900128
Unavailable
8
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
9
Panel Bracket
705000297
Unavailable
10
LATCH SUPPORT - Call your local BRP dealership
291000166
Unavailable
11
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
12
RH Heat Shield
705000313
Unavailable
13
LH Heat Shield
705000318
Unavailable
14
RH Heat Shield
705000316
Unavailable
15
LH Heat Shield
705000319
Unavailable
16
Hex. Flange Screw M8 X 30 | DS 650 X
207683044
Unavailable
17
Hex. Flange Screw M8 X 50
207685044
Unavailable
18
Square Nut M10
232802412
Unavailable
19
Loctite 243, 10 ml
293800060
Unavailable
20
Washer
503175800
Unavailable
21
WASHER - Call your local BRP dealership
506148100
Unavailable
22
Gas Shock
705000261
Unavailable
23
Flat Washer 8 mm
234081410
Unavailable
24
PROTECTOR CAP - Call your local BRP dealership
293000096
Unavailable
25
Box Support (Black)
705000244
Unavailable
26
Hex. Flange Elastic Nut M8
233281414
Unavailable
27
Stud Latch
291000664
Unavailable
28
Rubber Pad
293830025
Unavailable
29
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
30
Spring
705000307
Unavailable
31
Hex. Screw M8 X 45
207084544
Unavailable
32
Hex. Flange Elastic Nut M8
233281414
Unavailable
33
Flat Washer M10 | 4X4
250200014
Unavailable
34
Cap
705000323
Unavailable
35
Latch Base
708000034
Unavailable
36
Hex. Flange Screw M6 X 25
207662544
Unavailable
37
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
38
Flat Washer M6, Stainless
234062600
Unavailable
39
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
40
BREAK PEDAL SPRING - Call your local BRP dealership
705600098
Unavailable
41
Lever, black
705000253
Unavailable
42
SLEEVE - Call your local BRP dealership
705000292
Unavailable
43
LEVER BUTTON - Call your local BRP dealership
705500022
Unavailable
44
Sleeve
293900078
Unavailable
45
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
46
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
47
ROUND HEAD RIVET - Call your local BRP dealership
293150084
Unavailable
48
CENTRAL TUBE, BLACK - Call your local BRP dealership
705000289
Unavailable
49
CAP - Call your local BRP dealership
705000300
Unavailable
50
Rubber Support
705000299
Unavailable
51
SPRING - Call your local BRP dealership
705000259
Unavailable
52
Internal Bushing
706200061
Unavailable
53
Cushion
706200063
Unavailable
54
Grease Fitting
408200700
Unavailable
55
RING HOLDER - Call your local BRP dealership
705000305
Unavailable
56
Was 293800041 Loctite Primer 7649
219704458
Unavailable
57
Loctite 243, 10 ml
293800060
Unavailable
58
Hex. Flange Screw M10 X 75
207607546
Unavailable
59
Hex. Flange Elastic Nut M10
233201436
Unavailable
60
Panel
705000220
Unavailable
61
Pivot Tube, black
705000294
Unavailable
62
Pushnut Cap Type 3/8 | (7489) (7448 From S/N v000709)
250100026
Unavailable
63
PANEL CABLE - Call your local BRP dealership
705000296
Unavailable
64
PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership | (7448 Up to S/N v000708)
243164560
Unavailable
65
JACK NUT M6 - Call your local BRP dealership
732610057
Unavailable
66
Synthetic Grease, 400 G
293550010
Unavailable
