02- Air Intake Silencer

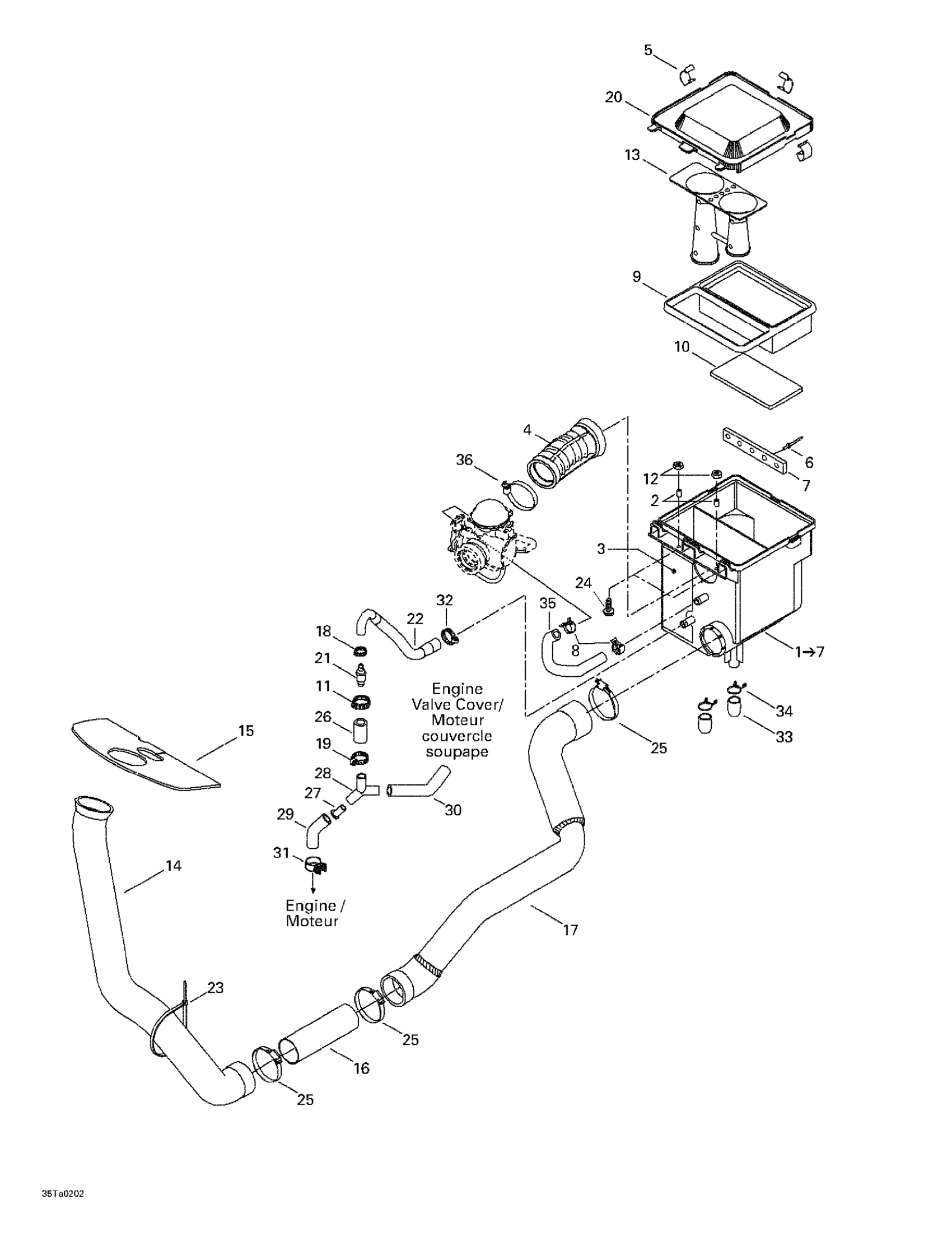

Can-Am Traxter XL, 7477, 2002 02- Air Intake Silencer Diagram
#
1
Air Intake Silencer Base
707800057
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Heat Protector
707800014
Unavailable
4
Intake Adaptor
707800051
Unavailable
5
Cover Bracket
707800013
Unavailable
6
Pop Rivet 3/16
293150030
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Norma Clamp
293650110
Unavailable
9
AIR FILTER - Call your local BRP dealership
707800002
Unavailable
10
Foam
707800015
Unavailable
11
Crimp Clamp
293650099
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
13
Air Intake Tube
707800012
Unavailable
14
Front Air Intake Tube
707800009
Unavailable
15
Deflector
707800020
Unavailable
16
Sleeve
707800011
Unavailable
17
Rear Air Intake Tube
707800034
Unavailable
18
Oetiker Clamp
293650012
Unavailable
19
Tridon Gear Clamp
293650051
Unavailable
20
Muffler cover
707800017
Unavailable
21
PCV Valve | 7400/7401. 7413/7414.
707800027
Unavailable
22
Vent Hose
707800045
Unavailable
23
Tie Wrap 368 mm
293750008
Unavailable
24
Hex. Flange Screw M6 X 20
207662044
Unavailable
25
Tridon Clamp
293650023
Unavailable
26
Vent Hose | 7415/7416. 7417/7418.
707800039
Unavailable
27
Fitting
711222590
Unavailable
28
Y Fitting
711874380
Unavailable
29
Formed Hose
711222600
Unavailable
30
Formed Hose
711222610
Unavailable
31
Gear Clamp
711251222
Unavailable
32
Tridon Gear Clamp
293650172
Unavailable
33
Drain Tube
707800006
Unavailable
34
Clip Retainer
707800005
Unavailable
35
Vent Hose
707800052
Unavailable
36
Gemi Clamp
293650158
Unavailable
