10- Electrical System

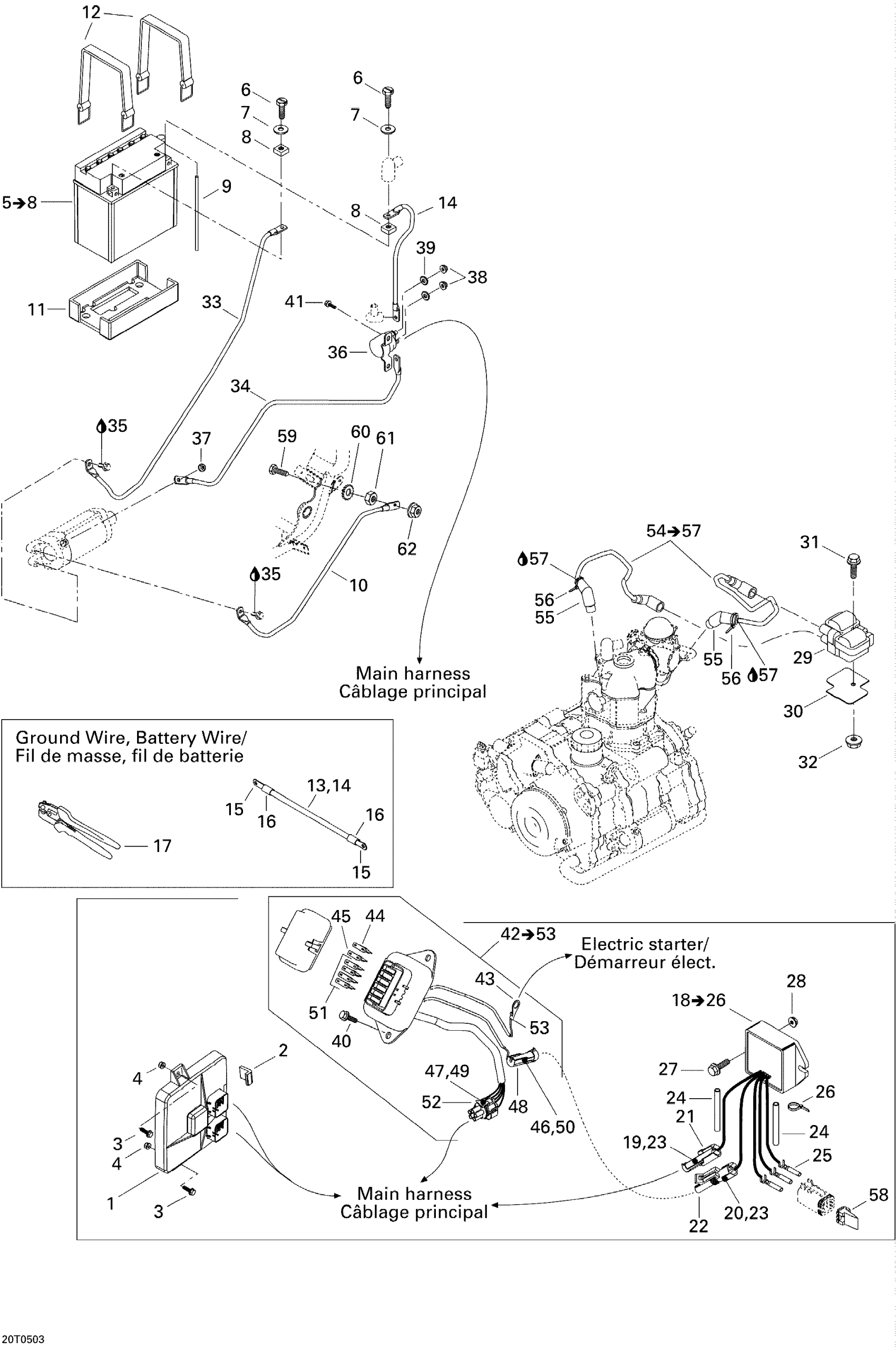

Can-Am Traxter XL, 2005 10- Electrical System Diagram
#
1
ELECTRONIC MODULE - Call your local BRP dealership
710000597
Unavailable
2
MODULE PROTECTOR - Call your local BRP dealership
278001166
Unavailable
3
Hex. Flange Screw M6 X 20
207662044
Unavailable
4
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
5
Battery 19A | Includes 5 to 8
278001756
Unavailable
6
Hex. Screw M6 X 16
207161644
Unavailable
7
FLAT WASHER 6 MM - Call your local BRP dealership
211200018
Unavailable
8
Hex. Nut M6
232061414
Unavailable
9
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
10
Battery Ground Cable
710000022
Unavailable
11
LOWER BATTERY PAD - Call your local BRP dealership
278001976
Unavailable
12
Retainer Strap
293850097
Unavailable
13
Ground Cable Battery, no 6, meter)
278001680
Unavailable
14
Cable Battery, no 6, meter)
278001690
Unavailable
15
Terminal 45°, Small Hole
278001682
Unavailable
15
TERMINAL 45, SMALL HOLE - Call your local BRP dealership
278001683
Unavailable
15
TERMINAL 90, SMALL HOLE - Call your local BRP dealership
278001684
Unavailable
15
FLAT TERMINAL, BIG HOLE - Call your local BRP dealership
278001685
Unavailable
15
TERMINAL 45, BIG HOLE - Call your local BRP dealership
278001686
Unavailable
15
TERMINAL 90, BIG HOLE - Call your local BRP dealership
278001687
Unavailable
15
FLAT TERMINAL - Call your local BRP dealership
278001688
Unavailable
15
Terminal 30°, 2 Holes
278001776
Unavailable
16
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
17
Crimp Plier
529035730
Unavailable
18
Volt Regulator Ass'y | Includes 18 to 26
710000169
Unavailable
19
Male Terminal | XT Models
278000222
Unavailable
20
Female Terminal
278000223
Unavailable
21
Female Housing, 1 Circuit
278000161
Unavailable
22
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
23
Wire Seal
278000218
Unavailable
24
LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership
409901300
Unavailable
25
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
26
Tie Wrap 94 mm | 4X4
293750001
Unavailable
27
Hex. Flange Screw M6 X 20
207662044
Unavailable
28
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
29
Ignition Coil
278001546
Unavailable
30
Insulator Pad
710000073
Unavailable
31
Hex. Flange Screw M6 X 50
207665044
Unavailable
32
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
33
Engine Ground Cable
710000211
Unavailable
34
STARTER POSITIVE CABLE - Call your local BRP dealership
710000136
Unavailable
35
Loctite 243, 10 ml
293800060
Unavailable
36
Starter Relay
515176011
Unavailable
37
Hex. Elastic Stop Nut M6
232561600
Unavailable
38
Hex. Nut M6
232061414
Unavailable
39
Lock Washer Helical M6
234161601
Unavailable
40
Hex. Forming Screw M6 X 10
210261050
Unavailable
41
Hex. Self-threaded Screw 1/4"-20 X 3/4"
250000061
Unavailable
42
FUSE HOLDER ASS'Y - Call your local BRP dealership | Includes 42 to 53
710000579
Unavailable
43
Open Barrel Terminal
278001392
Unavailable
44
Fuse, 30 Amperes
410917200
Unavailable
45
Fuse, 20 Amperes
409003900
Unavailable
46
Male Terminal
409004300
Unavailable
47
Female Terminal
409007300
Unavailable
48
Female Housing, 1 Circuit
278000161
Unavailable
49
Wire Seal
278000218
Unavailable
50
Wire Seal
710000048
Unavailable
51
Fuse, 15 Amperes
278000343
Unavailable
52
Female Housing, 5 Circuit
710000106
Unavailable
53
SHRINK TUBING - Call your local BRP dealership
710000482
Unavailable
54
Ens Fil Bougie *Wire-Spark Kit | Includes 54 to 57
703500744
Unavailable
55
Spark Plug Connector
420265248
Unavailable
56
Tie Wrap 94 mm | 4X4
293750001
Unavailable
57
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
58
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
59
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
60
External Serrated Lock Washer 6 mm
234461608
Unavailable
61
Hex. Nut M6
232061414
Unavailable
62
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
