10- Electrical Accessories

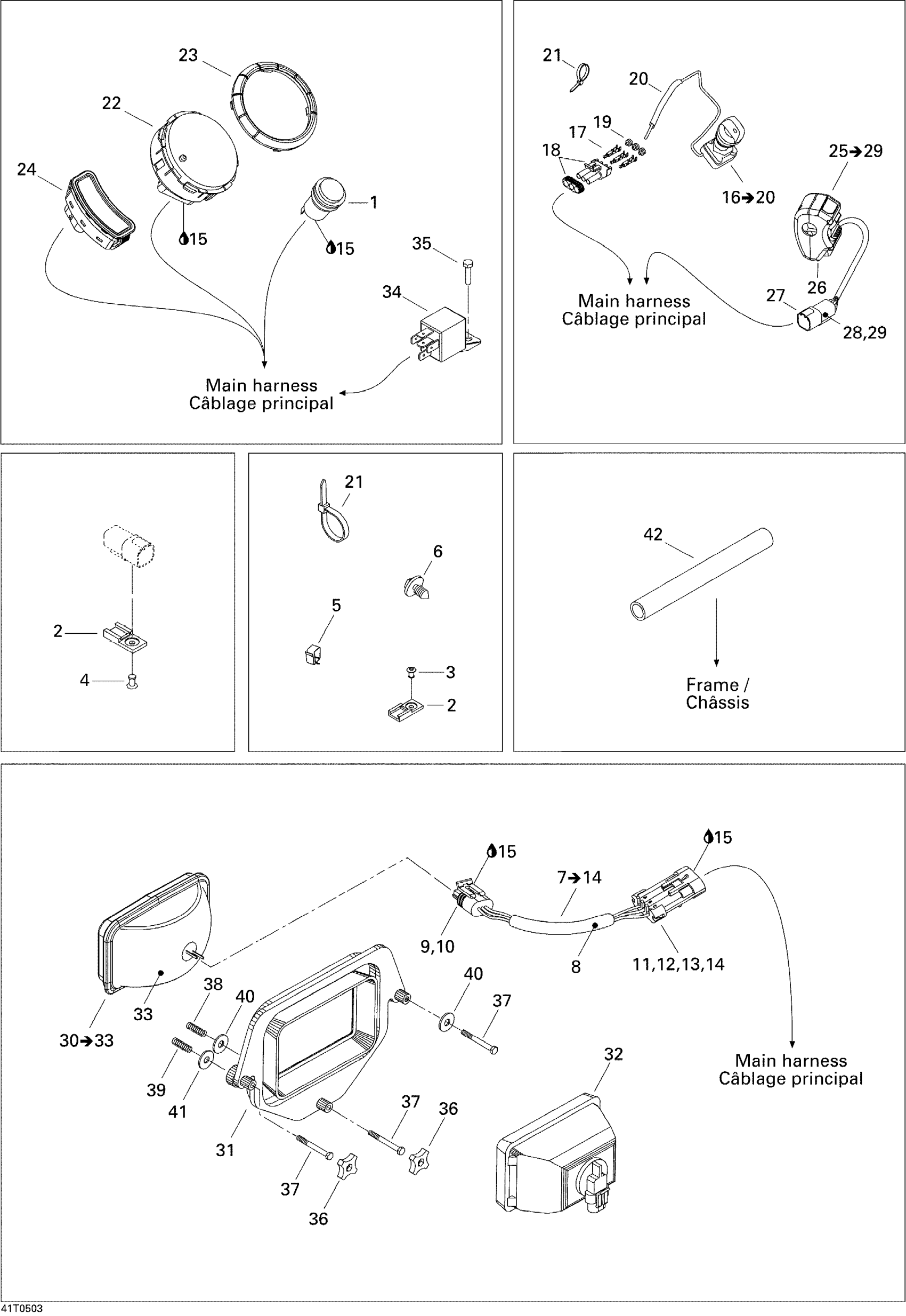

Can-Am Traxter XL, 2005 10- Electrical Accessories Diagram
#
1
Outlet Power Kit, 12 Volts
861507200
Unavailable
2
Clip
270000141
Unavailable
3
Pop Rivet 3/16"
390402400
Unavailable
4
Pop Rivet 3/16"
390402200
Unavailable
5
Clip
414227300
Unavailable
6
Mount Dart
293730040
Unavailable
7
Beam Adaptor Ass'y | Includes 8 to 15
710000720
Unavailable
8
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
9
Female Terminal
278001114
Unavailable
10
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
278001467
Unavailable
11
Seal
710000643
Unavailable
12
Lock
710000642
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
16
Ignition Switch Ass'y | Includes 17 to 21
710000192
Unavailable
16
BLANK KEY (B TYPE) - Call your local BRP dealership
710000101
Unavailable
17
Female Terminal
278000223
Unavailable
18
Male Housing, 3 Circuits
278000273
Unavailable
19
Wire Seal
278000218
Unavailable
20
Protector Tube
710000171
Unavailable
21
Tie Wrap 368 mm
293750008
Unavailable
21
Tie Wrap 142 mm
293750002
Unavailable
21
Tie-Rap 180 mm
414115200
Unavailable
22
Speedometer
710000674
Unavailable
23
TRIM RING - Call your local BRP dealership
710000353
Unavailable
24
LH WARNING LIGHT - Call your local BRP dealership
710000592
Unavailable
25
Multi-Fonction Switch | Includes 25 to 29
710000015
Unavailable
26
BACK COVER - Call your local BRP dealership
710000173
Unavailable
27
Male Terminal Housing, 6 Circuits
409015200
Unavailable
28
Male Lock, 6 Circuits
409014600
Unavailable
29
MALE TERMINAL - Call your local BRP dealership
409014800
Unavailable
30
HEADLAMP ASS'Y - Call your local BRP dealership | Includes 31 to 34
710000174
Unavailable
31
LAMP SUPPORT - Call your local BRP dealership
705000283
Unavailable
32
LAMP HOUSING - Call your local BRP dealership
705000284
Unavailable
33
BULB - Call your local BRP dealership
710000176
Unavailable
34
Relay | DS 650 X
710010053
Unavailable
35
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
210251180
Unavailable
36
Handle
572106600
Unavailable
37
HEX. SCREW K40 X 40 - Call your local BRP dealership
250000008
Unavailable
38
SPRING - Call your local BRP dealership
710000285
Unavailable
39
Spring
517168600
Unavailable
40
Flat Washer 4 mm, Stainless
234042600
Unavailable
41
Flat Washer 4 mm
234040600
Unavailable
42
Tubing 10 MM 1000MM Long
219704407
Unavailable
42
Tubing 25 MM 1000MM Long
219704402
Unavailable
