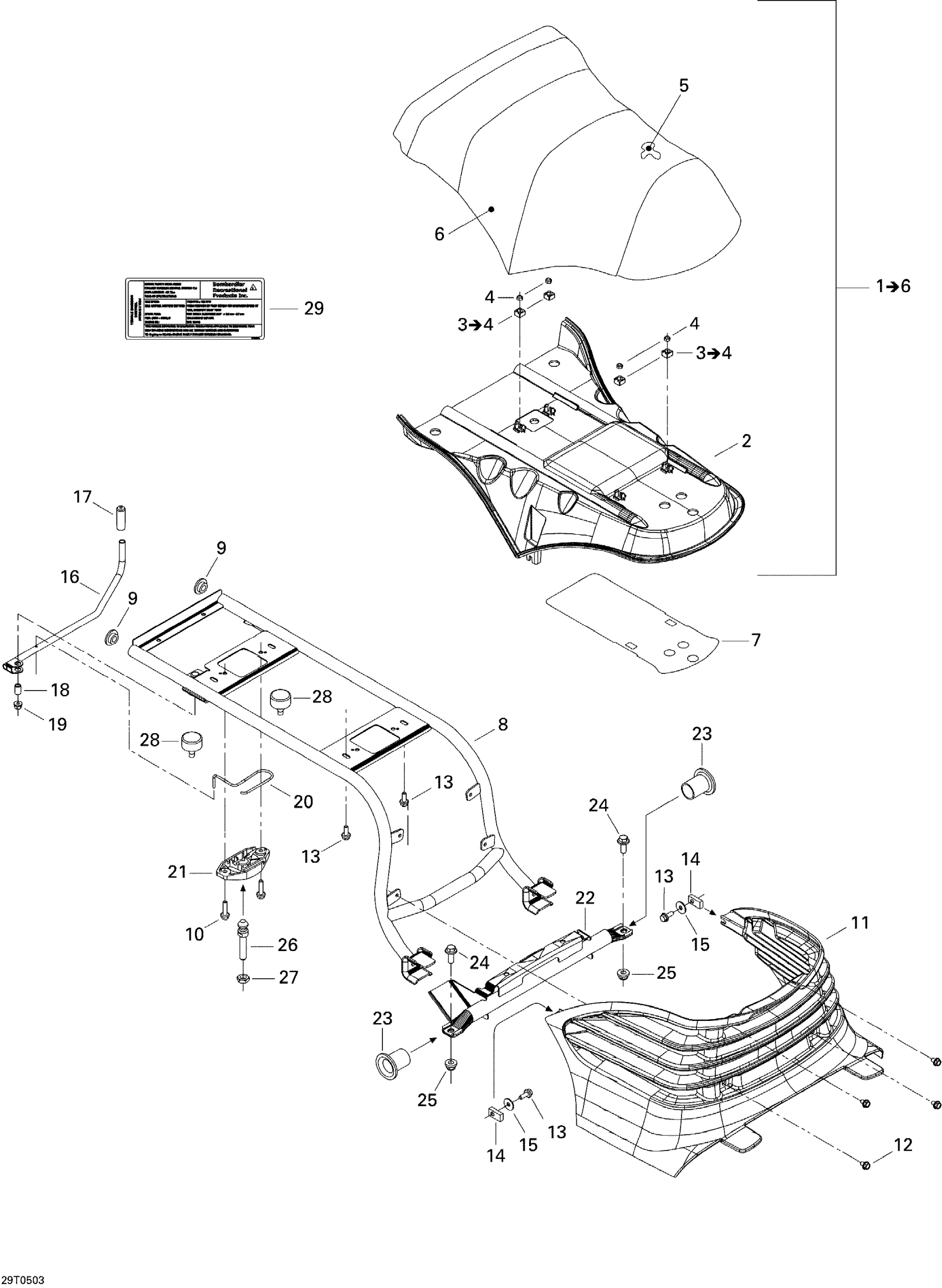

Can-Am Traxter XL, 2005 09- Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 to 6

708000288

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Seat Cover

708000290

Unavailable

7

Reflective Sheet

708000434

Unavailable

8

Seat Support, black

708000386

Unavailable

9

Grommet

705003932

Unavailable

10

Hex. Flange Screw M6 X 25

207662544

Unavailable

11

MOTOR COVER - Call your local BRP dealership

708000276

Unavailable

12

Hex. Forming Screw M6 X 10

210261050

Unavailable

13

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

14

Nut Housing M6

708000042

Unavailable

15

Flat Washer

224061201

Unavailable

16

Lever, Black

708000074

Unavailable

17

Vinyl Cap, Black

708000087

Unavailable

18

Sleeve

293900078

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

20

SPRING - Call your local BRP dealership

708000073

Unavailable

21

Latch Base

708000034

Unavailable

22

Seat Pivot, Black

708000044

Unavailable

23

SEAT BUSHING - Call your local BRP dealership

708000019

Unavailable

24

Hex. Flange Screw M8 X 20

207682046

Unavailable

25

Hex. Elastic Flange Nut M8

233281416

Unavailable

26

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

27

Hex. Jam Nut M10

232100600

Unavailable

28

Rubber Stopper

708000758

Unavailable

29

Emission Label

704900876

Unavailable
